Produktbeschreibung

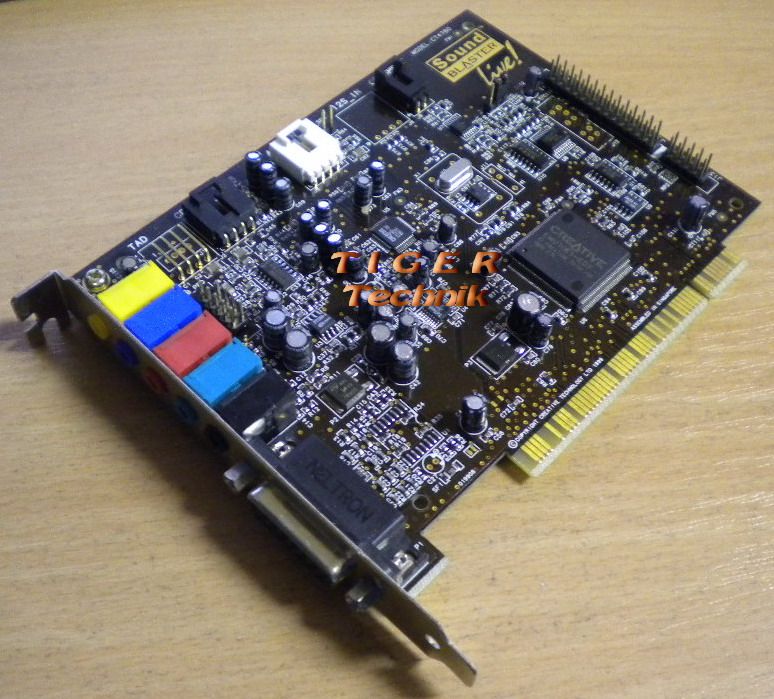

Creative CT4780 PCI Sound Blaster Live
Technische Daten
General Features
Creative Labs Sound Blaster Live! Model CT4780, OEM for Dell, part number 181UR.
PCI Specification Version 2.1 compliant
32-bit digital processing
64-voice hardware wavetable synthesizer
Creative Multi Speaker SurroundTM (CMSSTM) Multi-speaker technology
Audio Inputs
One line-level analog Line input via stereo jack on rear bracket
One mono Microphone analog input via stereo jack on rear bracket
CD_IN line-level analog input via 4-pin Molex connector on card
AUX_IN line-level analog input via 4-pin Molex connector on card
TAD line-level analog input via 4-pin Molex connector on card
CD_SPDIF digital input via 2-pin Molex connector on card, accepting sampling rates of 32, 44.1 and 48 kHz.
Audio Outputs
Two line-level analog outputs via stereo jacks on rear bracket, Front and Rear Line-Outs
Stereo headphone (32-ohm load) support on Front Line-Out
Interfaces
MB_PRO 2x5 pin header
PC_SPK 1x2 pin header
AUD_EXT 2x20 pin header
DIGITAL OUT jack
MIDI/Joystick connector, external, DB15S
Lieferumfang
Creative CT4780 PCI - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
