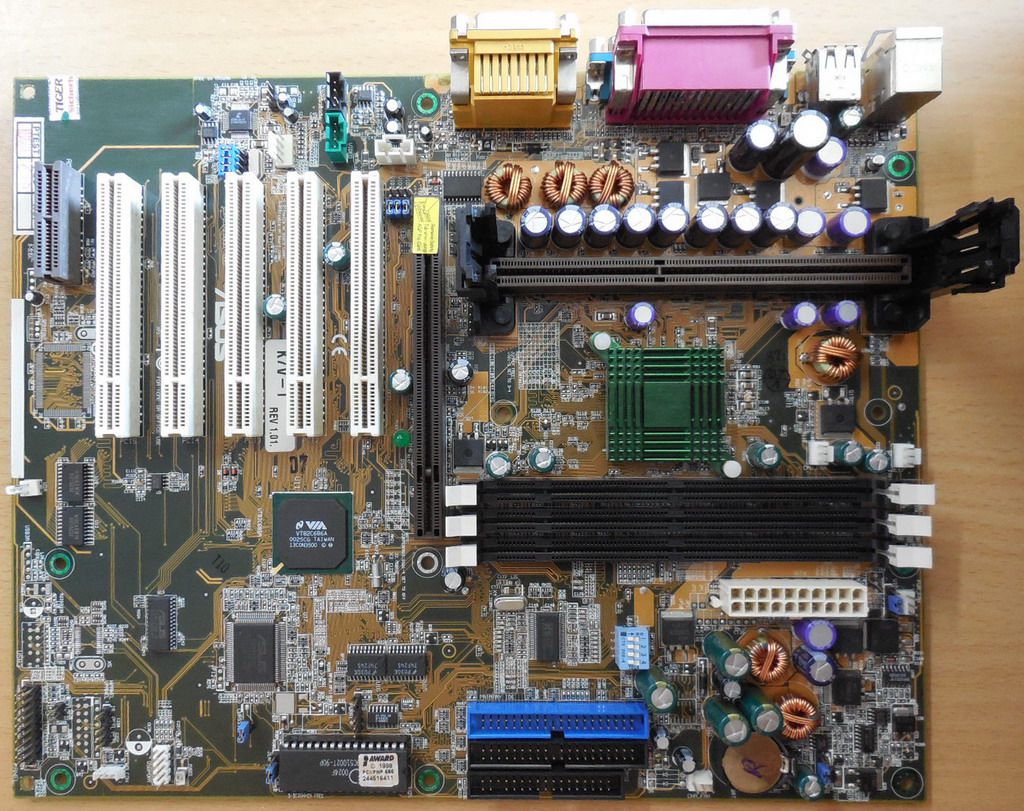

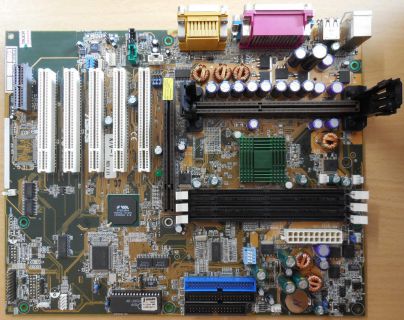

Asus K7V-T Rev1.01 Mainboard + Blende AMD Slot A VIA KX133 SDRAM AGP Audio* m957

Asus K7V-T Rev1.01 Mainboard + Blende AMD Slot A VIA KX133 SDRAM AGP Audio

Technische Daten

CPU Sockel       Slot A

Kompatible Prozessoren       AMD Athlon

Supports the K7, K75 and Thunderbird cores of the AMD Athlon™ processors - including  1GHz - designed for the AMD Athlon™ Processor Module (242-pin Slot A). The K7 and K75 core processors come with 512KB L2 cache, while the Thunderbird core processors come with 256KB on-chip L2 cache.

FSB       200/133MHz or 200/100MHz Synchronous Host / DRAM Clock Support

CPU frequency can operate at 200MHz while system memory operates at 133MHz or 100MHz

Chipsatz       VIA KX133 (VT8371) Northbridge / VT82C686A Southbridge

VIA VT8371™ system controller supports a 200MHz Front Side Bus (FSB), supports up to 1.5GB of PC133/PC100 SDRAM/Virtual Channel Memory (VCM) SDRAM, complies with AGP 2.0 specifications for 4X, 2X, and 1X AGP modes and PCI 2.2. bus interface with support for 5 PCI masters. It is optimized to deliver enhanced AMD Athlon™ processor system performance.

VIA  VT82C686A  PCIset  with  PCI  Super  I/O integrated peripheral controller supports UltraDMA/66, which allows burst mode data transfer rates of up to 66.6MB/sec.

Speicher RAM

Equipped with 3 DIMM sockets to support PC133/PC100-compliant SDRAMs or VCM SDRAMs (16, 32, 64, 128, 256, 512MB) up to 1.5GB Max.

Slots

1 x AGP Pro slot (Supports an Accelerated Graphics Port/AGP Pro card for high performance component level interconnect targeted at 3D graphical display applications using 4X, 2X or 1X mode bus.)

5 x PCI slots v2.2 (PCI supports up to 133MB/sec maximum throughput. Each PCI slot can support a Bus Master PCI card, such as a SCSI card.)

1 x AMR slot (AMR Slot: Audio Modem Riser (AMR) slot supports a very affordable audio and/or modem riser card.)

USB

Supports up to 4 USB ports, two on the back panel and two midboard for more peripheral connectivity options.

On-Board IDE

Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices on two channels. Supports UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2 and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.

Audio

Hardware AC’97 V2.1 CODEC compliant, 3D sound circuitry,sample rate conversion from 7kHz to 48kHz

Interne Anschlüsse

1 x CPU FAN (3-pin) / 1 x F_FAN (3-pin) / 1 x Power FAN (3-pin) / 1 x Chassis FAN (3-pin)

1 x Diskettenlaufwerk-Controller

2 x IDE-Ports

1 x AUX-IN (weiß) / 1 x CD-IN (schwarz) / 1 x Modem / 1 x Video (grün)

1 x Thermal-Sensor connector

1 x Headphone True-Level Line Out Header

1 x MIC2 connector

1 x On-Board Audio Setting Header

1 x WOR connector / 1 x WOL connector

1 x USB Header

1 x System Panel

1 x IrDA connector

1 x Chassis Intrusion Jumper

1 x JumperFree mode Jumper

1 x 20-pin ATX Power connector

1 x I/O Voltage Setting connector

1 x CPU Core Voltage Setting (VID) header

1 x DSW Switch External Frequency Setting

1 x CMOS Jumper

Rückseite Anschlüsse

1 x PS/2 Tastatur

1 x PS/2 Maus

2 x Seriell (COM A/B)

1 x Parallel (LPT)

1 x Gameport

2 x USB

1 x Line-In / 1 x Line-Out / 1 x Mic

Performance

Concurrent PCI allows multiple PCI transfers from PCI master buses to memory to CPU.

This motherboard supports a new generation memory, NEC’s 64Mb Virtual Channel Memory (VCM) Synchronous Dynamic Random Access Memory (SDRAM), which is compatible to the industry standard SDRAM. The VCM’s core design provides up to 50% higher SDRAM speed at reduced power consumption of about 30%. This motherboard also supports standard SDRAM, which increases the data transfer rate (1.064GB/s max using PC133-compliant SDRAMs and 800MB/s max using PC100-compliant SDRAMs).

Intelligence (only with optional hardware monitor)

Fan Status Monitoring and Alarm

To prevent system overheat and systemdamage, the CPU, power supply, and system fans can be monitored for RPM and failure. All the fans are set for its normal RPM range and alarm thresholds.

Voltage Monitoring and Alert

Processor and system voltage levels are monitored to ensure stable current to critical motherboard components. Voltage specifications are more critical for future processors, so monitoring is necessary to ensure proper system configuration and management.

Auto Fan Off

The system fans will power off automatically even in sleepmode. This function reduces both energy consumption and system noise, and is an important feature to implement silent PC systems

Remote Ring On (requires modem)

This allows a computer with this motherboard to be turned on remotely through an internal or external modem. With this feature, users can access their computer from anywhere in the world!

BIOS

Smart  BIOS

2Mb  firmware  gives  a  new  easy-to-use  interface  that  provides more control and protection over the motherboard. Provides CPU/SDRAM frequency adjustments, and HD/SCSI/ZIP/CD/Floppy/Network boot selection.

Enhanced ACPI & Anti-Boot Virus BIOS

Programmable BIOS (Flash EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in firmware-based virus protection, and autodetection of most devices for virtually automatic setup.

JumperFree™ Mode

Allows processor settings and easy overclocking of frequency and Vcore voltage all through BIOS setup when JumperFree™ mode is enabled. Easy-to-use DIP switches instead of jumpers are included to allow manual adjustment of the processor’s external frequency.

Desktop Management Interface (DMI)

Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.)

ACPI Ready

ACPI (Advanced Configuration and Power Interface) provides more Energy Saving Features for future operating systems (OS) supporting OSDirect  Power  Management  (OSPM)  functionality. With these features implemented in the OS, PCs can be ready around the clock, yet satisfy all the energy saving standards. To fully utilize the benefits of ACPI, an ACPI-supported OS, such as Windows 98, must be used

New Compliancy

Both the BIOS and hardware levels of the motherboard meets PC 99 compliancy. The new PC 99 requirements for systems and components are based on the following high-level goals

Support for Plug and Play compatibility and power management for configuring and managing all system components, and 32-bit device drivers and installation procedures for Windows 95/98/NT.

Sonstiges

Thermal Sensor Connector with Optional Sensor

Accurately detects the CPU temperature with the ASUS Smart Fan when connected to an ASUS P2T-Cable.

Super Multi-I/O

Provides two high-speed UART compatible serial ports andone parallel port with EPP and ECP capabilities.

Wake-Up Support

Supports Wake-On-LAN and Wake-On-Ring.

Color-coded Connectors

To enhance user accessibility to system components and to meet PC 99 compliancy, major connectors in this motherboard are color-coded.

Infrared Interface

Integrated Serial Infrared interface supports an optional remote control package for wireless interfacing with external peripherals, personal gadgets, or an optional remote controller.

PC Health Monitoring

Provides an easy way to examine and manage systemstatus information, such as CPU and system voltages, temperatures, and fan status through the onboard hardware ASIC and the bundled ASUS PC Probe

Formfaktor

ATX Größe; ca. 305mm x 245 mm

Lieferumfang

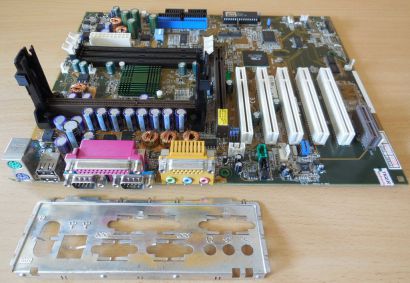

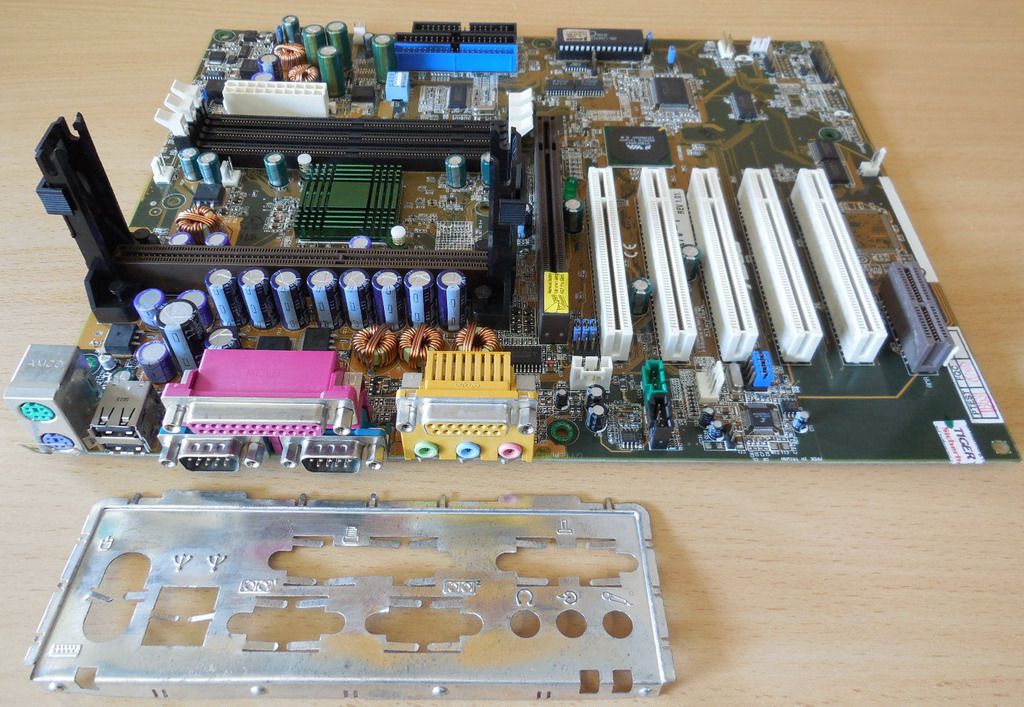

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
