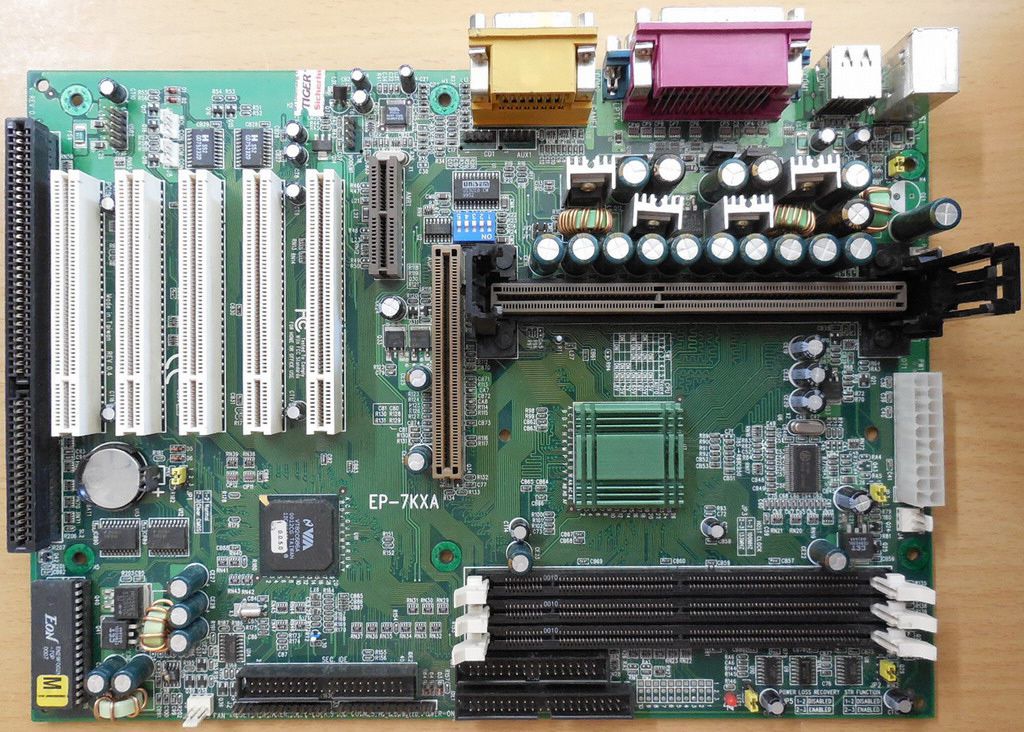

EPoX EP-7KXA Rev0.4 Mainboard +Blende AMD Slot A VIA KX133 SDRAM 1x ISA AGP*m956

EPoX EP-7KXA Rev 0.4 Mainboard + Blende AMD Slot A VIA KX133 SDRAM 1x ISA AGP

Technische Daten

CPU Sockel       Slot A

Kompatible Prozessoren       AMD Athlon (Argon, Pluto, Orion, Thunderbird*)

*Thunderbird only up to 800MHz

FSB       200MHz

Chipsatz       VIA KX133 (VT8371) / VT82C686A

NB/SB interconnection via PCI with 133 MB/s

Supports FSB 200 (100 MHz DDR)

Supports Advanced Configuration and Power Interface (ACPI)

Supports Universal Serial Bus (USB 1.1)

Supports up to AGP 4x (AGP 1.0/2.0, 3.3V/1.5V)

Supports PCI v2.2

Supports IDE/PATA with up to UDMA66

Supports hardware monitoring and Super I/O

Speicher RAM

3 x 168-Pin DIMM sockets supporting SDRAM / VCSDRAM (VCM)

Supports up to 3 DIMMs PC100/133

Supports up to 512MB DIMMs

Supports max. 1,5GB RAM

Supports ECC

Slots

1 x AGP 4X slot

1 x ISA slot

5 x PCI slots v2.2

1 x AMR slot

USB

2x USB-1.1-Ports hinten, 2x zusätzlich durch 1x USB1.1-Header OnBoard

Audio

VT82C686A integrated VIA AC'97 audio controller

VIA VT1611A AC'97 audio codec

AC'97 2.1 compliant

Interne Schnittstellen

1 x CPU FAN (3-pin) / 1 x Power FAN (3-pin) / 1 x Chassis FAN (3-pin)

1 x Diskettenlaufwerk-Controller

2 x Standard-IDE-Ports kompatibel mit ATA-66; bis zu 4x IDE Laufwerke

1 x AUX-IN / 1 x CD-IN / 1 x Modem-IN

1 x WOL connector / 1 x WOM connector

1 x USB1.1 Header

1 x System Panel Leiste with IrDA TX/RX

1 x 20-pin ATX Power connector

Backpanel Schnittstellen

1 x PS/2 Tastatur

1 x PS/2 Maus

2 x Seriell (COM A/B)

1 x Parallel (LPT)

1 x Gameport

2 x USB1.1

1 x Line-In / 1 x Line-Out / 1 x Mic

Bios

2 MBit Flash EEPROM (DIP32)

Award Modular BIOS v6.00PG

Supports Plug-and-Play (PNP), Advanced Power Management (APM), Advanced Configuration and Power Interface (ACPI), Desktop Management Interface (DMI)

Sonstiges

VIA VT82C686A southbridge integrated hardware monitoring and Super I/O

IC-Works (Cypress) W210H clock generator (PLL)

Unisem US3018 LDO controller

Formfaktor

ATX Größe; ca. 305mm x 245 mm; 7 mounting holes

Lieferumfang

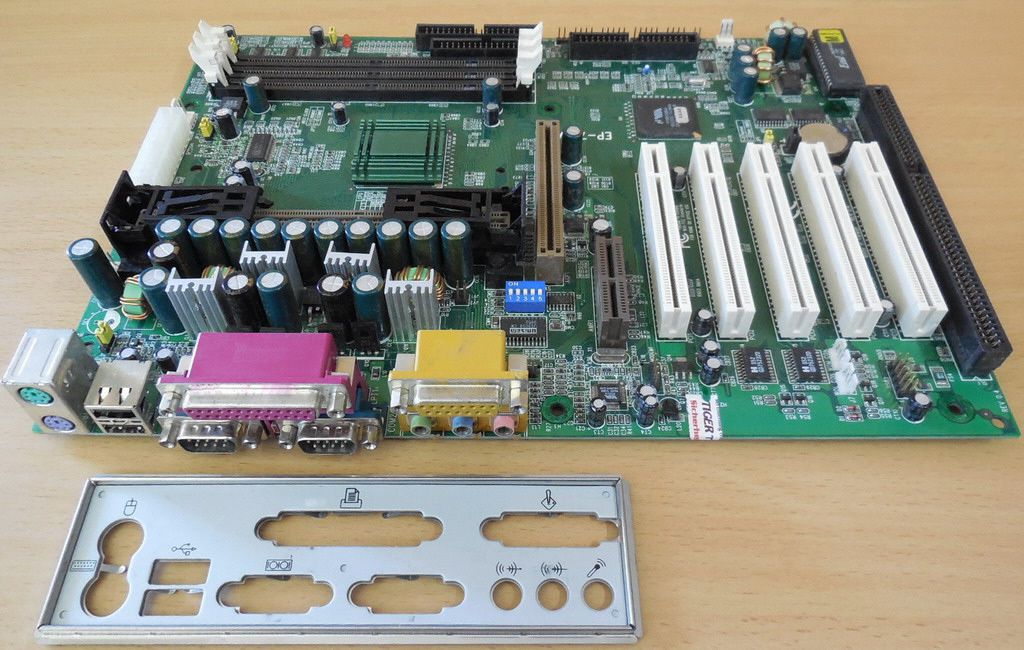

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
