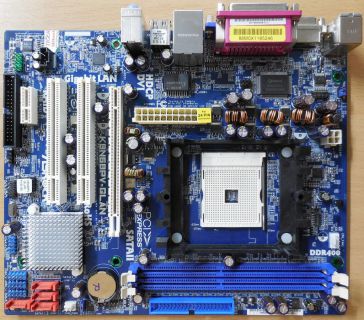

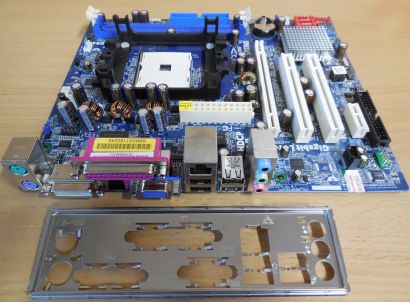

ASRock K8N68PV-GLAN Rev1.02 Mainboard NEU OVP Sockel 754 PCIe DDR VGA Sound*m826

ASRock K8N68PV-GLAN Rev1.02 Mainboard NEU OVP Sockel 754 PCIe DDR VGA Sound

Technische Daten

CPU

Socket 754 for AMD Athlon™ 64 and Sempron Processors

Supports AMD's Cool 'n' Quiet Technology; Untied Overclocking Technology; Hyper-Transport Technology

Chipset capable to FSB 1000MHz (2.0 GT/s)

Chipset

NVIDIA® GeForce 7050 / nForce 630A MCP

Memory

2 x DDR DIMM slots

Supports DDR400/333/266 non-ECC, un-buffered memory

Max. capacity of system memory: 2GB

BIOS

4Mb AMI BIOS

AMI Legal BIOS

Supports "Plug and Play"; Jumperfree

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

Graphics

Integrated NVIDIA® GeForce7 Series (NV44)

DX9.0 VGA, Pixel Shader 3.0

Max. shared memory 256MB

Supports DVI with max. resolution up to 1920x1200 @ 75Hz; Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz

Two graphics output options: Support DVI-D and D-Sub ports by independent display controllers

Supports HDCP function with DVI-D port

NVIDIA® PureVideo™ Ready

Audio

5.1 CH High Definition Audio (Realtek ALC662 Audio Codec)

Chipset embedded HDMI Audio

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Realtek RTL8211B

Supports Wake-On-LAN; Supports PXE

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Connector

4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and Hot Plug functions

*This mainboard does not support RAID with HDDs of 3TB and above.

1 x ATA133 IDE connector (supports 2 x IDE devices)

1 x Floppy connector

1 x DeskExpress Hot Plug Detection header

1 x COM Port header

CPU/Chassis FAN connector

24 pin ATX power connector

4 pin 12V power connector

CD in header

Front panel audio connector

4 x USB 2.0 headers (support 8 USB 2.0 ports)

Rear Panel I/O

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x VGA/D-Sub Port

1 x VGA/DVI-D Port

1 x Parallel Port (ECP/EPP support)

4 x Ready-to-Use USB 2.0 Ports

1 x RJ-45 Port

HD Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.)

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories

Quick Installation Guide, Support CD, I/O Shield, Floppy/ATA 133 Cables, 1 x SATA Data Cable, 1 x SATA 1 to 1 Power Cable

Hardware Monitor

CPU Temperature Sensing

Chassis Temperature Sensing

CPU Fan Tachometer

Chassis Fan Tachometer

CPU Quiet Fan

Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

OS

Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications

FCC, CE

Lieferumfang

Mainboard mit Zubehör laut Handbuch * NEU & OVP *

Abbildung ähnlich
