ASRock K8NF4G-SATA2 Rev1.04 Mainboard +Blende Sockel 754 PCIe VGA LAN Audio*m375

ASRock K8NF4G-SATA2 Rev 1.04 Mainboard + Blende

Sockel 754 PCIe VGA LAN Audio

Technische Daten

CPU

- Socket 754 for AMD Athlon™ 64 and Sempron processors
- Supports AMD's Cool 'n' Quiet Technology
- Chipset capable to FSB 1 GHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology

Chipset

- Northbridge: NVIDIA® GeForce 6100
- Southbridge: NVIDIA® nForce 410 MCP

Memory

- 2 x DDR DIMM slots
- Supports DDR400 / 333 / 266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB

BIOS

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support

Graphics

- Integrated NV44 graphics DX9.0 VGA
- Pixel Shader 3.0
- Max. shared memory 128MB

Audio

- Realtek ALC850 7.1 channel AC'97 audio codec

LAN

- Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE

Slots

- 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 1 x AMR slot

Connector

- 2 x SATA2 3.0 Gb/s connectors, support RAID 0, 1, JBOD (No support for Hot Plug function)
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O

ASRock 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature

Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)

Form Factor

- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

OS

- Microsoft® Windows® 2000 / XP / XP 64-bit compliant

Certifications

- FCC, CE

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

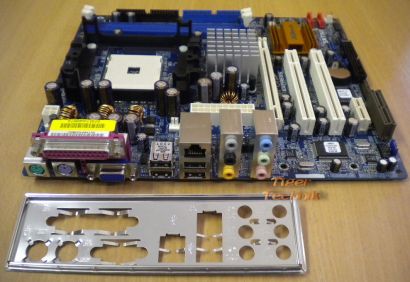

Abbildung ähnlich
