ASRock K8Upgrade-1689 Rev 1.02 Mainboard +Blende Sockel 754 CPU PORT AGP 8X*m612

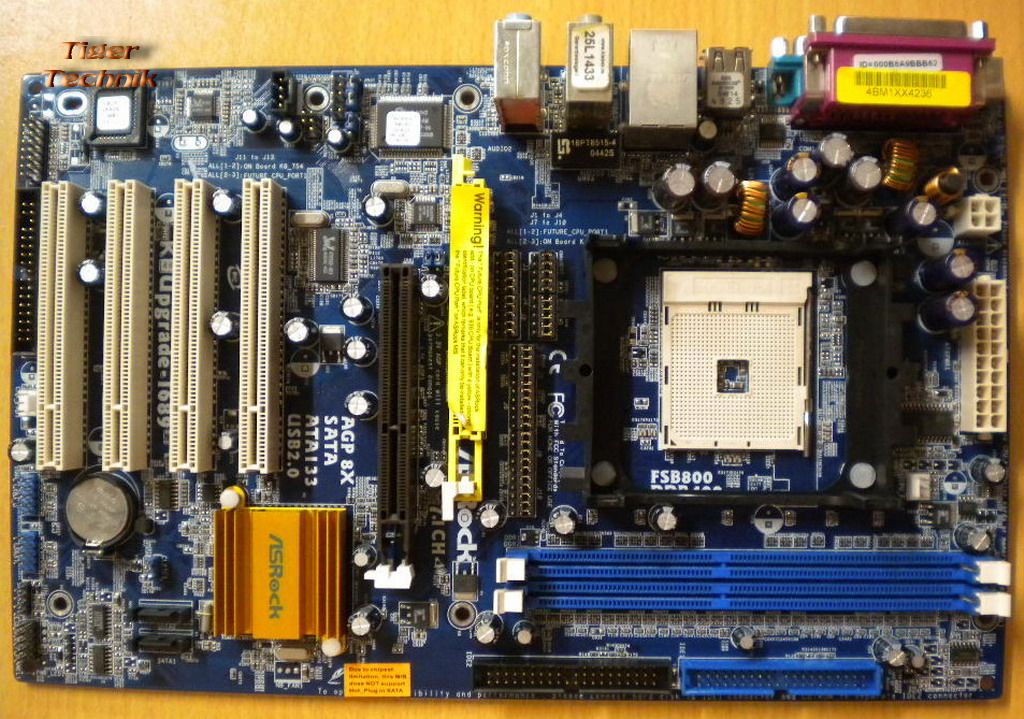

ASRock K8Upgrade-1689 Rev 1.02 Mainboard + Blende

Sockel 754 mit Future CPU Port für CPU Upgrade-Karten(nicht im Lieferumfang)

Technische Daten

CPU

- Socket 754 for AMD 64-bit Athlon 64 and Sempron processor

- Supports Hyper-Transport Technology

- Supports AMD Cool 'n' Quiet Technology

- FSB 800MHz / 1.6GT/s

Chipset

- Integrated Single Chip: ULi(ALi) 1689 (Capable Of Supporting FSB1000MHz / 2GT/s CPU)

Memory

- 2 x DDR DIMM slots

- Supports DDR400 non-ECC, un-buffered memory

- Max. capacity of system memory: 2GB

BIOS

- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP

Audio

- Realtek 850 7.1 channel AC'97 audio codec

LAN

- Realtek RTL8201 10/100 Ethernet LAN PHY

- 802.3u, WOL supported

- Supports PXE

Slots

- ASRock Future CPU Port(Yellow-colored): Flexible Socket 939 upgrade interface for ASRock 939CPU Board

- 1 x AGP8X/4X slot , 1.5V

- 4 x PCI slots( PCI 2.2 compliance)

Connector

- 2 x SerialATA 1.5Gb/s connectors supports RAID,0,1,JBOD

- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- 4 pin ATX 12V power connector

- IDE LED connector

- CD audio in header

- Front panel audio connector

- 2 x USB 2.0 port pin header

Rear Panel I/O

ASRock 8CH I/O

- 4 x USB2.0 ports

- 1 x RJ45 LAN port

- 1 x Serial port (COM1)

- 1 x PS2 Keyboard connector

- 1 x PS2 Mouse connectors

- 1 x Parallel port (LPT1)

- 2 x Audio ports ( Line In/Out, Mic In)

Unique Feature

Hybrid Booster:

- CPU Frequency Stepless control

- CPU Multiplier

- ASRock U-COP

- Boot Failure Guard (B.F.G)

Form Factor

- ATX, 305mm x191mm

OS

- Microsoft® Windows® 98SE/ME/2000/XP/XP 64-bit compliant

Certifications

- FCC, CE

Lieferumfang

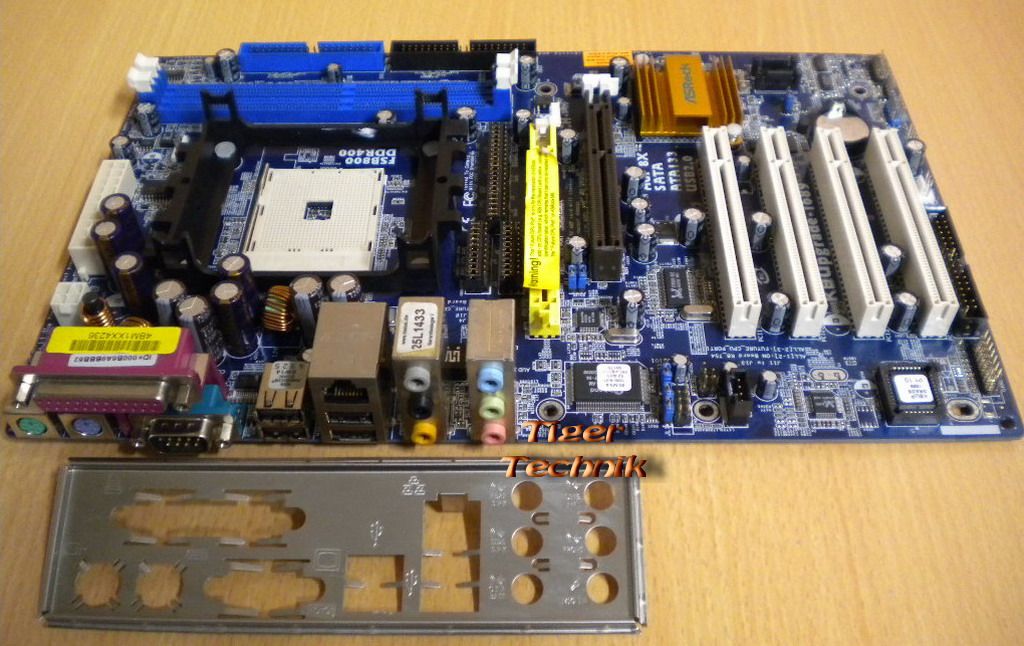

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
