Produktbeschreibung

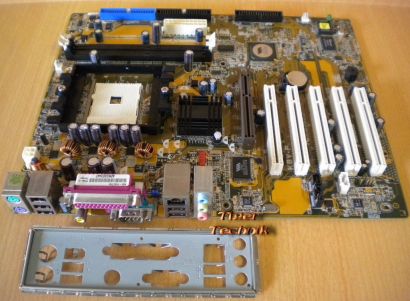

ASUS K8V-F Rev 1.03 Actebis-OEM Mainboard + Blende
Auch passend für baugleiche PC´s anderer Hersteller mit dem Asus K8V-F Mainboard!
Technische Daten
CPU
Socket 754 for AMD Athlon™ 64 processor with built-in 1MB L2 cache or 512 kB L2 cache
AMD64 architecture that supports simultaneous 32-bit and 64-bit computing
Chipset
VIA K8T800
VIA VT8237
System bus
Scalable HyperTransport™ Bus
Memory
2 x 184-pin DDR DIMM sockets for up to 2GB unbuffered non-ECC PC3200/PC2700/PC2100 SDRAM memory
Expansion slots
1 x AGP 8X/4X
5 x PCI
Storage
2 x UltraATA133 connectors
Audio
Realtek ALC655 6-channel audio CODEC
Digital audio via S/PDIF In/Out interface
LAN
Integrated 10/100 Mbps LAN controller in the southbridge with Realtek RTL8201BL/CL LAN PHY
IEEE 1394
VIA VT6307 IEEE 1394 controller supports two 1394 ports
Special features
ASUS Update
Rear panel I/O
1 x Parallel port
1 x Serial port
1 x PS/2 keyboard port
1 x PS/2 mouse port
4 x USB 2.0 ports
1 x IEEE 1394 port
1 x S/PDIF out port
1 x RJ-45 port
Line In/Line Out/Microphone ports
Internal I/O
2 x USB 2.0 connector for 4 additional USB ports
IEEE 1394 connector for an additional IEEE 1394 port
CPU/chassis fan connectors
20-pin/4-pin ATX 12V power connectors
AUX connectors
S/PDIF In connector
Panel connector
BIOS features
4Mb Flash EEPROM AMI BIOS with enhanced ACPI, PnP, DMI2.0, Green,TCAV, ASUS EZ Flash
Industry standard
PCI 2.2, USB 2.0/1.1
Manageability
DMI 2.0, WOL/WOR by PME, Wake on USB/KB/Mouse
Form Factor
ATX form factor: 12 in x 9.6 in (30.5 cm x 24.4 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
