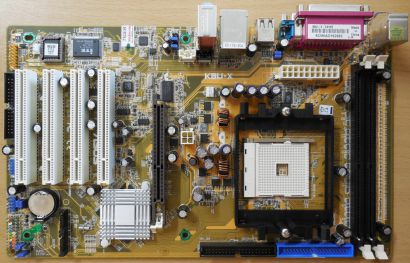

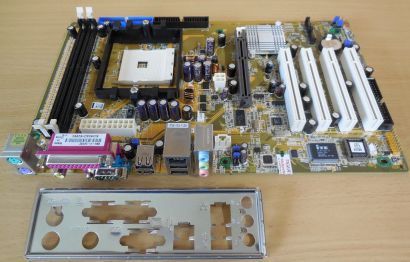

Asus K8U-X Rev 1.02 Mainboard NEU OVP Sockel 754 AGP8X DDR 5.1 Audio SATA* m827

Asus K8U-X Rev 1.02 Mainboard NEU OVP Sockel 754 AGP8X DDR 5.1 Audio SATA

Technische Daten

CPU

Socket 754 for AMD Athlon™ 64 and Sempron Processors

Support AMD 64 architecture that enables simultaneous 32-bit and 64-bit computing

Supports AMD Cool 'n' Quiet Technology

Chipset

ULi M1689

System bus

800 MHz (1600 MT/s)

Memory

2 x 184-pin DIMM Sockets support up to 2GB PC3200/PC2700/PC2100 non-ECC un-buffered DDR SDRAM memory

Expansion slots

1 x AGP 8X

4 x PCI

Storage

2 x UltraATA 133/100

2 x SATA with RAID 0, RAID 1 and JBOD

Audio

ADI AD1888 SoundMAX 6-channel audio Codec

Support for S/PDIF out interface

LAN

Realtek 8201CL 10/100 Mbps Ethernet Controlle

USB

8 x USB 2.0/1.1 ports

Overclocking

SFS (Stepless Frequency Selection) from 200 MHz up to 300 MHz at 1 MHz increment; Adjustable FSB/DDR ratio; ASUS JumperFree; ASUS C.P.R. (CPU Parameter Recall)

Special features

ASUS EZ Flash; ASUS CrashFree BIOS2, ASUS MyLogo; AMD Cool ʻnʼ Quiet Technology;

Back panel

1 x Parallel port

1 x Serial port

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0 ports

1 x S/PDIF out

1 x RJ-45

Line In/Line Out/Microphone ports

Internal

2 x USB 2.0 connectors for 4 additional USB 2.0 Ports

CPU/Chassis fan connectors

20-pin ATX / 4-pin ATX 12V power connectors

CD/AUX audio in connectors

Front panel audio connector

System pannel connector

GAME/MIDI connector

Chassis intrusion

BIOS features

4Mb Flash EEPROM

AMI BIOS, ACPI, PnP, DMI2.0, WfM 2.0, SM BIOS 2.3, ASUS EZ Flash, CrashFree BIOS 2

Industry standard

PCI 2.2, USB 2.0/1.1

Manageability

WOL by PME, WOR by PME

Power Requirement

ATX power supply (with 20-pin and 4-pin 12V plugs)

ATX 12V 2.0 compliant

Form Factor

ATX form factor: 12 in x 7 in (30.5 cm x 17.8 cm)

Support CD contents

Device drivers, ASUS PC Probe, Anti-virus utility (OEM Version)

Lieferumfang

Mainboard mit Zubehör laut Handbuch * NEU & OVP *

Abbildung ähnlich
