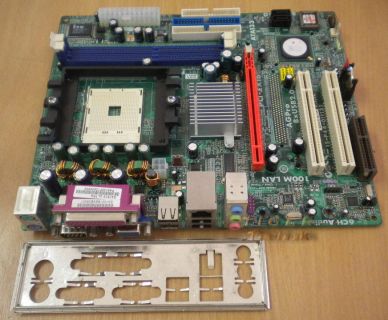

ECS Elitegroup GS7610 Ultra V:1.1c Mainboard + Blende Sockel 754 PCI-E 16X *m138

ECS Elitegroup GS7610 Ultra V:1.1c

Mainboard + Blende

Technische Daten:

CPU

º Socket 754 for AMD Athlon™ 64/Sempron™ processor

º High-performance Hyper Transport CPU interface.

º Support transfer rate of 1600/800/400 mega-transfers per second

CHIPSET

º North Bridge: SiS® 761GX

º South Bridge: SiS® 965L

GRAPHICS

º Integrated SiS Mirage 1 2D/3D Graphics

º Share memory: up to 128MB

MEMORY

º 2 x 184-pin DDR DIMM socket support up to 2 GB

º Support DDR400/333/266/200 DDR SDRAM

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.

For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 x PCI Express x16 slot

º 1 x CNR slot

º 2 x PCI slots

STORAGE

º 4 x Ultra DMA133/100/66 devices

• 2 x Serial ATA150 devices

• RAID0 & RAID1 configuration

AUDIO

º ADI AD1888 6-channel audio CODEC

º Compliant with AC'97 2.3 specification

LAN

º Realtek RTL8201CL 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connectors

º 4 x USB ports

º 1 x VGA port

º 1 x RJ45 LAN connector

º 1 x Parallel port (LPT)

º 1 x Serial port (COM1)

º 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 24-pin ATX Power Supply connector

º 1 x 4-pin ATX 12V connector

º 1 x FDD connector

º 2 x IDE connectors

º 2 x Serial ATA connectors

º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports

º 1 x SPDIF out header

º 1 x Front panel switch/LED header

º 1 x Front panel audio header

º 1 x Speaker header

º 1 x IrDA for SIR header

º 1 x CD in header

º CPUFAN/SYSFAN connectors

SYSTEM BIOS

º AMI BIOS with 4Mb Flash ROM

º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

º Supports ACPI revision 1.0 specification

FORM FACTOR

º Micro-ATX Size, 244mm*204mm

 Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
