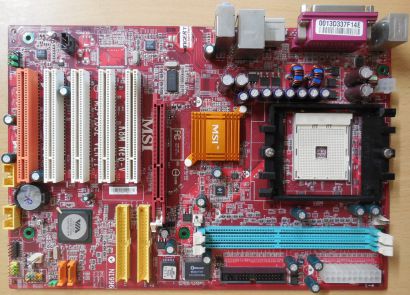

MSI K8M Neo-V MS-7032 Ver1 Mainboard +Blende Sockel 754 AGP 8X SATA DDR IDE*m902

MSI K8M Neo-V MS-7032 Ver1 Mainboard + Blende Sockel 754 AGP 8X SATA DDR IDE

Technische Daten

CPU

Supports 64-bit AMD® K8 Athlon64 processor (Socket 754)

Supports up to 2800+, 3000+, 3100+, 3200+, 3400+, 3700+, or higher CPU

Chipset

VIA® K8T800 / K8M800 chipset

- HyperTransportTM connection to AMD Athlon64 processor

- 8 or 16 bit control/address/data transfer both directions

- 800/600/400/200 MHz “Double Data Rate” operation both direction

- AGP v3.0 compliant with 8x transfer mode

VIA®VT8237/8237R chipset (487 BGA)

- Integrated Faster Ethernet LPC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 33/66/100/133 master mode PCI EIDE controller

- Supports 2 Serial ATA RAID 0/1

- Supports 8 USB2.0 ports

Main Memory

Supports DDR266/333/400 DDR SDRAM for two 184-pin DDR DIMMs

Supports a maximum memory size of 2GB

Slots

1 x AGP slot ((Accelerated Graphics Port 3.0 specification compliant)

5 x 32-bit Master 3.3v / 5v PCI Bus slots

On-Board IDE

An IDE controller on the VIA® VT8237/8237R chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes. Can connect up to 4 IDE devices.

Serial ATA/150 controller integrated by VT8237/8237R

Up to 150MB/s transfer rate. Can connect up to two Serial ATA drives with RAID0 & RAID1.

REAR PANEL I/O

1 x PS/2 Keyboard port

1 x PS/2 Mouse port

1 x Parallel port

1 x Serial port (COM1)

4 x USB2.0 ports

1 x RJ45 LAN connector

Audio jacks for microphone, line-in and line-out

INTERNAL I/O CONNECTORS & HEADERS

20-pin ATX Power Supply connector

4-pin ATX 12V connector

1 x FDD connector

2 x IDE connectors

2 x Serial ATA connectors

2 x USB 2.0 headers support additional 4 USB 2.0 Ports

1 x D-Bracket 2 connector

1 x Clear CMOS Jumper

1 x Chassis Intrusion connector

2 x Front panel switch/LED header

1 x Front audio panel header

1 x System Fan header (3pin)

1 x CPU Fan header (3pin)

1 x Power Fan header (3pin)

Audio

6 channels software audio codec RealTek ALC655.

- Compliance with AC97 v2.3 Spec.

- Meet PC2001 audio performance requirement.

LAN

10/100Mbps Realtek® 8201CL

integrated Fast Ethernet MAC and PHY in one chip.

compliant with PCI V2.2.

Support ACPI Power Management.

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension

ATX Form Factor: 305 mm (L) x 210 mm (W).

Mounting

6 mounting holes.

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
