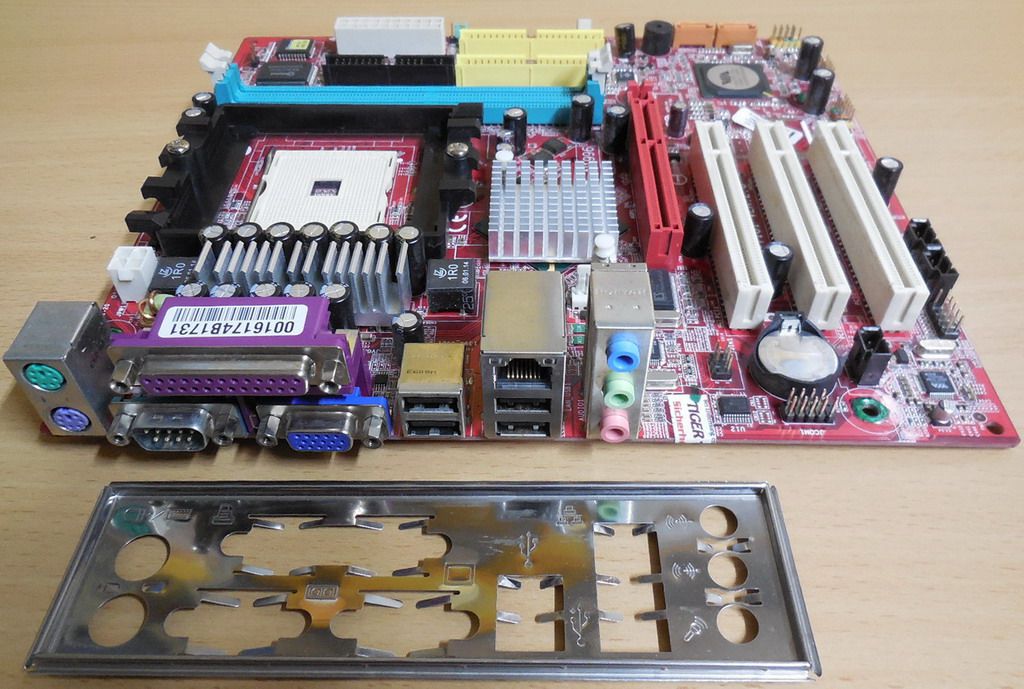

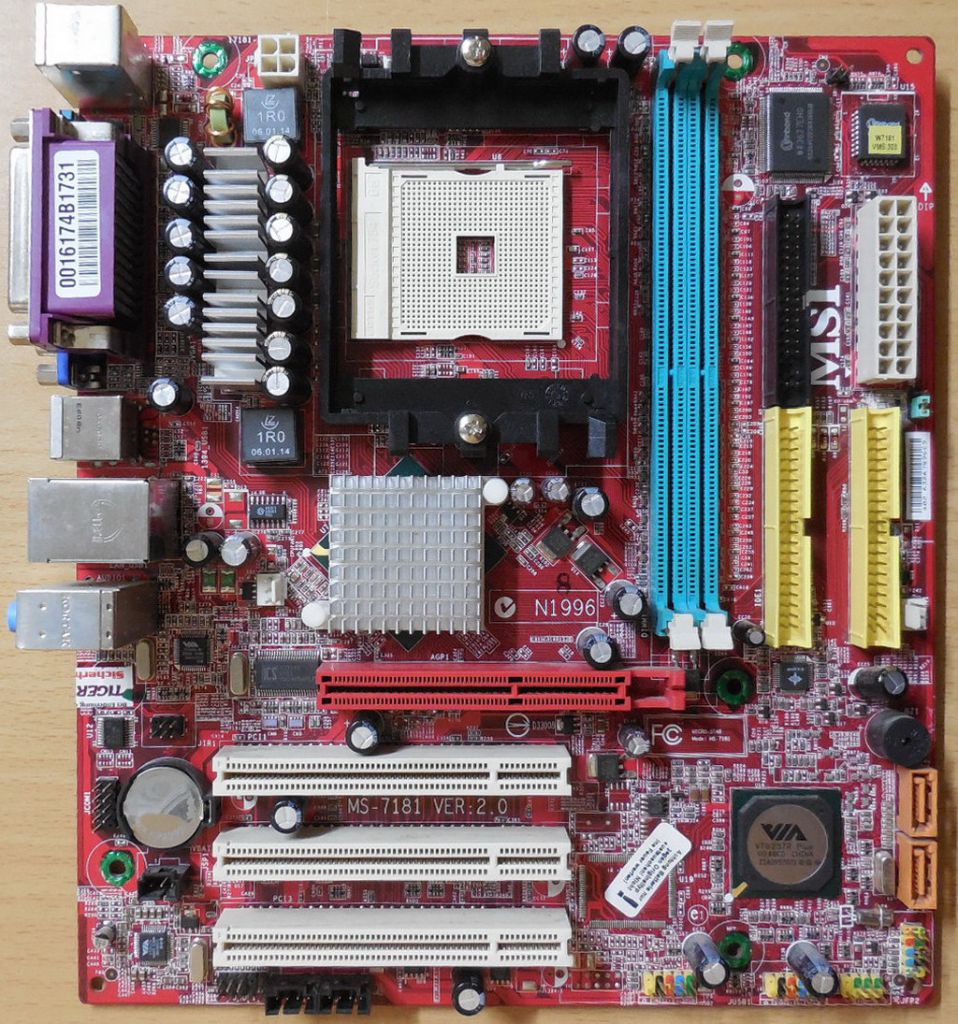

MSI K8MM3-V MS-7181 Ver 2.0 Mainboard +Blende Sockel 754 VGA Sound LAN AGP* m351

MSI K8MM3-V MS-7181 Ver 2.0 Mainboard + Blende Sockel 754 VGA Sound LAN AGP

Technische Daten

CPU

Supports 64-bit AMD® K8 Athlon 64 / Sempron processor (Socket 754)

Supports 3700+ or higher CPU

Chipset

VIA K8M800 Chipset

- HyperTransportTM connection to AMD K8 Athlon64 / Sempron processor

- 8 or 16 bit control/address/data transfer both directions

- 800/600/400/200 MHz “Double Data Rate” operation both direction

- AGP v3.0 compliant with 8x transfer mode

- Graphic integrated

VIA VT8237R Plus Chipset

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- ACPI & PC2001 compliant enhanced power management

- Supports dual channel native SATA controller up to 150MB/s

- Supports SATA RAID 0 or RAID 1

- Supports 8 USB2.0 ports

- Supports SATA2 Device

Main Memory

Supports DDR266/333/400 DDR SDRAM, and unbuffered DIMMs for two 184- pin DDR DIMMs

Supports DIMM sizes up to 2GB of memory in total

Slots

1 x AGP 8x/4x slot

3 x 32-bit/33 MHz PCI slots

Storage

An IDE controller on the VT8237R Plus chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. Can connect up to four Ultra ATA drives.

Serial ATA/150 controller integrated in VT8237R Plus

- Up to 150MB/sec transfer speeds. (VT8237R Plus supports SATA2 device.)

- Can connect up to two Serial ATA drives.

- Supports RAID 0 or 1

Audio

AC’97 link controller integrated in VT8237R Plus

6 channels software audio codec VIA VT1617A

- Compliance with AC97 v2.3 Spec

- Meet PC2001 audio performance requirement

LAN

VIA VT8237R Plus MAC + VIA 6103 Ethernet PHY

- Supports 10/100Mb/s auto-negotiation operation

- Compliant with PCI v2.2 and PC99 standard

- Supports ACPI Power Management

Internal I/O Connectors

1 x Floppy Disk Drive Connector

2 x IDE Connectors

2 x SATA Connectors

2 x Front USB2.0 Connectors

1 x JAUX1 AUX Line-In Connector

1 x JCD1 CD-In Connector

1 x JAUD1 Front Panel Audio Connector

1 x JCI1 Chassis Intrusion Switch Connector

1 x JIR1 IrDA Infrared Module Header

1 x JSP1 SPDIF-Out Connector

1 x JCOM1 Serial Port Header

1 x Buzzer

1 x 3-Pin CPU FAN Connector

1 x 3-Pin SYSTEM FAN Connector

1 x JBAT1 CMOS Jumper

1 x JFP1 Front Panel Connector

1 x JFP2 Front Panel Connector

1 x 20-pin ATX Mainboard Power Connector

1 x 4-pin 12V CPU Power Connector

Back Panel I/O Ports

1 x PS/2 Keyboard port

1 x PS/2 Mouse port

4 x USB2.0 ports

1 x LAN RJ-45 jack

1 x VGA port

1 x Serial port (COM)

1 x Parallel port

3 x Audio ports

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Dimension and Mounting

Micro-ATX Form Factor; ca. 24.4 cm (L) x 21.5 cm (W)

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
