Produktbeschreibung

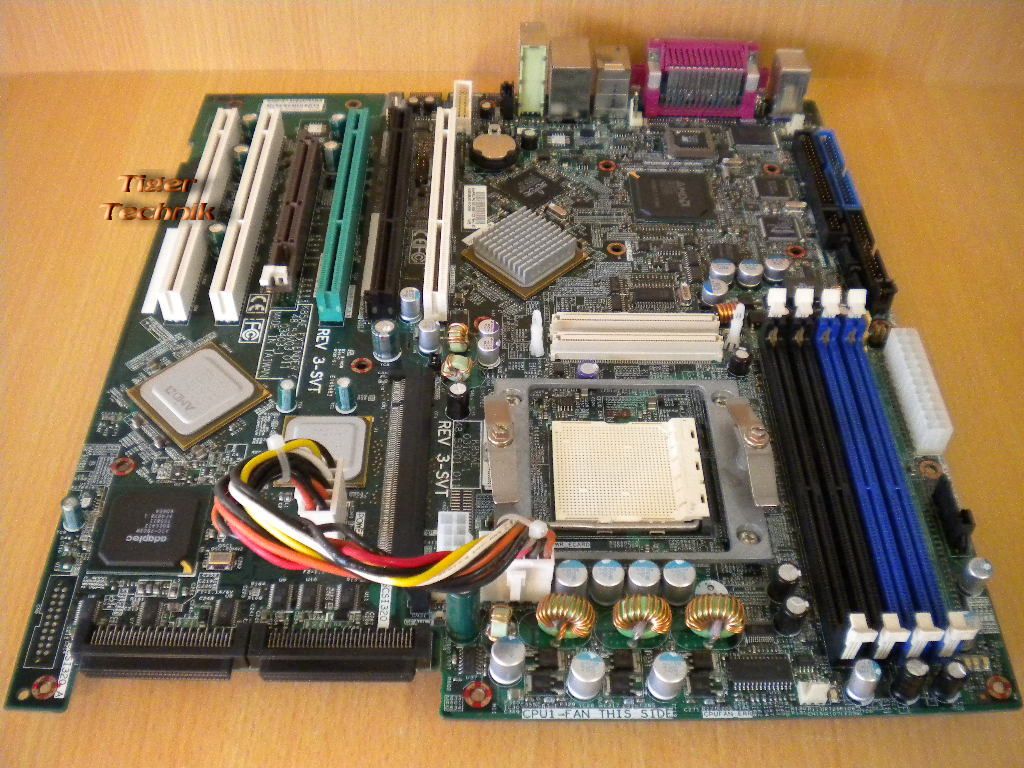

Sun Microsystems W1100z Workstation Rev 3-SVT
PN: 501-6851-02 Rev: 50 + PN: 370-6794-02 Rev: 50
Mainboard + Extender Card + Blende
Technische Daten
CPU
• One 64-bit AMD Opteron processor
The Sun Java Workstation W1100z is not upgradable to two processors.
• Processor frequencies: 1.8 GHz and faster
• Up to 1 MB level 2 cache
Memory
• Four DIMM slots per processor.
• Each DIMM socket on board supports 512 MB, 1 GB or 2 GB DDR 400 SDRAM (3.05 cm max. height) modules.
Network I/O
Onboard Broadcom BCM5703ci 10/100/1000BASE-T Gigabit Ethernet controller
AGP
• One AGP 8X Pro slot
PCI I/O
Five PCI bus slots with four separate bus segments
• One half-length 133 MHz PCI-X bus slot
• One half-length and three full-length 100 MHz PCI-X bus slots
Other I/O
• One parallel/printer connector
• Two serial connectors
• Five USB 2.0 connectors (two on the front and three on the rear of
the workstation)
• One IEEE 1394 (firewire) connector
• Line-in/Line-out jacks
• Microphone-in jack
Storage
• 2x SATA ports
• 2x IDE up to four devices
• 2x SCSI320 ports
Weitere Infos finden Sie hier ---> https://docs.oracle.com/cd/E19127-01/w1100z.ws/817-6585-12/817-6585-12.pdf
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
