Abit AN7 V1.0 Sockel A 462 Mainboard
FSB400 DDR400 AGP 8X LAN SATA 5.1 Audio
Technische Daten
CPU
Supports AMD-K7 Socket A 266/333/400 MHz FSB CPU
Supports AMD Sempron CPUs (Please update the latest BIOS version)Chipset
NVIDIA nForce2 Ultra 400 chipset with MCP-T
Integrated 128-bit memory controller
Supports Advanced Configuration and Power Management Interface (ACPI)
Accelerated Graphics Port connector supports AGP 8X/4X (0.8V/1.5V)Memory
Three 184-pin DIMM sockets
Supports 3 DIMM Un-buffered DDR 266/333
Supports 2 DIMM Un-buffered DDR 400 Audio
6-Channel AC 97 CODEC on board
Professional digital audio interface supports optical S/P DIF In/Out
NVIDIA SoundStormTM Technology with real-time Dolby Digital 5.1 encoderLAN
On board Realtek 10/100 LAN Controller
SATA RAID
On board SATA PCI Controller
Support 2 channels SATA 150 RAID 0/1
ABIT Engineered
ABIT μGuru™ Technology
ABIT SoftMenu™ Technology
ABIT FanEQ™ Technology
ABIT MaxFID™ Technology
ABIT CPU ThermalGuard™ Technology
ABIT FlashMenu™
IEEE1394
3 ports IEEE1394 Supports 400 Mb/s data transfer rate
Internal I/O Connectors
1 x AGP8X/4X, 5 x PCI slots
1 x Floppy Port supports up to 2.88MB
2 x Ultra DMA 33/66/100/133 Connectors
2 x SATA 150 Connectors
1 x USB 2.0 headers
1 x IEEE1394a header
2 x CD-IN
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 mouse
1 x Serial, 1 x Parallel
1 x S/PDIF Out port, 1 x SPDIF Input
Audio connectors (Front Speaker, Line-in, Mic-in, Center/Sub, Surround Speaker)
4 x USB 2.0, 1 x RJ-45 LAN Connector, 1 x IEEE1394 Connector
Miscellaneous
245 x 305mm ATX form factor
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

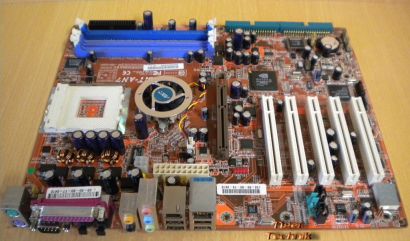

Abbildung ähnlich
