Produktbeschreibung

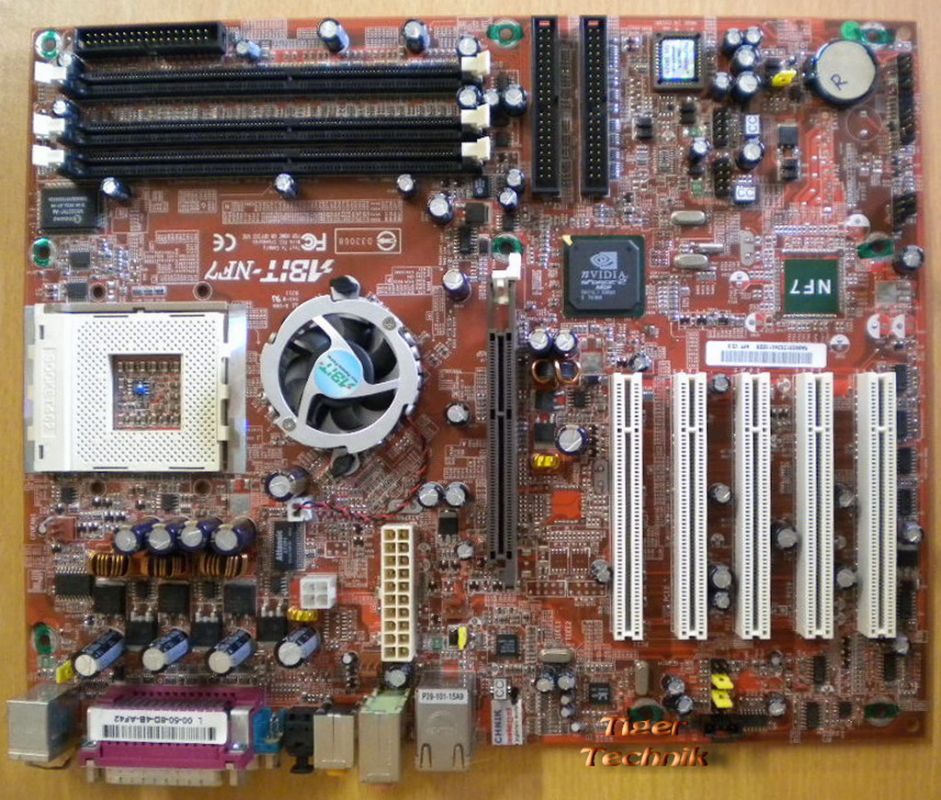

Abit NF7 V2.0 Sockel A 462 Mainboard + Blende
FSB400 DDR400 LAN 5.1 Audio
Technische Daten
CPU
Ready for AMD FSB200/266/333/400MHz Processors
Supports AMD-K7 Duron / Athlon / Athlon XP / Barton Processors
Chipset
NVIDIA nForce™2 Ultra400 chipset with MCP
Integrated 128-bit memory controller
Supports Advanced Configuration and Power Interface (ACPI)
AGP (Accelerated Graphics Port) connector supports AGP 8X/4X (0.8V/1.5V)
DUAL DDR
Dual DDR architecture combines two independent 64-bit memory controllers
Dual DDR 400 provides up to 6.4GB/s bandwidth for system memory
Memory
Three 184-pin DIMM sockets
Supports 3 DIMM DDR 200/266/333 (Max. 3 GB)
Supports 2 DIMM DDR 400 (Max. 2 GB)
Audio
6-Channel AC 97 CODEC on board
Professional digital audio interface supports optical S/PDIF Out
LAN
Onboard 10/100M LAN Controller
ABIT Engineered
ABIT SoftMenu™ Technology
ABIT FanEQ™ Technology
ABIT FlashMenu™
ABIT CPU ThermalGuard™
Internal I/O Connectors
1 x AGP8X/4X, 5 x PCI slots
1 x Floppy Port supports up to 2.88MB
2 x Ultra DMA 33/66/100/133 Connectors
2 x USB 2.0 headers
1 x CD-IN
1 x IrDA
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 mouse
2 x Serial, 1 x Parallel
1 x S/PDIF Out port
Audio connectors (Front Speaker, Line-in, Mic-in, Center/Sub, Surround Speaker)
2 x USB 2.0, 1 x RJ-45 LAN Connector
Miscellaneous
ATX form factor
Hardware monitoring - Including Fan speeds, Voltages, System environment temperature
Lieferumfang

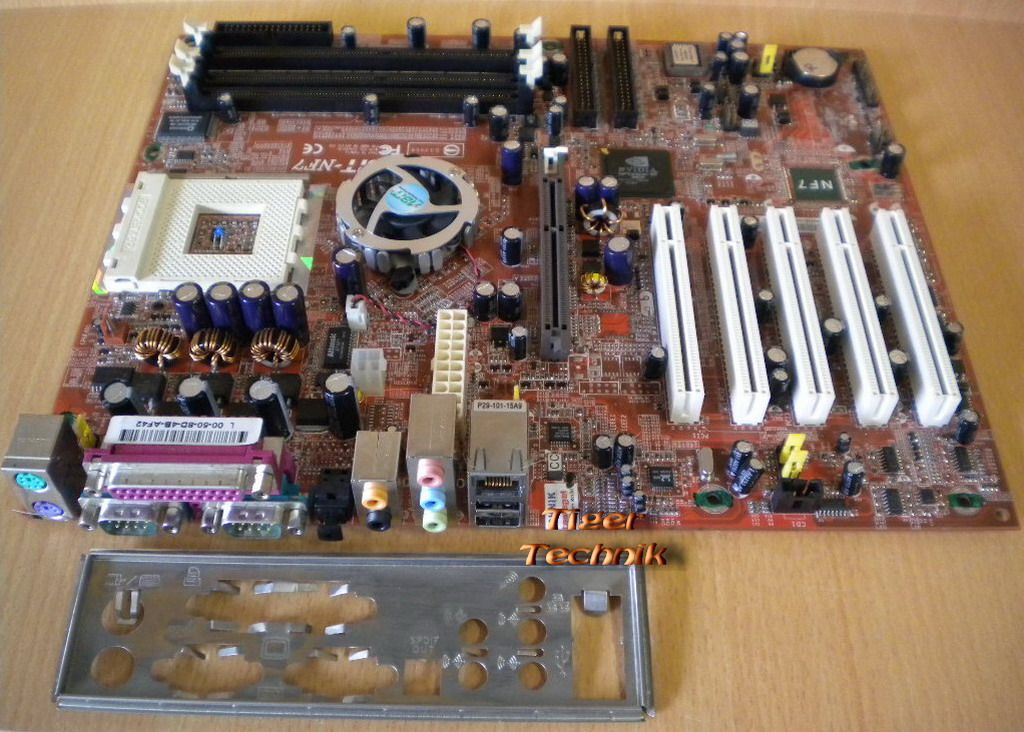

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
