Produktbeschreibung

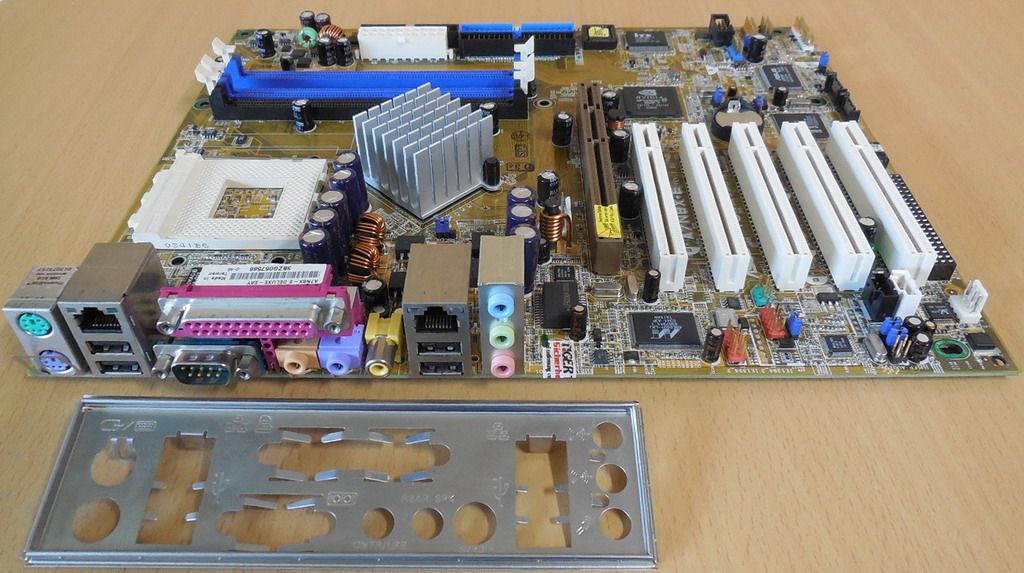

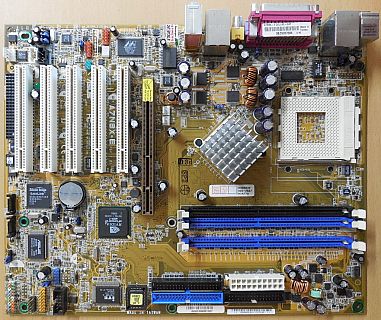

Asus A7N8X-E Deluxe Rev 1.01 Retro Mainboard + Blende AMD Sockel A 462 FSB400 Dual LAN nVidia nForce 2 SATA
Technische Daten
CPU
Sockel A für AMD Duron™ / AMD Athlon™ / AMD Athlon™ XP bis 3200+ Prozessoren
Front Side Bus (FSB)
400/333/266/200 Mhz
Chipset
NVIDIA® nForce2 Ultra 400 Northbridge + NVIDIA® nForce2 MCP-T Southbridge
Memory
3 x 184-pin DDR DIMM-Steckplätze für ungepufferte PC3200/2700/2100/1600 nicht-ECC DDR RAMs bis zu max. 3GB
Dual-Kanal DDR400-Unterstützung
Expansion Slots
5 x PCI
1 x AGP Pro / 8X (nur 1,5V)
1 x ASUS proprietärer Wi-Fi-Steckplatz
Storage
2 x UltraDMA 133/100/66/33 IDE
2 x Serial ATA mit RAID 0,1-Unterstützung
Dual LAN
Marvell® 88E8001 Gigabit LAN MCP-T Southbridge integrierter Controller MAC + Realtek 8201BL Fast Ethernet LAN PHY
Audio
MCP-T Southbridge integrierte APU (Audio Processor Unit) + Realtek ALC650 6-Kanal Audio-CODEC
USB
6 x USB2.0/1.1 ports (2 ports at mid-board, 4 ports at back panel)
IEEE 1394
MCP-T integrierte IEEE 1394a + Realtek PHY 8801B
2 x IEEE 1394a ports at mid-board
ASUS Unique Features
ASUS Q-Fan-Technologie
ASUS POST Reporter
ASUS C.O.P. (CPU-Überhitzungsschutz)
Stromausfall-Neustart
CPU Throttle
Internal I/O Connectors
1 x ATX 20-Pin Power connector
1 x 3-pin CPU FAN connector
1 x 3-pin Power FAN connector
1 x 3-pin Chassis FAN connector
1 x IR connector
1 x Chassis Intrusion connector
1 x CD IN connector
1 x AUX connector
1 x MODEM connector
1 x COM2 connector
1 x Front panel audio connector
1 x System Panel connector
1 x USB2.0/1.1 connector support additional 2 USB2.0/1.1 ports
1 x Game/MIDI connector
2 x IEEE1394 FireWire connectors support additional 2 ports
2 x IDE connectors
2 x SATA connectors
1 x FDD Floppy connector
1 x Clear CMOS jumper
1 x SATA Enable jumper
1 x S/PDIF-Out header
1 x Keyboard Power Jumper
1 x USB1-2 Power Jumper
1 x USB3-4 Power Jumper
1 x USB5-6 Power Jumper
1 x GLAN SW Jumper
Back Panel I/O Ports
1 x PS/2 Mouse port
1 x PS/2 Keyboard port
1 x Parallel port
1 x COM port
1 x RJ45 Gigabit LAN port
1 x RJ45 Fast Ethernet LAN port
4 x USB2.0 ports
2 x Audio jacks (CNTR/LFE + Surround L/R-Audiobuchse Audiobuchse)
1 x S/PDIF In/Out-Anschluss
BIOS features
4Mb Flash ROM, Award BIOS, PnP, DMI2.0, Grün
Industriestandard
PCI 2.2, USB 1.1/2.0
Verwaltung
DMI 2.0, WOL, WOR, Gehäuseeinbruch, SM Bus
Form factor
30.5cm(L) x 24.4cm(W) ATX Form Factor; 12 in. x 9.6 in.
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
