Overview

The ASUS A7V266-E motherboard is the perfect answer for home PCs, workstations and servers. The A7V266-E is powered by the AMD® Athlon™ /Duron™ processor and is bundled with advanced features to provide superlative performance.

Technische Daten

CPU

AMD® Athlon™ / Athlon XP™ and Duron™ Processor Support

Socket A (462) for AMD processors

Chipset

North Bridge System Chipset: VIA® KT266A North Bridge that supports AGP 4X/2X mode, 133/100MHz Front Side Bus (FSB), and 266/200MHz memory bus.

South Bridge System Chipset: VIA® VT8233 integrated peripheral controller supports UltraDMA/100/66/33 for burst mode data transfer rates of up to 100MB/sec, and USB controller with three root hubs for six USB ports.

Memory

PC2100/PC1600 DDR Support: Equipped with three Double Data Rate Dual Inline Memory Module (DDR  DIMM) sockets to support up to 3GB of DDR DRAM.

DDR DRAM is the newest memory standard with the highest bandwidth and  lowest  latency currently available and dramatically improves the memory system’s ability to service, among others, high multimedia requirements.(Caution: Do not attempt to use SDRAM modules.)

JumperFree™ Mode:

Allows processor settings and easy overclocking of frequency and Vcore voltage through BIOS. Easy-to-use DIP switches come with the motherboard board to allow manual adjustment of the processor external/internal frequency.

IDE

UltraDMA/100 Support: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices on two channels. Supports UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4, Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.

Dual-channel bus master IDE connectors support up to four Ultra DMA/100/66, PIO Modes 3 & 4 IDE devices like two HDDs, one DVD and an R/W CD.

AGP Pro Slot:

Comes with an Accelerated Graphics Port Pro slot that supports AGP cards for high performance, component level interconnect targeted at 3D graphical applications using a 4X mode bus. The slot is keyed to support only the latest 1.5 volt AGP cards.

Floppy disk connector: Supports the floppy disk drive.

PCI Expansion Slots:

Provides five 32-bit Legacy Free PCI slots, (PCI 2.2 compliant) with no ISA, eliminating bottlenecks and system memorymanagement issues. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up to 133MB/s maximum throughput.) The MB supports Concurrent PCI, which allows multiple PCI transfers from PCI master bus to the memory and processor.

Wake-On-LAN: Supports Wake-On-LAN activity through an optional ASUS PCI-L101 10 /100 Fast Ethernet PCI card.

Wake-On-Ring: Supports Wake-On-Ring activity through a PCI modem card.

Smartcard Reader Connector: This connector that provides the convenience of PS/SC compatible Smart Card security plus support for a multitude of new financial, telephonic, and mobile access services.

USB ports: Four Universal Serial Bus (USB) ports are available for connecting USB devices such as a mouse and PDA.

Serial ports: Two 9-pin COM1/COM2 ports are for all serial devices.

Super Multi-I/O:

The multi-I/O chipset offers complete support for a variety of I/O functions. Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections. The Super I/O controller also supports a floppy disk drive, PS/2 keyboard, and PS/2 mouse.

Smart BIOS:

2Mb firmware provides Vcore and CPU/DDR SDRAM frequency adjustments, boot block write protection, and HD/SCSI/MO/ZIP/CD/Floppy boot selection.

IrDA:

Supports an optional infrared port module for wireless interface.

Onboard Audio:

Audio models come with the six-channel C-Media CMI8738 PCI audio controller that supplies HRTF 3D positional audio functions. The chip supports software access to PC DVD 5.1/6.1 and AC-3/DTS via SPDIF. Other integrative featues include: full DVD playback, PCtel 56K modem, and even Karaoke echo effects. The chip offers 24-bit SPDIF digital recording and playback with additional support for legacy audio SBPRO™ and FM emulator/DLS wavetable music synthesis. A software package helps setup the multi-channel PC sound system.

Microphone: Pink jack connects a microphone (or 6 channel speaker).

Line In: Light blue jack connects a tape player (or 6 channel speaker).

Line Out: Lime jack connects a headphone, a speaker (or 6 channel speaker).

Game/MIDI connector: This connector supports a joystick or a game pad for playing games, and MIDI devices for playing or editing audio files.

Parallel port: 25-pin port connects a parallel printer or other devices.

PS/2 mouse port: Green 6-pin connector is for a PS/2 mouse.

PS/2 keyboard port: Purple 6-pin connector is for a PS/2 keyboard.

Onboard LED: Signals AC power is okay.

ATX power connector: Supplies the MB with ATX 12V power. The power supply must have at least 1A on the +5V standby lead (+5VSB).

This  motherboard  supports  a  new generation memory, Double Data Rate (DDR) Dynamic Random Access Memory (DDR  DRAM).  This  new  memory  technology  increases  performance  by executing two actions per clock cycle, resulting in data transfer rates of up to 2.1GB/s for 133MHz DDR SDRAM and 1.6GB/s for 100MHz DDR SDRAM.

ACPI Ready:

Advanced Configuration Power Interface (ACPI) provides more Energy  Saving  Features  for  operating  systems  that  support  OS  Direct  Power Management  (OSPM)  functionality.  With  these  features  employed  in  the  OS, PCs can be ready around the clock but comply with energy saving standards. To fully utilize the ACPI benefits, use an ACPI-supported OS such as Windows 98.

Smartcard  Reader  Connector:

Features  a  connector  that  provides  the convenience of PS/SC compatible Smart Card security along with support for a multitude of new financial, telephonic, and mobile access services.

PC’ 99 Compliant:

Both the BIOS and hardware levels of ASUS smart series motherboards are PC’99 compliant. The new PC’99 requirements for systems and components are based on the following high-level goals: Support for Plug-n-Play compatibility and power management for configuring and managing all system  components, and  32-bit  device  drivers  and  installation  procedures  for Windows95/98/NT. Color-coded  connectors  and  descriptive  icons  make identification easy as required by PC’99.

High-Speed Data Transfer Interface:

Support for UltraDMA/100 through the onboard IDE bus master controller triples the UltraDMA/33 burst transfer rate. UltraDMA/100  is  backward  compatible  with  DMA/66,  DMA/33,  and  other existing  DMA  devices  to  save  the  need  to  upgrade  current  EIDE/IDE  drives. (UltraDMA/66 requires a 40-pin 80-conductor cable).

Concurrent PCI:

Concurrent PCI allows multiple PCI transfers from PCI master busses to the memory and processor.

Auto Fan Off:

The system fans powers off automatically even in sleep mode. This  function  reduces  both  energy  consumption  and  system  noise,  and  is  an important feature in implementing silent PC systems.

Dual Function Power Button:

Pushing the power button for less than 4 seconds when the system is in the working state places the system into one of two states: sleep mode or soft-off mode, depending on the BIOS or OS setting(See PWR Button < 4 Secs in 4.5 Power Menu). When the power button is pressed for more than 4 seconds, the system enters the soft-off mode regardless of the BIOS setting.

Fan Status Monitoring and Alarm:

To prevent system overheat and system damage, the CPU and system fans can be monitored for RPM and failure.  All fans are set for its normal RPM range and alarm thresholds.

Power LED (requires ACPI OS support): The power LED indicates the system status.

Remote  Ring-On  (requires  modem): This  allows  a  computer  to  be  turned  on remotely through an internal or external modem. With this benefit on-hand, users can access vital information from their computers anywhere.

Temperature  Monitoring  and  Alert: CPU  temperature  is  monitored  by  the ASUS  ASIC  through  the  CPU’s  internal  thermal  diode  (on  Pentium  III  and Celeron) to prevent system overheat and system damage.

Voltage Monitoring and Alert:

System voltage levels are monitored to ensure stable  voltage  to  critical  motherboard  components.  Voltage  specifications  are more critical for future processors, so monitoring is necessary to ensure proper system configuration and management.

Chassis  Intrusion  Detection:

Supports  chassis-intrusion  monitoring  through the ASUS ASIC. A chassis intrusion event is kept in memory on battery power for more  protection.

 Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

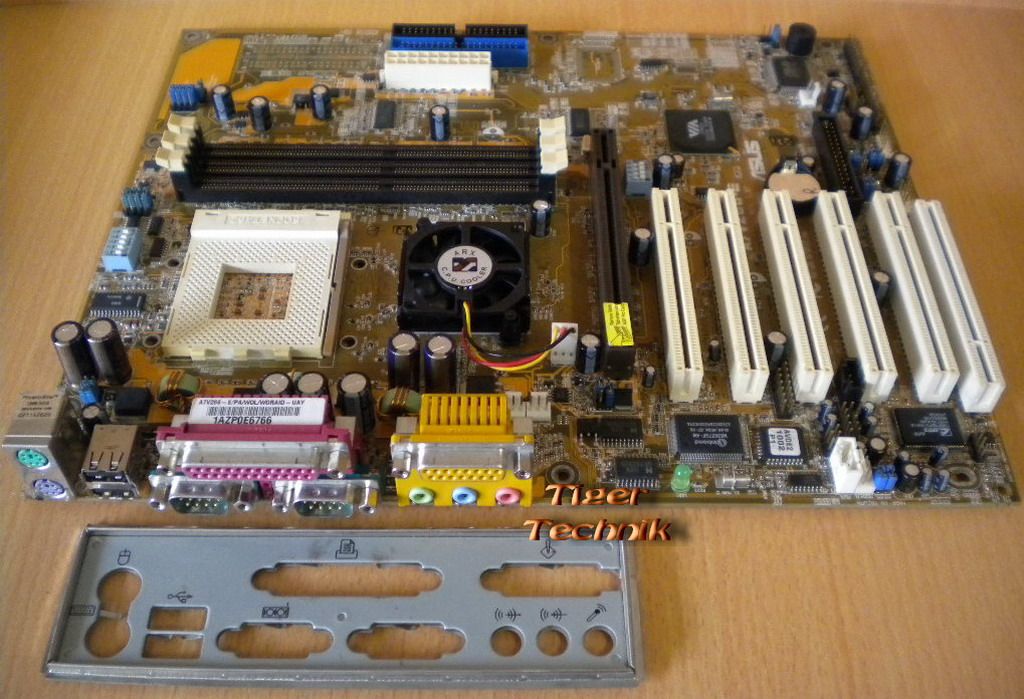

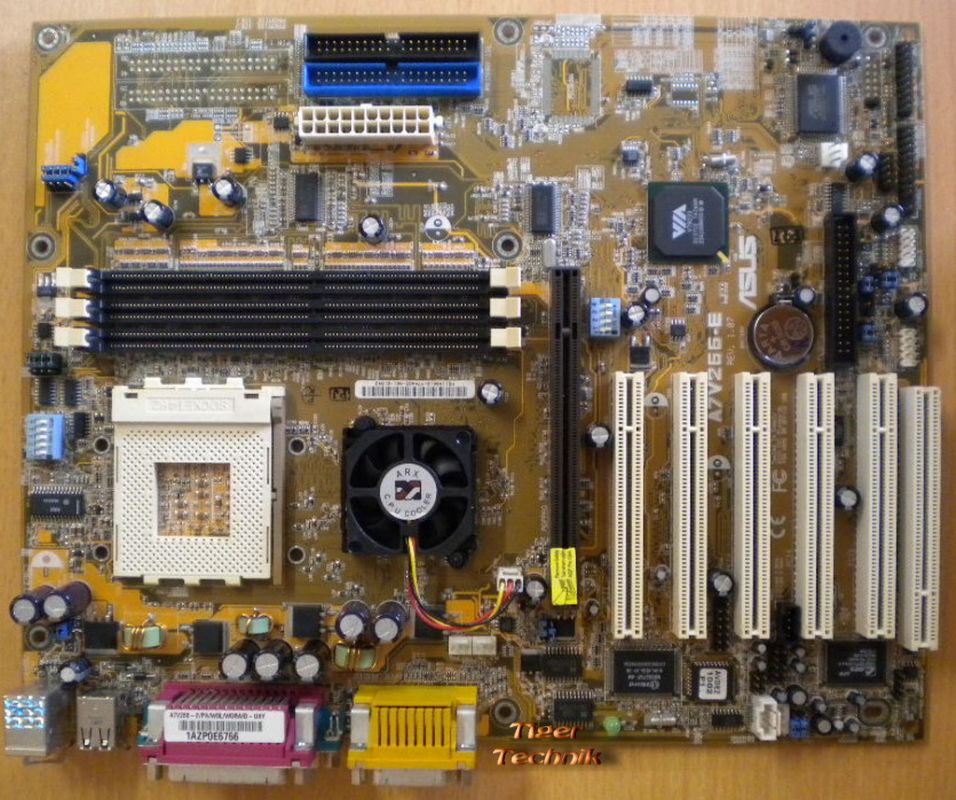

Abbildung ähnlich
