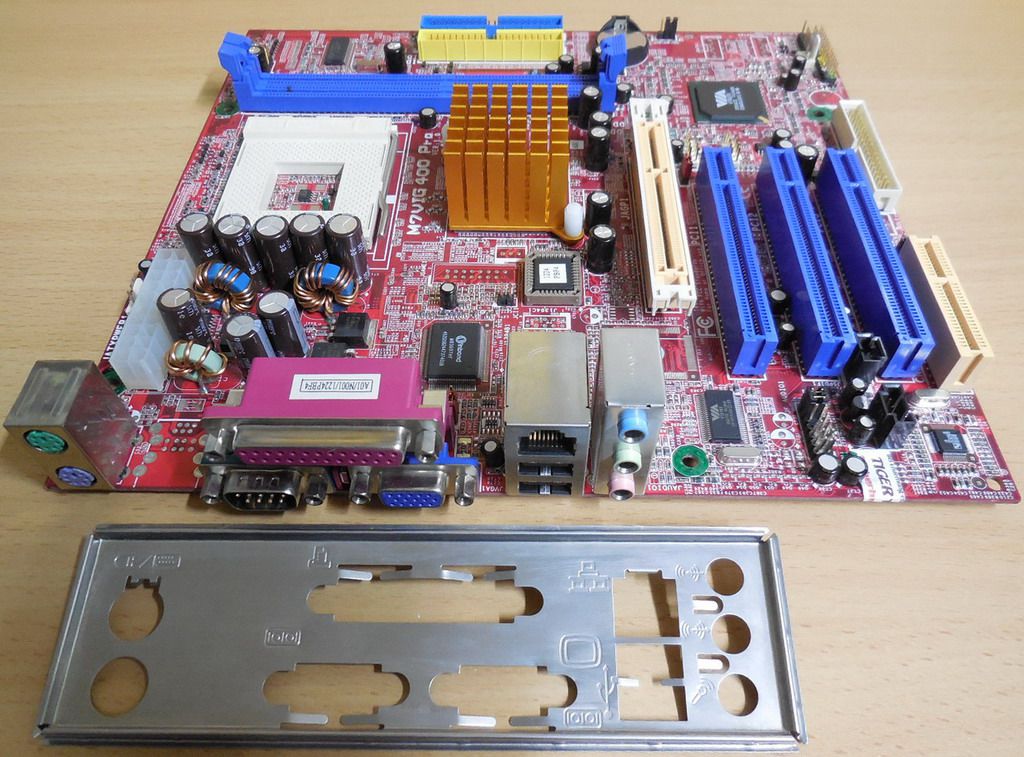

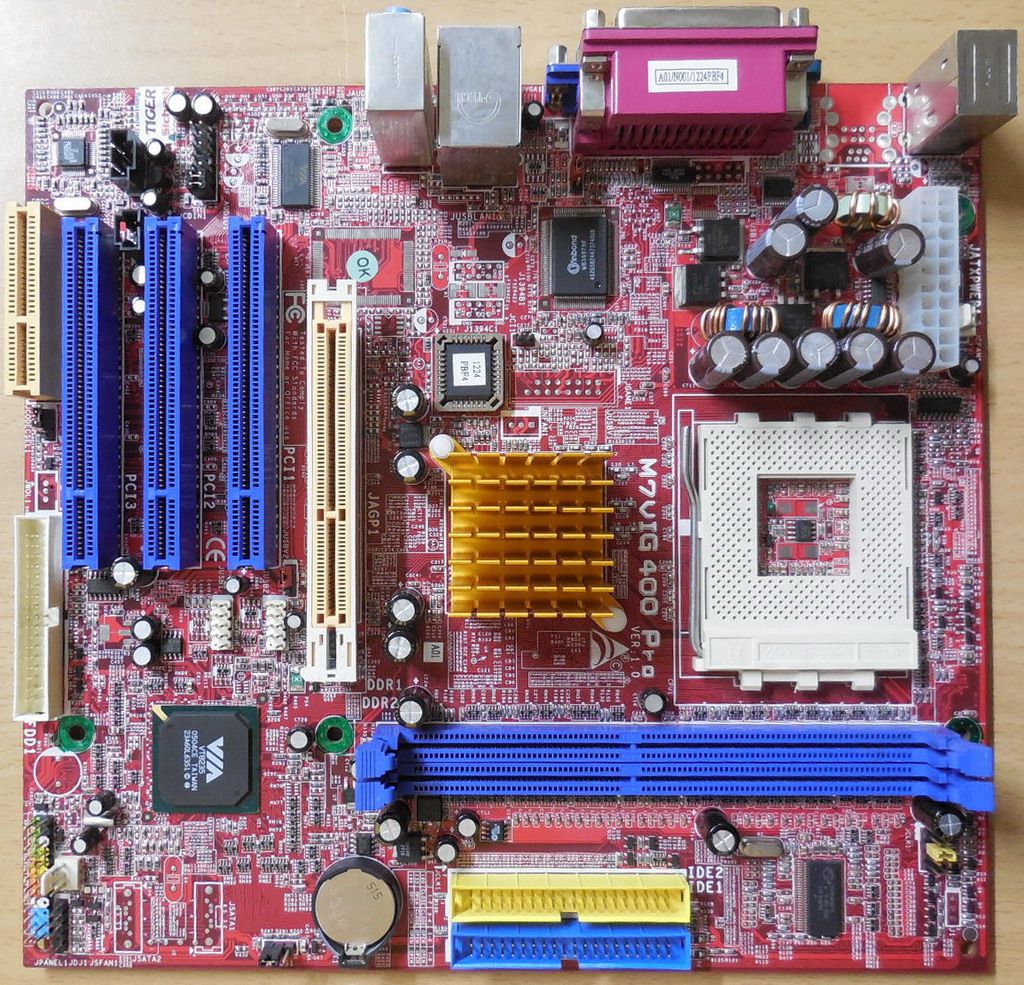

Biostar M7VIG 400 Pro Ver1.0 Mainboard +Blende AMD Sockel A 462 VGA LAN USB*m981

Biostar M7VIG 400 Pro Ver 1.0 Mainboard + Blende AMD Sockel A 462 VGA LAN USB

Technische Daten

CPU

Support socket A/462 for AMD® Athlon, Athlon XP, Duron, and Sempron processors

FSB

200 / 266 / 333MHz Front Side Bus

Chipset

VIA KM266 Pro / VT8235

Main Memory

2 x 184-pin DDR DIMMs; Supports a maximum memory size up to 2GB DDR333

Slots

1 x AGP slot

3 x PCI slots

1 x CNR slot

On-Board IDE

2 x IDE ports by Chipset. Can connect up to 4 IDE devices

Supports Ultra DMA 33/66/100/133 mode

Video

UniChrome 2D/3D Graphics with motion compensation

Audio

C-Media CMI9761A 6-Channel AC'97 CODEC

LAN

Supports 10/100 Fast Ethernet by VIA VT6103

Internal I/O Connectors

ATX 20-pin power connector

1 x JCLK1 CPU Frequency Selection header

1 x JCI1 Chassis Intruder connector

1 x 3-pin CPU FAN connector

1 x 3-pin System FAN connector

1 x JCDIN1 CD-in connector

1 x Floppy disk drive connector

2 x IDE connectors

2 x USB 2.0 connectors support additional 4 ports

1 x JSPDIF1 SPDIF-Out connector

1 x Front Panel connector

1 x JF_AUDIO1 Front Audio Panel connector

1 x JUSBV2 Jumper

1 x JCODECSEL1 Jumper

1 x Clear CMOS Jumper JCMOS1

1 x IrDA connector

Back Panel I/O Ports

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Parallel port

1 x Serial port

1 x VGA port

1 x 3 in 1 audio jack

2 x USB 2.0

1 x RJ45 LAN Jack

Hardware Monitor

CPU / System Fan Speed

System Voltage

CPU / System Temperature

Dimension

Micro-ATX Form Factor; 24.4cm (L) x 22.5cm (W)

Mounting

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
