Produktbeschreibung

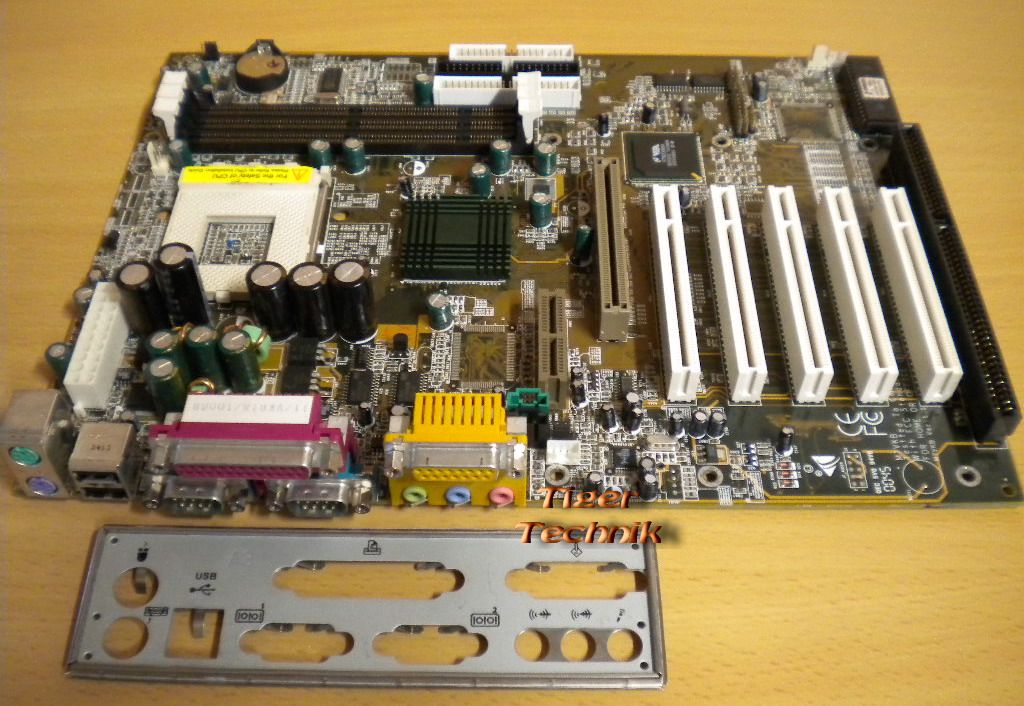

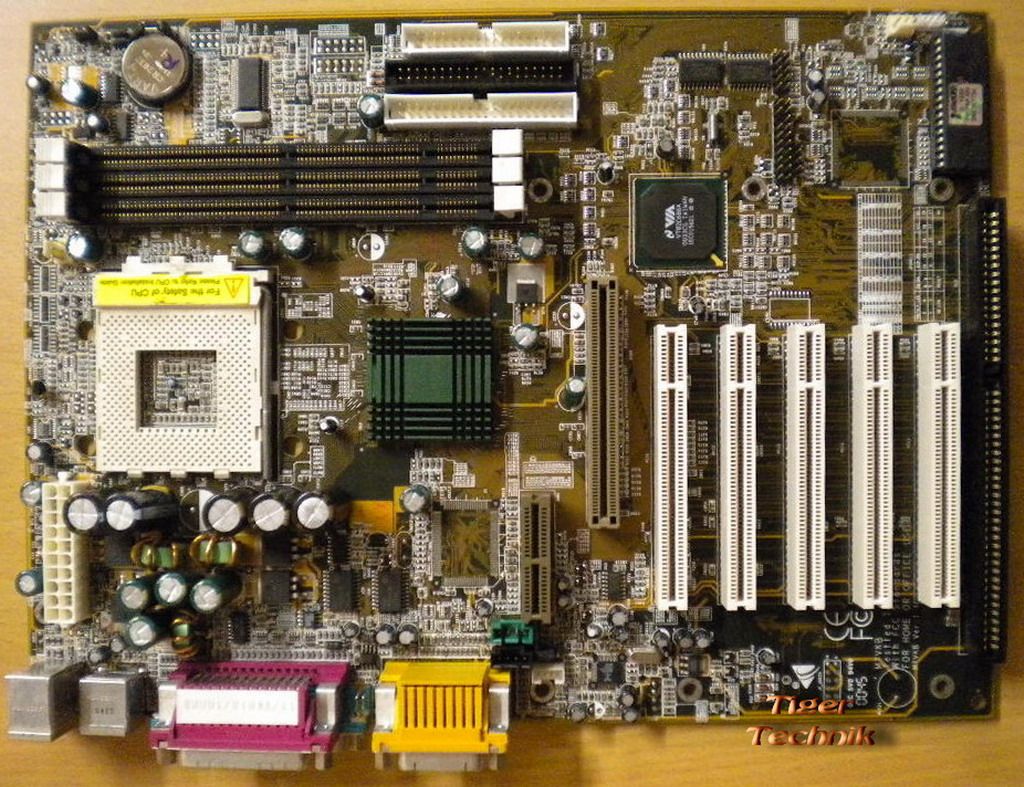

Biostar M7VKB Ver 1.1 Mainboard + Blende
Technische Daten
CPU
- Single AMD Socket-A for Athlon™ (Thunderbird™) / Duron™ processor Module-500MHz and faster
- 200MHz System Interface speed
Speed
- Support 33 MHz PCI Bus speed.
- Support 4X AGP Bus.
Chipset
- VIA KT133/686A
DRAM Memory
- Supports 8/16/32/64...MB DIMM module socket.
- Supports Synchronous DRAM (3.3V).
- Support a maximum memory size of 768MB with SDRAM.
Shadow RAM
- A memory controller provide shadow RAM and supports 8-bit ROM Bios
Green Function
- Support power management operation via BIOS
- Power down timer from 1 to 15 mins
- Wakes from power saving sleep mode at the press of any key or any mouse activity
BUS Slots
One (1) ISA slot
Five (5) PCI slots
One (1) AGP slot
One (1) AMR slot
Flash Memory
- Support flash memory
- Support ESCD Function
IDE Built-in On Board
- Supports four IDE hard disk drives.
- Supports PIO Mode 4, Master Mode, high performance hard disk drives.
- Support Ultra DMA 33, 66 Bus Master Mode.
- Supports IDE interface with CD-ROM.
- Supports high capacity hard disk drives.
- Support LBA mode.
PCI-Based AC97 Digital Audio Processor
- AC97 2.1 interface
- 16 channels of high-quality sample rate conversion.
- 16x8 channel digital mixer.
- Stereo 10 band graphic equalizer.
- Sound Blaster® and Sound Blaster Pro® emulation.
- S/PDIF output (allows standard interface to consumer electronics)
- 64-voice wavetable (optional)
- PC99 compliant and WHQL certified.
I/O
- Supports one multi-mode Parallel Port.
(1) Standard & Bidirection Parallel Port
(2) Enhanced Parallel Port (EPP).
(3) Extended Capabilities Port (ECP).
- Supports two serial ports, 16550 UART.
- Supports one Infrared transmission (IR).
- Supports PS/2 mouse and PS/2 keyboard.
- Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk drivers.
Universal Serial Bus
- Supports two back Universal Serial Bus (U.S.B.) Ports and two front USB Ports
- Supports 48MHz USB
Hardware Monitor Function
- CPU Fan Speed Monitor
- System (Optional) and CPU Temperature Monitor
- System Voltage Monitor
Dimensions
- ATX form factor
- 22.2 cm X 30.5 cm (W x L)
BIOS
- AWARD legal BIOS
- Supports APM1.2, USB Function, ACPI
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
