Produktbeschreibung

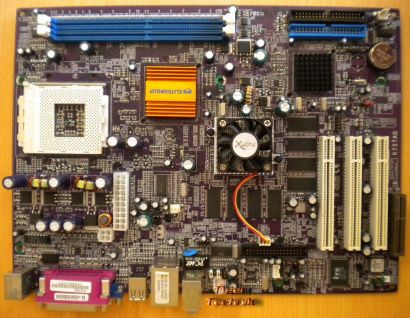

ECS Elitegroup K7S7AG V1.5A Mainboard + Blende
Technische Daten
CPU
Socket 462 for AMD Athlon™ XP/ Athlon™/ Duron™ processor
FSB 266/200 MHz
CHIPSET
SiS® 746 & 963L
North Bridge: SiS® 746
South Bridge: SiS® 963L
GRAPHICS
Integrated SiS Xabre200 with 64MB DRAM on board
- Unabhängig vom Arbeitsspeicher! Zieht nichts vom RAM ab für die VGA!
MEMORY
2 x 184-pin DDR DIMM socket support up to 2 GB
Support DDR400*/333/266 MHz DDR SDRAM (* means overclocking)"
EXPANSION SLOT
3 x PCI slots
1 x CNR slot
STORAGE
Support by SiS® 963L
4 x Ultra DMA133/100/66 devices
AUDIO
C-Media CMI9739A 6-channel audio CODEC
Compliant with AC'97 2.2 specification
LAN
VIA® VT6103 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x VGA port
1 x Parallel port (LPT)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply Connector & 4-pin 12V Connector
1 x FDD connector supports one 360K~2.88MB FDD
2 x IDE connectors
1 x IrDA for SIR header
1 x Speaker header
1 x USB 2.0 header support additional 2 USB ports
1 x Front panel switch/LED header
1 x Front panel audio header
CD in1/CD in2 header
CPUFAN/VGAFAN/SYSFAN connectors
SYSTEM BIOS
Award BIOS with 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Form Factor, 305*224mm
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
