ECS Elitegroup K7VMM Rev 1.2A Mainboard +Blende Sockel A 462 VGA Audio LAN* m126

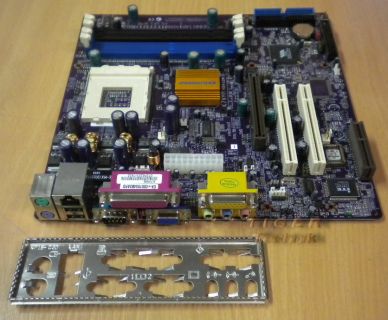

ECS Elitegroup K7VMM Rev 1.2A Mainboard + Blende

Sockel A 462 VGA Audio LAN

Technische Daten

CPU

Socket 462 for AMD Athlon™ XP/ Athlon™/ Duron™ processor

FSB 266/200 MHz

CHIPSET

VIA® KM266 & VT8233

North Bridge: VIA® KM266

South Bridge: VIA® VT8233

GRAPHICS

Integrated S3 ProSavage8 2D/3D Graphics

MEMORY

2 x 184-pin DDR DIMM socket support DDR266/200 DDR-RAM

2 x 168-pin SDRAM DIMM socket support PC133/100 SDRAM

Maximum: 2GB

Nur Wahlweise entweder DDR-RAM oder SDRAM verwendbar!

EXPANSION SLOT

1 x AGP 4X slot

2 x PCI slots

1 x CNR slot

STORAGE

Support by VIA® VT8233

4 x Ultra DMA100/66 devices

AUDIO

VIA® VT1612A 2-channel audio CODEC

Compliant with AC'97 2.2 specification

LAN

VIA® VT6103 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O

1 x PS/2 keyboard & PS/2 mouse connectors

2 x USB 1.1 ports

1 x RJ45 LAN connector

1 x VGA port

1 x Parallel port (LPT)

1 x Serial port (COM1)

1 x Game port

1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

1 x 20-pin ATX Power Supply Connector

1 x FDD connector supports one 360K~2.88MB FDD

2 x IDE connectors

1 x IrDA for SIR header

1 x Speaker header

2 x USB 1.1 header support additional 4 USB ports

1 x Front panel switch/LED header

1 x Front panel audio header

CD in1/CD in2/AUX in header

CPUFAN/SYSFAN connectors

WOL connector

SYSTEM BIOS

Award BIOS with 2Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Supports ACPI revision 1.0 specification

FORM FACTOR & LAYERS

Micro-ATX Size (244mm*244mm), 4 Layers

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
