ECS Elitegroup L7S7A2 REV: 1.1 Mainboard + Blende Sockel A 462 Audio LAN* m137

ECS Elitegroup L7S7A2 REV: 1.1

Mainboard + Blende

Technische Daten:

CPU

º Socket 462 for AMD Athlon™ XP/ Athlon™/ Duron™ processor

º FSB 333*/266/200 MHz ( * means overclocking )

CHIPSET

º SiS® 746 & 963L

º North Bridge: SiS® 746

º South Bridge: SiS® 963L

MEMORY

º 3 x 184-pin DDR DIMM socket support up to 3 GB ( DDR400 up to 2 GB )

º Support DDR400*/333/266 MHz DDR SDRAM (* means overclocking)"

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.

For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 x AGP 8X/4X slot

º 5 x PCI slots

º 1 x CNR slot

STORAGE

º Support by SiS® 963L

• 4 x Ultra DMA133/100/66 devices

AUDIO

º C-Media CMI9739A 6-channel audio CODE

º Compliant with AC'97 2.2 specification

LAN

º Realtek RTL8201BL 10/100 Mbps Fast Ethernet PHY

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connector

º 4 x USB ports

º 1 x RJ45 LAN connector

º 1 x Parallel port (LPT)

º 2 x Serial ports (COM1 & COM2)

º 1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 20-pin ATX Power Supply Connector

º 1 x FDD connector supports one 360K~2.88MB FDD

º 2 x IDE connectors

º 1 x IrDA for SIR header

º 1 x USB 2.0 header support additional 2 USB ports

º 1 x SPDIF out header

º 1 x Front panel switch/LED header

º 1 x Front panel audio header

º CD in1/CD in2 header

º CPUFAN/BAKFAN/CHSFAN connectors

º WOL/WOM connectors

SYSTEM BIOS

º Award BIOS with 2Mb Flash ROM

º Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

º Supports ACPI revision 1.0 specification

FORM FACTOR

º ATX Form Factor, 305*190mm

 Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

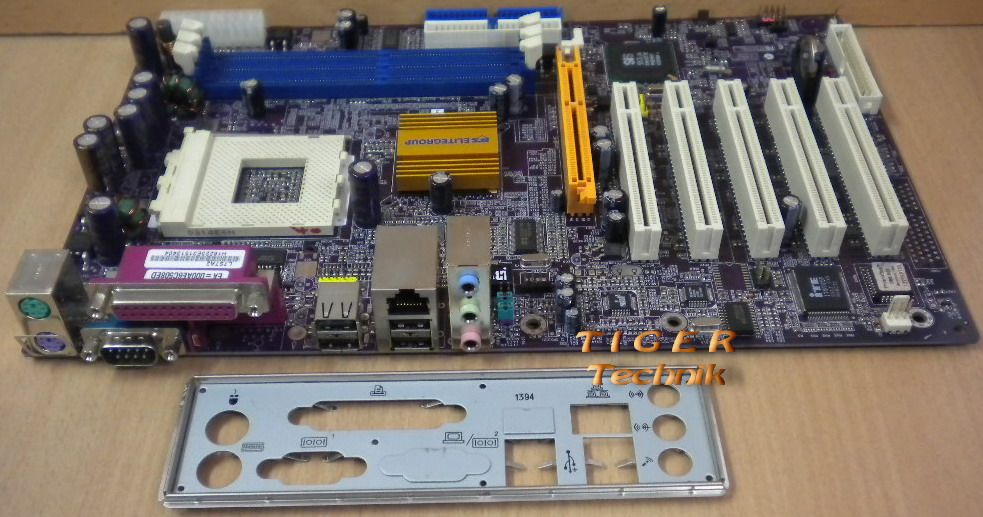

Abbildung ähnlich
