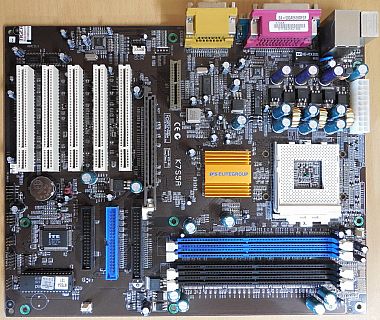

Elitegroup ECS K7S5A V3.1 LAN Mainboard +Blende Sockel 462 A DDR oder SDRAM*m572

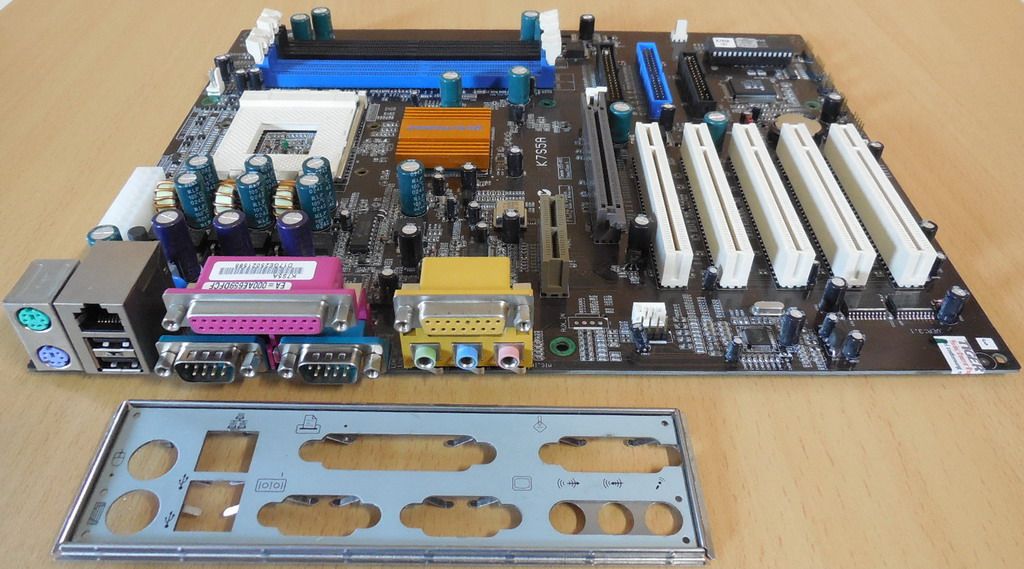

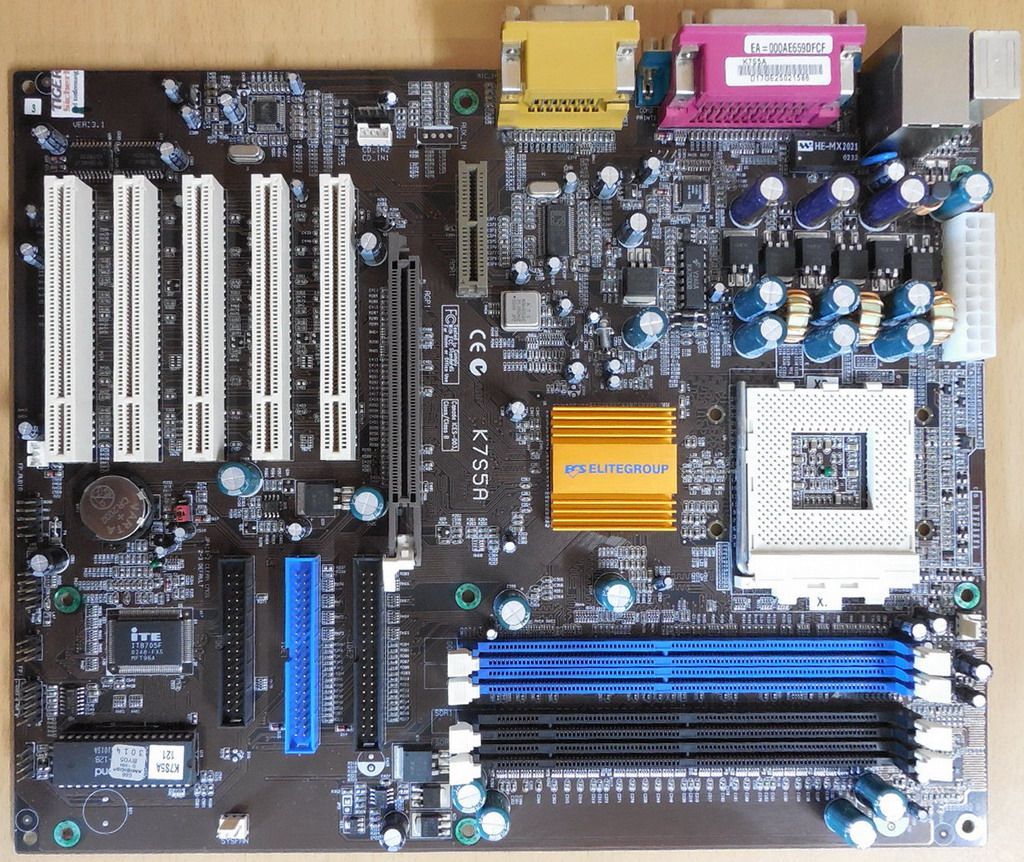

Elitegroup ECS K7S5A V3.1 LAN Mainboard + Blende Sockel 462 A DDR oder SDRAM

Technische Daten

CPU

Socket 462 for AMD Athlon™ XP / Athlon™ / Duron™ processors

FSB 266/200 MHz

CHIPSET

SiS® 735 North Bridge & South Bridge

MEMORY

Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!

2 x 184-pin DDR DIMM socket, support DDR266/200 2.5V DDR SDRAM

2 x 168-pin SDRAM DIMM socket, support PC133/100 3.3V SDRAM

Maximum RAM    1GB

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

1 x AGP 4X slot

5 x PCI slots

1 x AMR slot

STORAGE by SiS® 735

4 x  Ultra DMA100/66 devices

AUDIO

C-Media CMI9738 4-channel audio CODEC

Compliant with AC'97 2.2 specification

LAN

SiS900 10/100 Mbps Fast Ethernet Controller

REAR PANEL I/O

1 x PS/2 keyboard connector

1 x PS/2 mouse connector

2 x USB 1.1 ports

1 x RJ45 LAN connector

1 x Parallel port (LPT)

1 x Serial port (COM1)

1 x Game/Midi port

1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

1 x 20-pin ATX Power Supply Connector

1 x FDD connector supports one 360K~2.88MB FDD

2 x IDE connectors

1 x IrDA for SIR header

1 x Speaker header

1 x USB 1.1 header support additional 2 USB ports

1 x Front panel switch/LED header

1 x Front panel audio header

1 x CD in1 header

1 x CD in2 header

1 x 3-Pin CPU FAN connector

1 x 3-Pin SYS FAN connector

1 x WOL connector

1 x JP1 Keyboard Power Jumper

1 x Clear CMOS Jumper

SYSTEM BIOS

AMI BIOS with 2Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Supports ACPI revision 1.0 specification

FORM FACTOR

ATX Size, 305mm*244mm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
