Produktbeschreibung

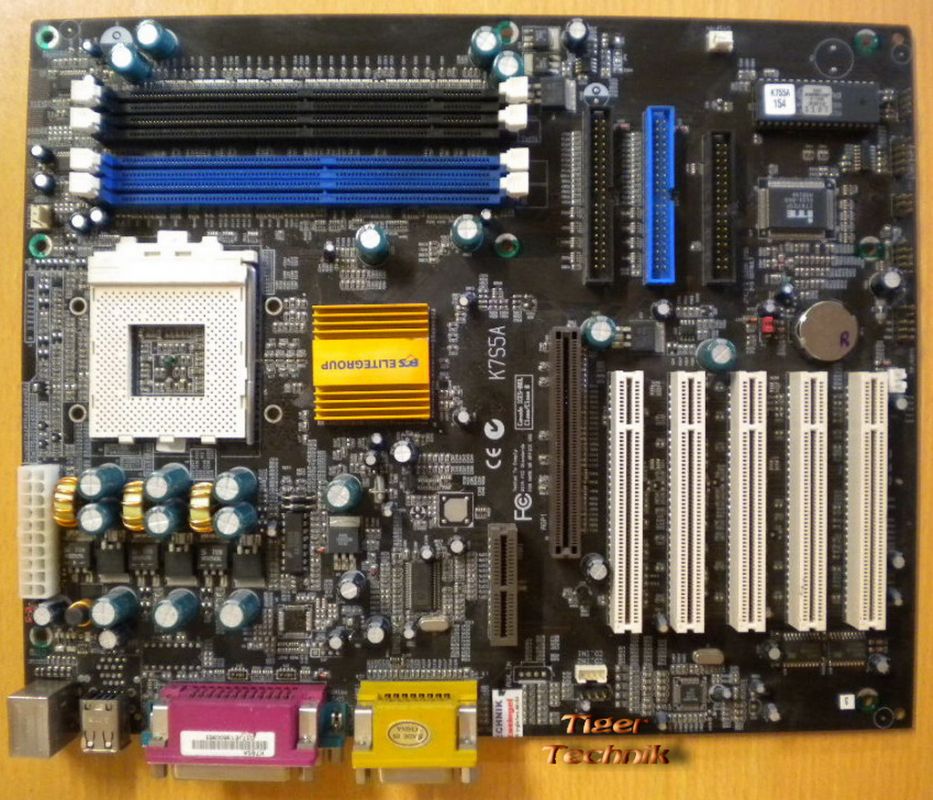

Elitegroup ECS K7S5A V3.1 Mainboard + Blende
Sockel 462 A DDR oder SDRAM
Technische Daten
CPU
Socket 462 for AMD Athlon™ XP/ Athlon™/ Duron™ processor
FSB 266/200 MHz
CHIPSET
SiS® 735 single chip
North Bridge & South Bridge:SiS® 735
MEMORY
Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!
2 x 184-pin DDR DIMM socket , support DDR266/200 DDR SDRAM
2 x 168-pin SDRAM DIMM socket support PC133/100 3.3V SDRAM
Maximum 1GB
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT
1 x AGP 4X slot
5 x PCI slots
1 x AMR slot
STORAGE
Support by SiS® 735
4 x Ultra DMA100/66 devices
AUDIO
C-Media CMI9738 4-channel audio CODEC
Compliant with AC'97 2.2 specification
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
2 x USB 1.1 ports
1 x Parallel port (LPT)
1 x Serial port (COM1)
1 x Game port
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS
1 x 20-pin ATX Power Supply Connector
1 x FDD connector supports one 360K~2.88MB FDD
2 x IDE connectors
1 x IrDA for SIR header
1 x Speaker header
1 x USB 1.1 header support additional 2 USB ports
1 x Front panel switch/LED header
1 x Front panel audio header
CD in1/CD in2 header
CPUFAN/SYSFAN connectors
WOL connector
SYSTEM BIOS
AMI BIOS with 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
ATX Size, 305mm*244mm
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
