Gigabyte GA-7DX+ Rev 1.0 Mainboard + Blende Sockel A 462 AGP 4X Audio DDR* m624

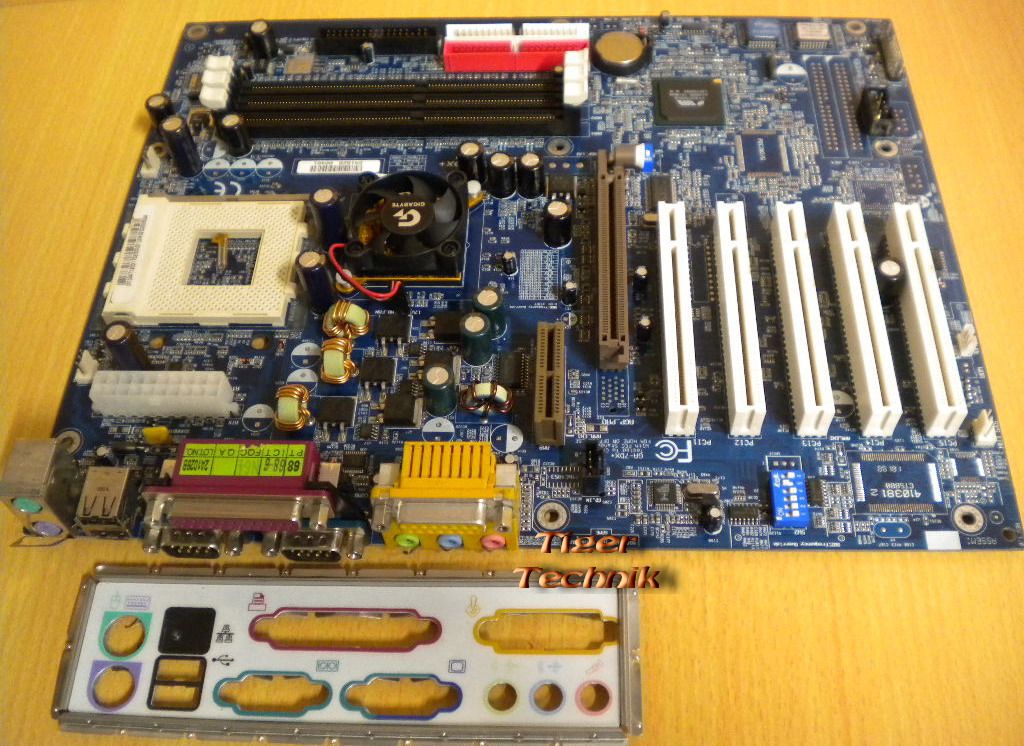

Gigabyte GA-7DX+ Rev 1.0 Mainboard + Blende

Sockel A 462 AGP 4X Audio DDR

Technische Daten

CPU

Socket A for AMD Athlon™/AMD Athlon™ XP/Duron™ 200/266MHz FSB processors

Supports 500MHz ~ 2000+ and faster

Auto/1.5V/1.525V/1.55V...1.85V(15 scales / 0.025V per scale) CPU Voltage adjustable

Supports CPU multiplier 5.0/5.5/.../12.5

Chipset

AMD 761™ north bridge and VIA 686B south bridge

AC97 codec

Memory

Supports up to 3GB DDR SDRAM (2GB unbrffered memory)

2.5V/2.7V/2.9V DDR memory voltage adjustable

3 DIMMs of 184-pin DDR sockets

Supports either PC1600/DDR200 or PC2100/DDR266 DDR memory

Supports 72bits ECC type DRAM integrity mode

Expansion Slots

1 x AGP 4X

1.5V/1.6V/1.8V AGP Pro voltage adjustable

5 x PCI slots support 33MHz and PCI 2.2 compliant

1 x AMR (Audio Modem Riser) slot

I/O Controller

2 x UDMA ATA 66/100 bus master IDE ports on board

1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board

1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board

2 x USB 1.1 ports on board, 2 x USB 1.1 ports by cable

IrDA TX / RX header

H/W Monitoring

4 cooling fan connectors

System health status detect and report by BIOS

H/W detect and report Power-in voltage, CPU voltage and CMOS battery status

BIOS

Dual AWARD BIOS, 2 x 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/WinMe compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable

AC recovery ON/OFF control

Auto-detect and report system health status

Supports DualBIOS™ and @BIOS™

Form Factor

ATX form factor, 4 layers PCB (30.5 x 24.4 cm)

Other Features

Suspend-To-RAM (STR); Supports Wake-On-LAN (WOL)

Supports Internal / External Modem Ring On

Supports USB KB Wake up from S3

Provides 4 fan power connectors

Poly fuse for keyboard over-current protection

Supports EasyTune III™ and Q-Flash

Power

ATX power connector

Power-on by LAN, RTC, Modem and Switch

Power-off by Windows 95/98/Me/2000/XP/NT shut down and Switch

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
