Produktbeschreibung

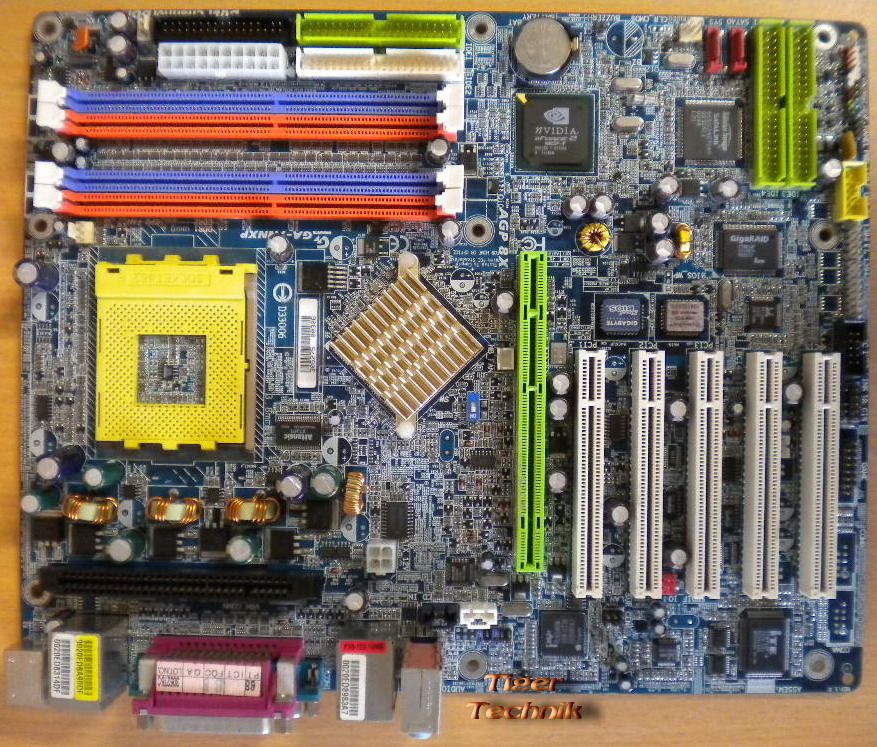

Gigabyte GA-7NNXP Rev.1.0 Mainboard
Sockel A/462 Flagship HighEnd Motherboard mit Blende
AGP 8x Dual LAN 2x SATA IDE-RAID für bis zu insgesamt 10 Geräte uvm.!
Technische Daten
Prozessor
Socket A for AMD AthlonXP / Athlon / Duron processor
Front Side Bus
400/333/266 MHz FSB
Chipsatz
NVIDIA nForce2 Ultra 400 System Platform Processor (SPP)
Media and Communications Processor - Turbo (MCP-T)
Super I/O: ITE IT8712F chip
Silicon Image sil3112A controller
GigaRAID ATA 133 RAID controller
Intel 82540EM Gigabit LAN chip
Realtek 8201 LAN PHY Chip
Realtek ALC650/655 Audio AC'97 Codec
2 x 4M bit flash ROM
Arbeitsspeicher
Type:Dual Channel DDR400/ 333/ 266- 184pin
Max capacity: Up to 3GB by 4 DIMM slots
Erweiterungssteckplätze
1 x AGP Pro slot (8x/4x-AGP 3.0 compliant, supports 1.5v display card only.)
5 x PCI slots (PCI 2.2 compliant)
1 x DPS slot
Interne I/O Anschlüsse
2 x Serial ATA connector
4 x UDMA ATA 133/100/66 Bus Master IDE connectors
1 x FDD connector
1 x USB 2.0/1.1 connectors(support 2 ports)
2 x IEEE 1394 connectors ( supports 3 ports)
S/P DIF input/output pin header
3 x cooling fan pin headers
WOL pin header
CD/AUX in
1 x Game/Midi connector
Rückseite I/O Panel
PS/2 Keyboard / Mouse
4 x USB 2.0/1.1 ports
2 x RJ45 ports
2 x COM ports
1 x LPT
Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
H/W Überwachung
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
BIOS
2x4M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/ CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
Form Factor
ATX form factor
30.5 x 24.4 cm
CPU/AGP/DIMM Einstellungen
CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
AGP Voltage / Clock adjustable via BIOS
DIMM Voltage / Clock adjustable via BIOS
Andere Funktionen
EasyTune™4 (support the function of hardware monitoring only)
Suspend to RAM (STR)
Supports USB KB / MS wake up from S3
Stromversorgung
ATX power connector and ATX 12V connector
Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
Lieferumfang

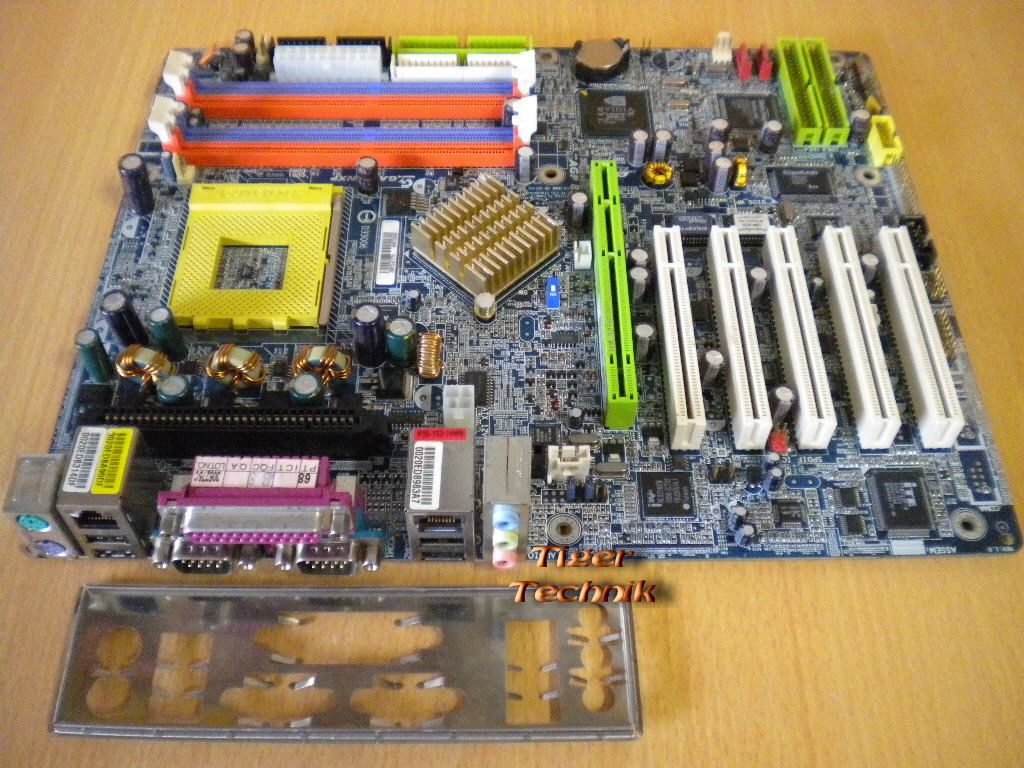

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
