Gigabyte GA-7VA Rev.1.0 Mainboard Sockel 462 AGP x8 PCI + Blende* m213

Gigabyte GA-7VA Rev.1.0 Mainboard

Sockel 462 AGP x8 PCI + Blende

Technische Daten:

Prozessor:

Socket A for AMD Athlon™ XP / Athlon™ / Duron™ processor

Chipsatz:

Northbridge : VIA KT400

Southbridge : VIA 8235

Super I/O : ITE IT8705F

AC97 Realtek ALC650 6-channel sound Chip

Front Side Bus:

333/266/200 MHz FSB

Arbeitsspeicher:

Type : DDR400(PC3200)*/ DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin

Max capacity : Up to 3GB by 3 DIMM slots

DDR400 (PC3200) support list

Interne I/O Anschlüsse:

1 x FDD port

2 x UDMA ATA133/100/66 Bus Master IDE ports

2 x USB 2.0 connectors (support 4 ports by cable)

2 x cooling fan pin header

Erweiterungssteckplätze:

1 x AGP slot (8x/4x, AGP 3.0 compliant), supports 1.5v display card only.

5 x PCI slots (PCI 2.2 compliant)

Rückseite I/O Panel

PS/2 Keyboard / Mouse

2 x USB 2.0 ports

2 x COM ports

Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector

1 x Game/Midi port

1 x LPT

CPU/AGP/DIMM Einstellungen:

CPU FSB adjustable via BIOS (1MHz-linear)

CPU Vcore Voltage adjustable via BIOS

AGP Voltage : N/A

Memory Voltage : N/A

Stromversorgung:

ATX power connector

Power-off by Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch

Form Factor:

ATX, Dimension : ( 29.5 x 20.0 cm )

H/W Überwachung:

System health status auto-detect and report by BIOS

H/W detect and report power-in voltage, CPU voltage, and Fan Speed Support auto detect temperature thermal shutdown function+

BIOS:

2Mbit flash RAM

Award BIOS with enhanced ACPI feature for  PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13  (>8.4GB) and Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable

AC recovery ON/OFF control

Andere Funktionen:

Suspend-To-RAM (STR)

Supports USB KB/MS Wake up from S3

Poly fuse for keyboard over-current protection

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

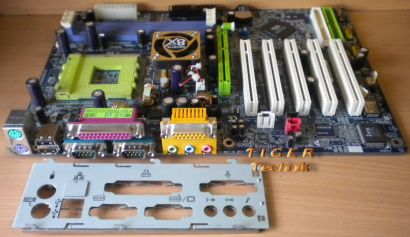

Abbildung ähnlich
