Produktbeschreibung

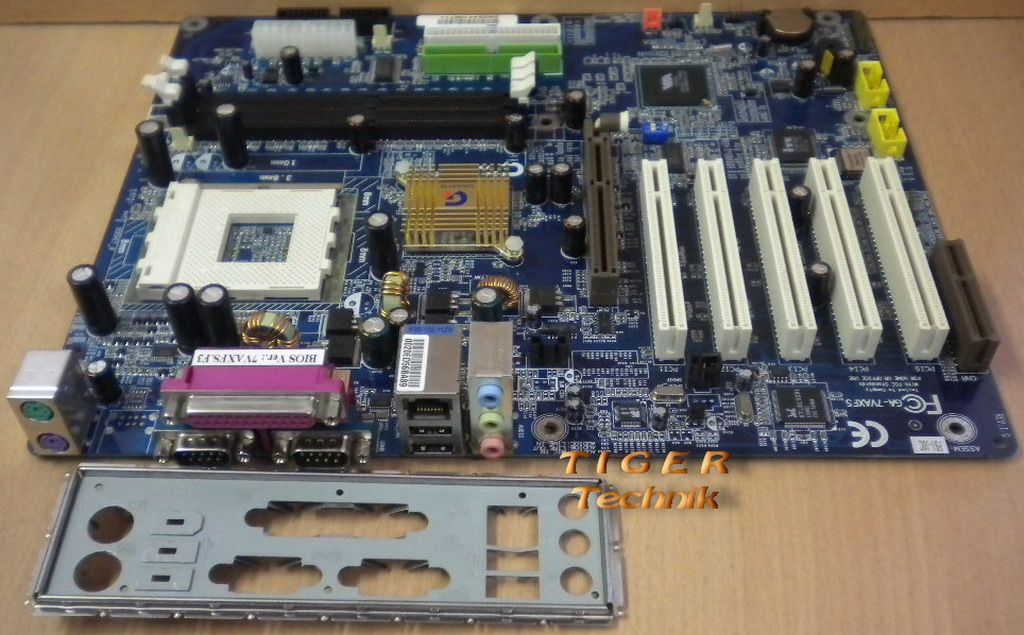

Gigabyte GA-7VAXFS Rev 1.0 Mainboard + Blende
Technische Daten
Prozessor
Socket A AMD Athlon™/AthlonXP™/Duron™(K7)
Front Side Bus
333/266/200 MHz FSB
Chipsatz
VIA KT400 Memory/AGP/PCI Controller(PAC)
VT8235 V-LINK Client Highly Integrated
Arbeitsspeicher
3x 184-pin DDR DIMM sockets
Supports DDR DRAM 266/333 or PC1600/PC2100/PC2700
Supports up to 3GB DDR (Max)
Supports only 2.5V DDR DIMM
I/O Control: ITE8705F
Erweiterungssteckplätze
1x AGP slot supports 8X/4X mode & AGP 3.0 compliant
5x PCI slot supports 33MHz & PCI 2.2 compliant
1x CNR (Communication and Networking Riser) slot
On-Board IDE
2 IDE bus master (ATA133/100/66) IDE ports for up to 4 ATAPI devices
Supports PIO mode3,4 (ATA133/100/66) IDE & ATAPI CD-ROM
On-Board Peripherals
1x Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88M bytes
1x Parallel port supports Normal/EPP/ECP mode
2x Serial ports (COM A & COM B)
6x USB2.0/1.1 ports (2 x Rear, 4 x Front by cable)
1x Front Audio connector
1x IrDA connector for IR
On-Board Sound
Realtek ALC650 CODEC
1x Buzzer; Line Out / 2 front speaker; Line In; Mic In; SPDIF out; CD In
On-Board LAN
Build in RTL8100BL Chipset
1x RJ45 port
PS/2 Connector
PS/2 Keyboard interface and PS/2 Mouse interace
BIOS
Licensed Award BIOS, 2M bit FWH
Form Factor
24.3cm x 30.5cm ATX size form factor, 4 layers PCB
Additional Features
PS/2 KB/Mouse wake up from S1
USB devices wake up from S3
AC Recovery
Supports STR (Suspend-To-RAM)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
