Gigabyte GA-7VKMP-FA Mainboard Sockel 462 AGP PCI LAN VGA + Blende* m226

Gigabyte GA-7VKMP-FA Mainboard

Sockel 462 AGP PCI LAN VGA + Blende

Technische Daten:

Memory:

Supports PC1600/DDR200 or PC2100/DDR266 DDR memory

Supports up to 1GB DDR memory

2 DIMMs of 184-pin DDR sockets

BIOS:

2Mbit flash ROM

IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable

Supports @BIOS™ Live Update utility

Auto-detect and report system health status

AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/ME/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions

Back Panel Connectors:

2 x USB2.0 ports, 1 x COM port, 1 x RJ45 LAN port, 1 x LPT,  PS/2 Keyboard, PS/2 Mouse, 1 x VGA port

Power:

ATX 20-pin power connector, ncludes CPU, system fan control, ACPI states supported, Wake up from S1 and power on from S5

Expansion Slots:

1 x AGP, 4X slot, 3 x PCI slots support 33MHz and PCI 2.2 compliant

Internal I/O Connectors:

2 x ATA 66/100/133 bus master IDE ports

1 x FDD, 2 x HDD and 1 x CD audio input

IrDA(1x5) and COM2 on board

GBT standard front panel

2 x USB2.0 connectors (support 4 ports by cable)

H/W Monitoring:

System voltage detect (Vcore, VDD, Vcc,+12V)

H/W detect and report power-in voltage, CPU voltage

CPU/System fan revolution and temperature detect

CPU:

Socket A for AMD Athlon™/Athlon™ XP/Duron™ 200/266 MHz FSB processors

Supports 500MHz ~ 2000+ and faster

Chipset:

North-bridge: VIA KM266

South-bridge: VIA 8235

Realtek 8100 10/100Mb LAN chip

Sigmatel 9721 AC97 codec (Rev 3.2 and before)

Realtek ALC 101AC97 codec chip (Rev 3.3 and later)

Form Factor:

Micro ATX and 4 layers PCB ( 24.3 x 21.0 cm)

Other Features:

Suspend-To-RAM (STR)

Supports EasyTune III™, @BIOS™ and Q-Flash™

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

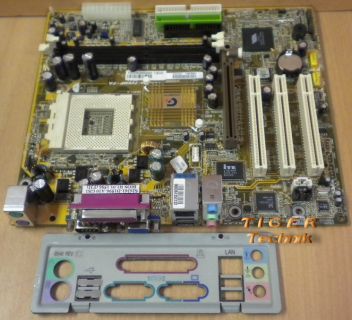

Abbildung ähnlich
