Gigabyte GA-7VTXH+ Rev 1.0 Sockel A 462 Mainboard +Blende LAN AGP 4X Audio* m617

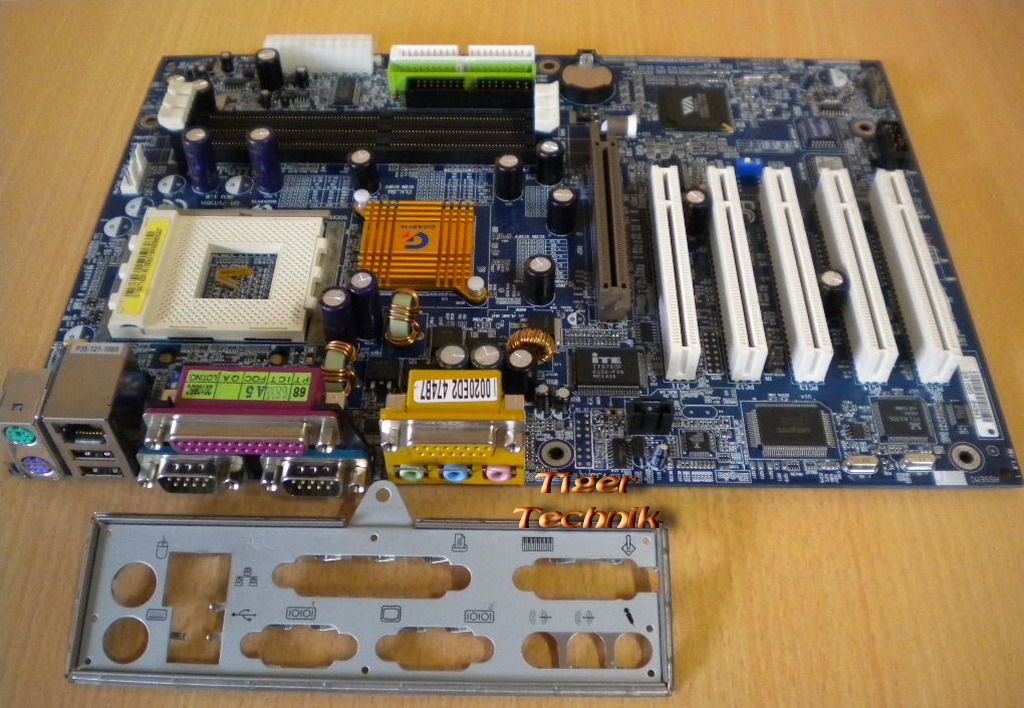

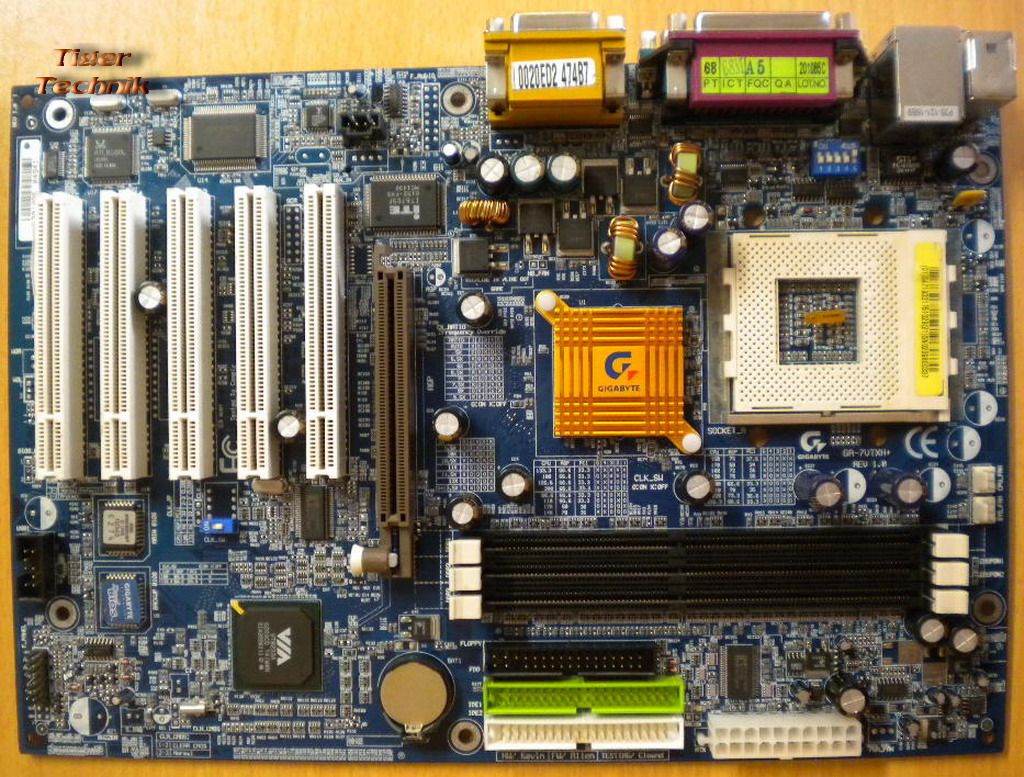

Gigabyte GA-7VTXH+ Rev 1.0 Mainboard + Blende

Sockel A 462 LAN AGP 4X Audio IDE

Technische Daten

CPU

Socket A for AMD Athlon™/Athlon™XP/Duron™ 200/266 MHz FSB processors

Supports 500MHz ~ 2000+ CPU and faster

FSB adjustable by BIOS up to 161MHz(no guarantee)

Supports CPU multiplier 5.0/5.5/.../12.5

CPU voltage overclockable by adding 5%, 10% CPU voltage

Chipset

VIA KT266A system controller north bridge

VIA VT8233A V-Link south bridge

Creative CT-5880 sound chip and AC97 Codec

Realtek 8100 10/100Mb LAN chip

Memory

Supports PC1600/DDR200 or PC2100/DDR266 DDR memory

Supports up to 3GB DDR memory

3 DIMMs of 184-pin DDR sockets

Expansion Slots

1 x AGP 4X slot

5 x PCI slots support 33MHz and PCI 2.2 compliant

I/O Controller

2 x UDMA ATA 66/100/133 bus master IDE ports on board

1 x RJ45 LAN port on board

1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board

1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board

2 x USB ports on board, 2 x USB ports by cable

1 x IrDA connector

H/W Monitoring

2 cooling fan connectors

System health status detect and report by BIOS

H/W detect & report power-in voltage, CPU voltage and CMOS battery status

BIOS

Dual BIOS, 2 x 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000   compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable

AC recovery ON/OFF control

Auto-detect and report system health status

Supports @BIOS™

Form Factor

ATX form factor, 4 layers PCB (21 x 30.40 cm)

Other Features

Suspend-To-RAM (STR)

Supports USB KB/MS Wake up from S3

Poly fuse for keyboard over-current protection

Supports EasyTune III™ and Q-Flash

Power

ATX power connector

Power-off by Windows 95/98/Me/2000/NT/XP shut down and Switch

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
