Gigabyte GA-7ZXR Rev3.0BA Mainboard +Blende Sockel A 462 VIA KT133A IDE RAID*m33

Gigabyte GA-7ZXR Rev 3.0BA Mainboard + Blende Sockel A 462 VIA KT133A Audio IDE RAID

Technische Daten

Prozessor

AMD 266/200 MHz Athlon™ / Duron™ Socket A processor

Supports 500MHz ~ 1.5GHz and faster

95~150*MHz 16 scares FSB setting (*Support by over-clocking)

Supports CPU multiplier 5.0/5.5/.../15

1.5V ~ 1.85V 16 scares CPU voltage setting

Chipsatz

VIA VT8363A (KT133A) Memory/AGP/PCI Controller (PAC)

VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)

Creative CT5880 PCI sound chip & AC´97 codec

Promise PDC 20265R ATA100 w/RAID chip

Arbeitsspeicher

3 x 168-pin DIMM sockets

Supports PC-100 / PC-133 SDRAM and VCM SDRAM

Supports up to 1.5GB DRAM

Supports 3.3V~3.5V 3 scares SDRAM voltage

Erweiterungssteckplätze

1 x AMR (Audio Modem Riser) slot (reverse)

1 x AGP slot supports 4X mode & AGP 2.0 compliant (voltage adjustable from 1.5v ~ 1.7v)

6 x PCI slots support 33Mhz & PCI 2.2 compliant

I/O

2 x UDMA ATA 33/66/100 bus master IDE ports on board

2 x Ultra ATA 33/66/100 RAID IDE ports on board

1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board

1 x Joystick, 1 x Line-in, 1 x Line-out and 1 x MIC onboard

2 x USB ports on board, 2 x USB ports by cable (optional)

IrDA TX / RX header ready (optional)

Stromversorgung

ATX power connector

Power-on by LAN, RTC, Modem & Switch

Power-off by Windows 95/98/2000/NT/ME Shut down & Switch

Form Factor

ATX form factor, 4 layers PCB (30.4*24.4 cm)

H/W Überwachung

CPU/System voltage detect (Vcore,VDD,Vcc,+12V)

H/W detect & report Power-in voltage, CPU voltage and CMOS battery status

CPU/System fan revolution & temperature detect

BIOS

Supports DualBIOS™ technology; 2Mbit flash RAM

AMI BIOS with enhanced ACPI feature for PC98/Win98/WinME compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable

AC recovery ON/OFF control; Auto-detect & report system health status

Supports @BIOS Live Update utility

Andere Funktionen

Suspend-To-RAM (STR) & Wake-On-LAN (WOL)

Supports Internal / External Modem Ring On

Supports USB KB/MS Wake up from S3

Supports EasyTune III

Poly fuse for keyboard over-current protection

North Bridge fan enhance cooling solution

Lieferumfang

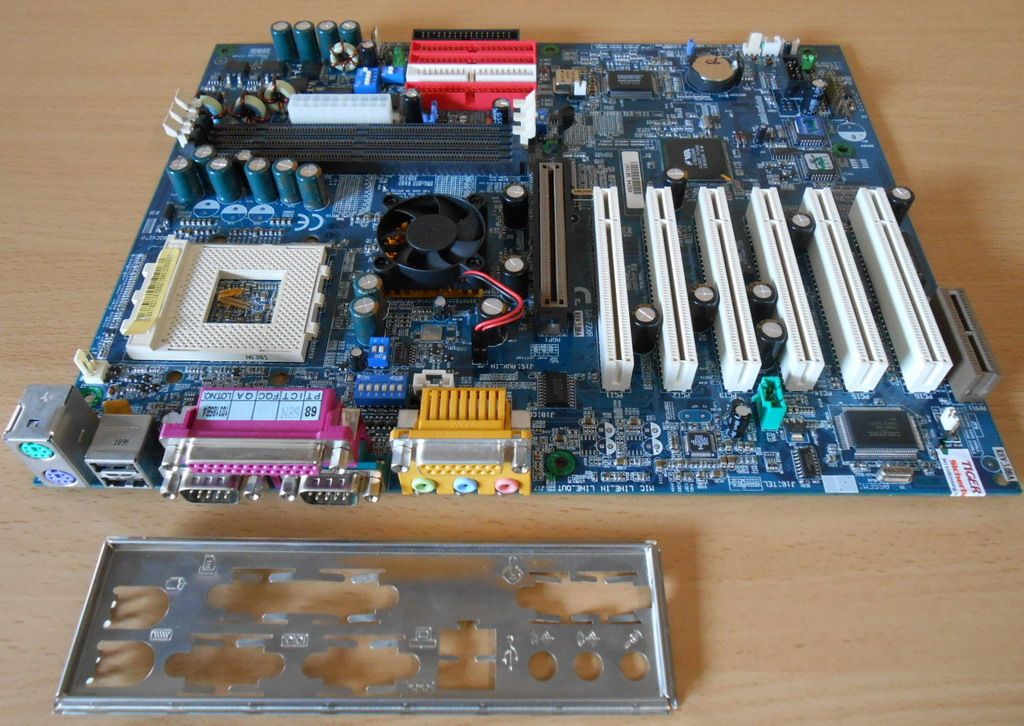

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

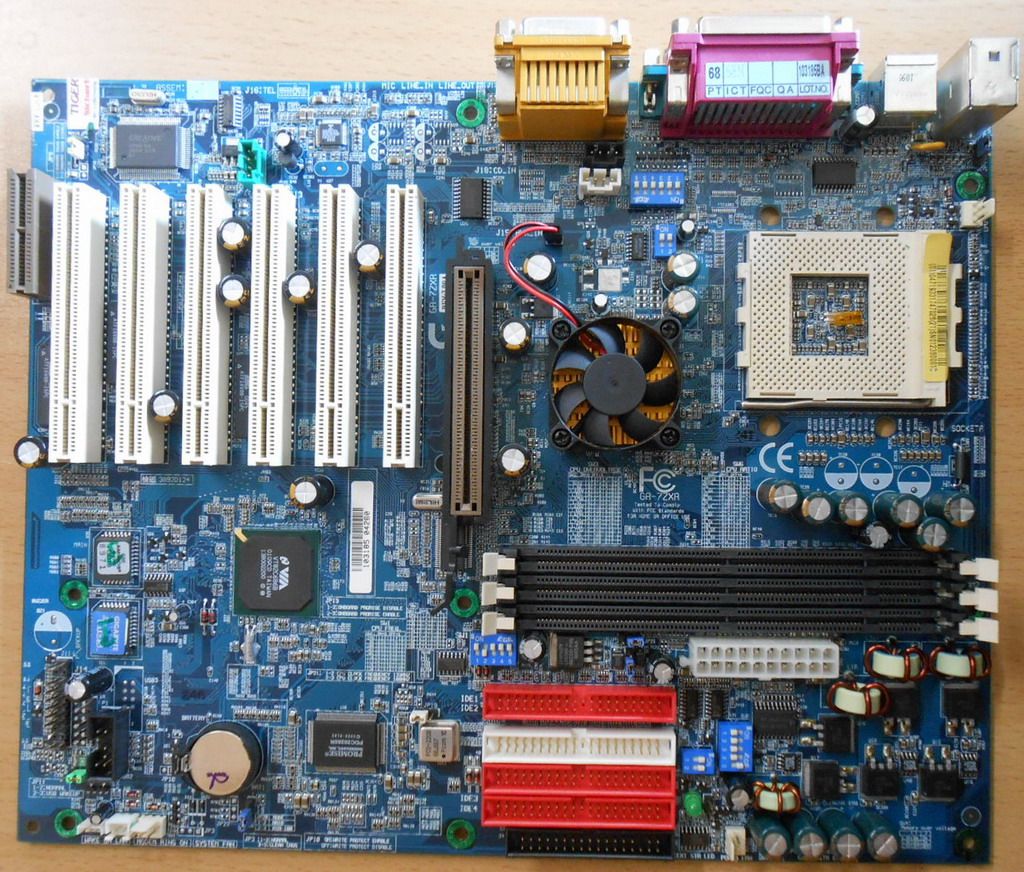

Abbildung ähnlich
