Produktbeschreibung

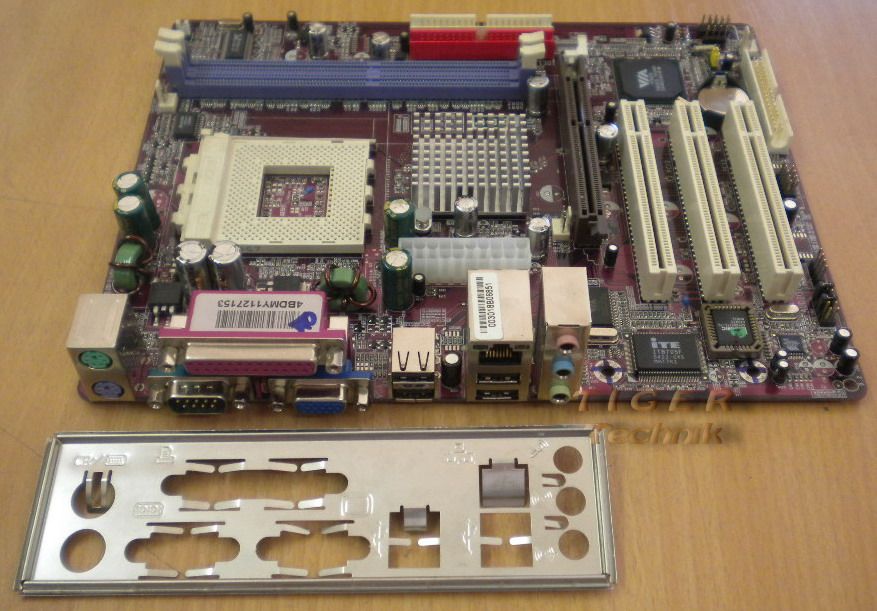

Jetway V2DP Mainboard + Blende
Technische Daten:
Design
∗ Micro ATX form factor 4 layers PCB size: 24.4x19.0cm
Chipset
∗ VIA KM266Pro Memory Graphic Host Chipset
∗ VIA VT8235 South Bridge
Clock Generator
∗ Support 200/266/333MHz (100/133/166MHz) Front Side Bus
Clock (CPU Bus clock)
∗ Support DDR200/266/333 system memory clock
∗ Support 33MHz PCI Bus clock
CPU Socket
∗ Support AMD Athlon 600MHz∼1.4GHz processor
∗ Support AMD Athlon XP 1500+~3000+ processor
∗ Support AMD Duron 600MHz~1.8GHz processor
∗ Support 200/266/333MHz (100/133/166 MHz) CPU Bus clock
∗ Reserves support for future AMD Athlon/Duron processors
Memory Socket
∗ 184-pin DDR DIMM socket x2 support
DDR200/DDR266/DDR333 SDRAM
∗ Expandable to 2GB
Expansion Slot
∗ AGP slot x1 support AGP 2.0 & 4X mode (V2DP/V2DU)
∗ 32-bit PCI slot x3
Integrated VGA
∗ UniChrome™ graphic acceleration
∗ VGA Memory share 16MB∼64MB from system memory
∗ 24-bit true-color RAMDAC up to 250MHz pixel rate
∗ Resolution up to 1920x1440
Integrated IDE
∗ Two PCI IDE controllers support PCI Bus Mastering, ATA
PIO/DMA and the ULTRA DMA 66/100/133 functions that deliver
the data transfer rate up to 133 MB/s
On board LAN
∗ VIA VT6103 LAN PHY support 10/100Mbps full duplex, half
duplex operation
Audio
∗ AC’97 Digital Audio controller integrated
∗ AC’97 Audio CODEC on board
BIOS
∗ Award 2MB Flash ROM
Multi I/O
∗ PS/2 keyboard and PS/2 mouse connectors
∗ Parallel port x1
∗ Serial port x1
∗ USB2.0 connector x4, USB2.0 headers x1 (cable option)
∗ Audio connector (Line-in, Line-out, MIC)
Handbuch unter folgendem Link: http://www.jetway.com.tw/jw/motherboard_view.asp?productid=34&proname=V2DP
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
