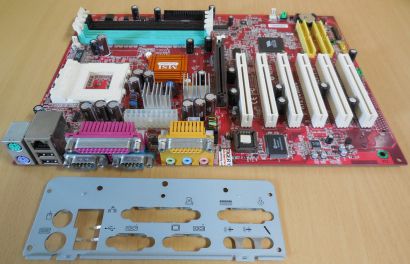

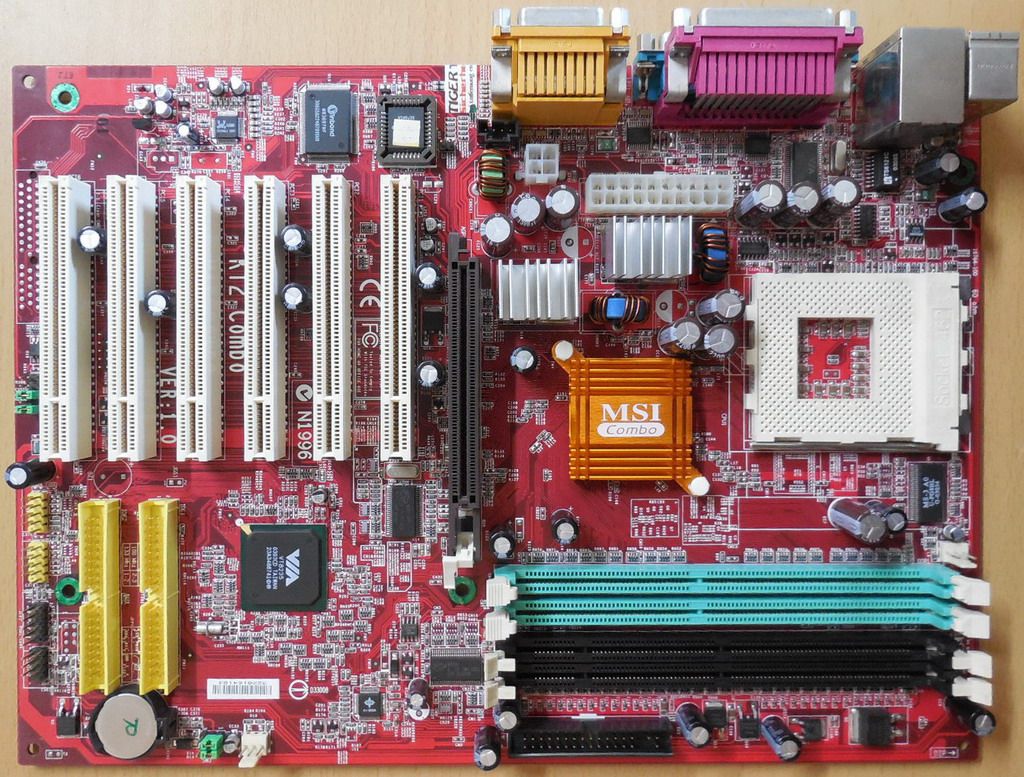

MS-6764 Ver1.0 KT2 Combo Mainboard +Blende Sockel A 462 DDR SDRAM LAN Audio*m350

MS-6764 Ver 1.0 KT2 Combo-L Mainboard + Blende Sockel A 462 DDR SDRAM LAN Audio VIA KT266A

Technische Daten

CPU

Supports Socket A (Socket-462) for AMD® Athlon™ / Athlon™ XP / Duron™ processors

Supports 600MHz up to 2600+ MHz processor and higher

Chipset

VIA® KT266A chipset (522 BGA): FSB @200/266MHz; AGP 4X and PCI advanced high performance memory controller

VIA® VT8235 chipset (376 BGA): High Bandwidth V-link Client controller; Integrated Faster Ethernet LPC; Integrated Hardware Sound Blaster/Direct Sound AC97 audio; Ultra DMA 66/100/133 master mode PCI EIDE controller; Integrated USB2.0 Host Controller; ACPI

Main Memory

Support 2 x 184-pin unbuffered PC2100/PC1600 DDR SDRAM or 2 x 168pin unbuffered PC100/133 SDRAM

Supports up to 2GB memory size

Wahlweise nur DDR-RAM oder SD-RAM separat nutzbar! SDRAM und DDR-SDRAM können nicht gleichzeitig benutzt werden!

Slots

1 x AGP 4X slot (Accelerated Graphics Port 2.0 specification compliant)

6 x 32-bit Master PCI Bus slots (Supports 3.3V/5V PCI bus Interface)

On-Board IDE

An IDE controller on the VIA® VT8235 chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes. Can connect up to 4 IDE devices.

On-Board Peripherals

1 x Floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

2 x Serial ports (COM A + COM B)

1 x Parallel port supports SPP/EPP/ECP mode

1 x IrDA connector for SIR/ASKIR/HPSIR

1 x audio/game port

6 x USB 2.0 ports (Rear * 2/ Front * 4)

Audio Chip integrated

Direct Sound AC97 Audio

6-channel analog output

Internal I/O Connectors

1 x ATX 20-pin power connector

1 x ATX 4-pin 12V CPU power connector

1 x 3-pin CPU FAN connector

1 x 3-pin System FAN connector

1 x Chassis intrusion switch connector

1 x Front panel audio connector

2 x Front panel connectors

1 x Clear CMOS jumper

1 x FSB Clock Override jumper

1 x CD-in connector

1 x D-Bracket 2 connector

2 x USB 2.0 connector support additional 4 ports

1 x Floppy disk drive connector

2 x ATA133 connectors

Back Panel I/O Ports

1 x Parallel port

2 x Serial ports

1 x PS/2 keyboard

1 x PS/2 mouse

2 x USB 2.0 ports

1 x RJ45 LAN jack

1 x Audio jack

1 x audio/game port

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications

Others

Suspend to RAM/Disk (S3/S4)

PC2001 compliant

Voltage independent adjustment in CPU, DDR, AGP

Supports PCI 2.2 and DMI (Desktop Management Interface) through BIOS

Dimension & Mounting

ATX Form Factor; 30.4 cm (L)  x  22 cm (W); 6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
