MSI K7T266 Pro2 MS-6380 Ver 3.0 Mainboard + Blende Sockel A 462 DDR AGP Audio

Technische Daten

CPU Support

AMD Athlon (Thunderbird)

AMD Athlon XP (Palomino, Thoroughbred A)

AMD Duron (Spitfire, Morgan)

Chipset

VIA KT266A (VT8366A) / VT8233

NB/SB interconnection via 4x V-Link with 266 MB/s

Supports FSB 200/266 (100/133 MHz DDR)

Supports Advanced Configuration and Power Interface (ACPI)

Supports Universal Serial Bus (USB 1.1)

Supports up to AGP 4x (AGP 1.0/2.0, 3.3V/1.5V)

Supports PCI v2.2

Supports IDE/PATA with up to UDMA100

Memory

3 x 184-Pin DIMM sockets supporting DDR-SDRAM

Supports up to 3 DIMMs DDR 200/266; max. 3 GB RAM

Audio

VT8233 integrated VIA AC'97 audio controller

Avance Logic (Realtek) ALC201A AC'97 audio codec

AC'97 2.1 compliant

Internal I/O

1 x AGP 4x

5 x PCI

1 x CNR

2 x PATA/IDE

1 x Floppy port

2 x USB 1.1 headers

1 x WOL header

1 x MDM header

1 x IrDA TX/RX header

AUX-IN, CD-IN, MODEM-IN header

CMOS Jumper

On-board PC speaker

3 x 3-pin FAN headers (CPU/SYS/POW)

20 pin ATX power connector

Back Panel I/O

1 x PS/2 keyboard

1 x PS/2 mouse

2 x USB 1.1 ports

2 x RS-232 ports (COM)

1 x parallel port (LPT)

1 x game port

Audio connectors (line-out, line-in, mic-in)

BIOS

2MBit Flash EEPROM (PLCC32)

Award Modular BIOS v6.00PG

Supports Plug-and-Play (PNP); Advanced Power Management (APM); Advanced Configuration and Power Interface (ACPI); Desktop Management Interface (DMI)

Miscellaneous

ATX form factor

Winbond W83627HF-AW hardware monitoring and Super I/O chip

Cypress W312-02H clock generator (PLL)

Cypress W255H memory clock buffer (PLL)

Intersil HIP6301CB multiphase PWM controller (2-/3-/4-phase operation)

6 mounting holes

Others

The K7T266 Pro2 (MS-6380 Ver. 3) is a Socket A (462) motherboard built by MSI as an OEM for Fujitsu Siemens Computers (FSC) and Targa. FSC used this and other boards for building their SCALEO 600 AXP computers. Targa used it for building their Powerline WW 620 computers.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

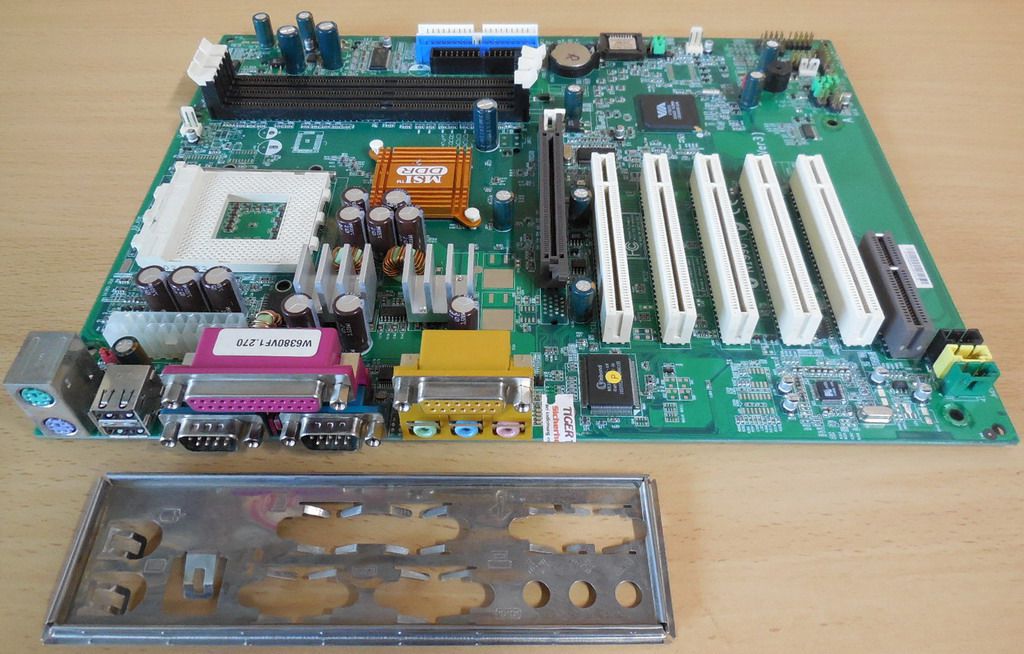

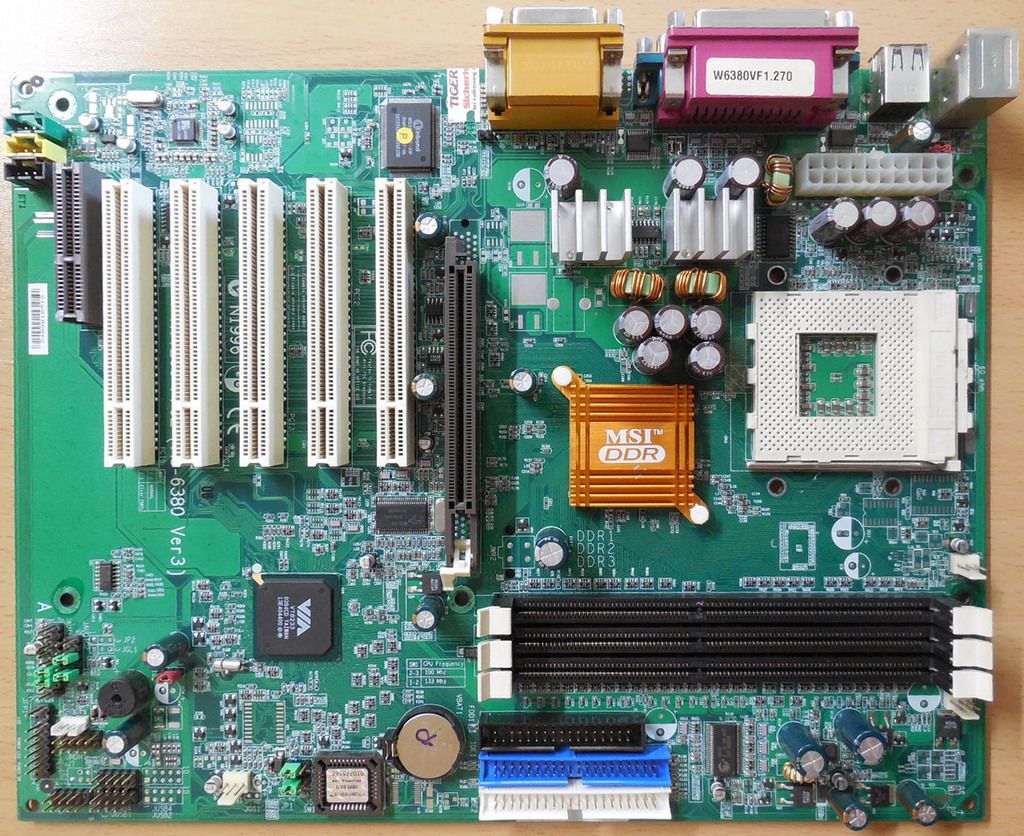

Abbildung ähnlich
