Produktbeschreibung

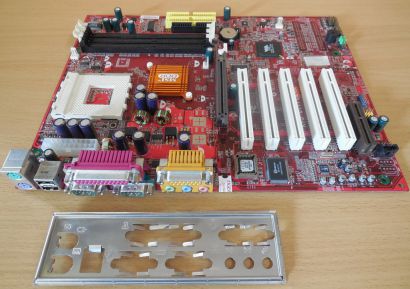

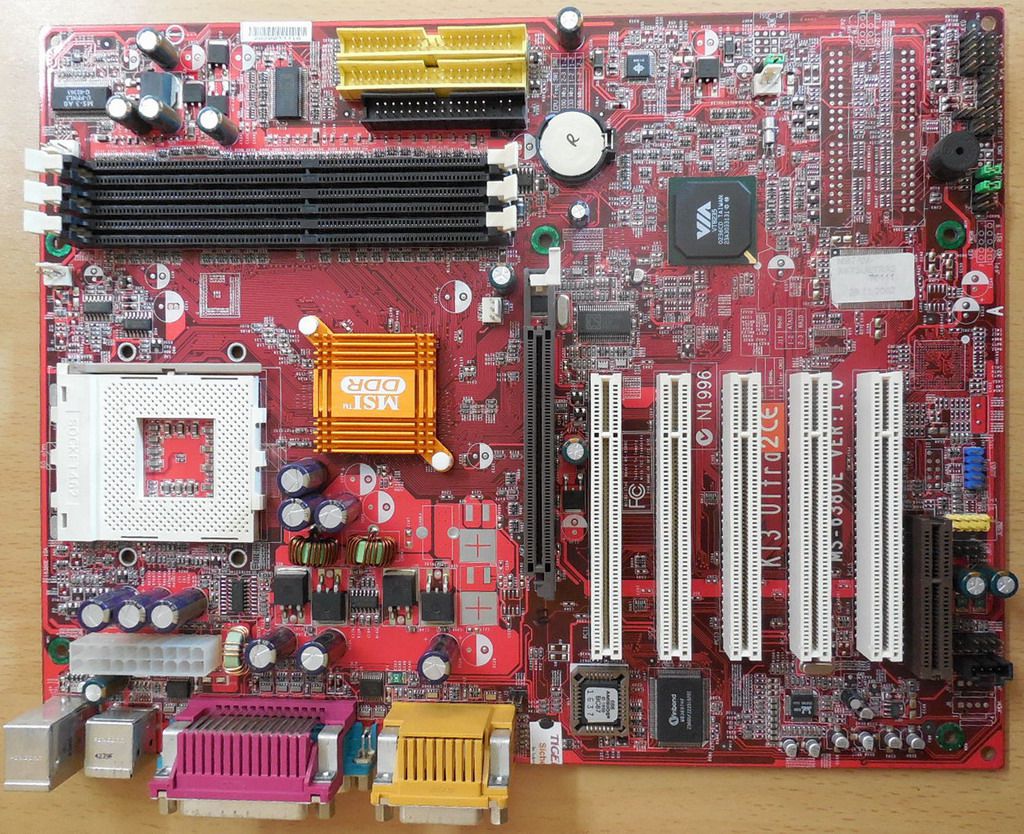

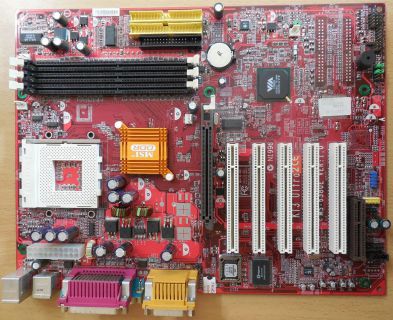

MSI KT3 Ultra 2 MS-6380E Ver 1.0 Mainboard + Blende Sockel A 462 AGP PCI SD-RAM
Technische Daten
CPU
Supports Socket A (Socket-462) for AMD® Athlon™/Athlon™ XP /Duron™ processors.
Supports up to 2200+ (1.8GHz) or higher speed.
Chipset
VIA® KT333 chipset
FSB @200/266MHz.
Supports DDR200/266/333 memory.
AGP 4X and PCI advanced high performance memory controller.
VIA® VT8235 chipset
Integrated Direct Sound AC97 audio.
Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller.
ACPI & PC2001 compliant enhanced power management.
Integrated USB 2.0 controller.
Main Memory
Supports three memory banks using two 184-pin DDR DIMMs.
Supports up to 3GB PC2700/2100/1600 DDR SDRAMs.
Supports 2.5v DDR SDRAM.
Slots
One AGP 2.0 (Accelerated Graphics Port) 1x/2x/4x slot.
Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
One CNR (Communication Network Riser) slot.
On-Board IDE
An IDE controller on the VT8235/VT8233A chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66/33 operation modes. Can connect up to four IDE devices.
On-Board Peripherals
1 x floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
2 x serial ports (COM A + COM B)
1 x parallel port supports SPP/EPP/ECP mode
1 x audio/game port
6 x USB 2.0 ports (2 x Rear / 4 x via header)
1 x Bluetooth connector for wireless connection.
Internal Connectors
1x CPU Fan Connector; 1x System Fan Connector; 1x PS Fan Connector; 1x NB Fan Connector; 1x 20-pin ATX Power Connector; 1x Buzzer; 1x CD-In Connector; 1x Front Audio Connector; 1x Front Panel Connector;
Audio
RealTek ALC650 6-channel audio.
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Others
Suspend to RAM/Disk (S3/S4).
PC2001 compliant.
Voltage independent adjustment in CPU, DDR, AGP
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
