Produktbeschreibung

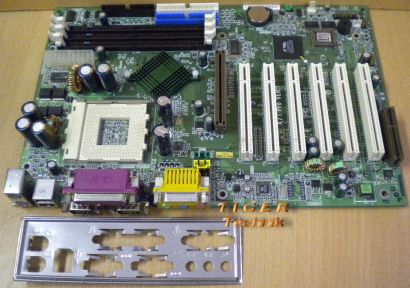

MSI MS-6330 K7T Pro Ver.1 Mainboard + Blende
Sockel A 462 AGP PCI SD-RAM
Technische Daten
CPU
Socket A for AMD® PGA Duron/Athlon processor.
Support 500MHz, 550MHz, 600MHz, 650MHz or higher processor.
Chipset
VIA® KT133
- FSB @200MHz
- AGP 4x and PCI Advanced high performance memory controller
- Support PC100/133 SDRAM
VIA® VT686A chipset. (352 BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)
- Dual bus Master IDE Ultra DMA33/66
- Integrated Hardware Soundblaster
- Direct Sound AC97 Audio
- ACPI
Clock Generator
100Mhz clocks are supported. (200MHz Internal System Bus)
Main Memory
Support six memory banks using three 168-pin unbuffered DIMM.
Support a maximum memory size of 1.5GB (32M x 8).
Support 3.3v SDRAM DIMM.
Slots
One (1) AGP(Accelerated Graphics Port) slot; Support AGP 2.0 1x/2x/4x
One (1) CNR(Communication Network Riser) slot.
Six (6) 32-bit Master PCI bus slots; Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the VIA® VT686A Chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 33/66 operation modes. Can connect up to four IDE devices.
On-Board Peripherals include
- 1 x floppy port supports 2 FDD with 360K, 720K, 1.2M, .44M and 2.88Mbytes.
- 2 x serial ports (COMA + COM B) or 1 serial port with 1 VGA port
- 1 x parallel port supports SPP/EPP/ECP mode
- 4 x USB ports (2 Rear Connectors/USB Front Pin Header)
- 1 x IrDA connector for SIR/CIR/ASKIR/HPSIR.
- 1 x Audio/Game port
Audio Chip Integrated
- Direct Sound AC97 Audio
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor: 30.4cm x 20.3cm
Mounting
6 mounting holes.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
