MSI MS-6330 K7T Turbo Ver 3 Mainboard +Blende Sockel A 462 AGP 6xPCI Audio* m302

MSI MS-6330 K7T Turbo Ver 3 Mainboard + Blende Sockel A 462 AGP 6xPCI Audio

Technische Daten

Hersteller       MSI

Model       K7T Turbo Ver 3 (MS-6330)

CPU

Socket A / 462 for AMD Athlon™ / Duron™ Processors

Support 600MHz up to 1.5GHz processor

Chipsatz

VIA® KT133A chipset (552 BGA)

- AGP 4x and PCI Advanced high performance memory controller

- Support PC100/133 SDRAM, & VCM technology

VIA® 686B chipset (352 BGA)

- Enhanced Power Management Features

- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)

- Dual bus Master IDE Ultra DMA33/66/100

- Integrated Hardware Soundblaster

- Direct Sound AC97 Audio

- ACPI

Clock Generator

100MHz/133MHz clocks are supported

Memory

Support six memory banks using three 168-pin unbuffered DIMM

Support a maximum memory size of 1.5GB (32M x 8)

Support 3.3v SDRAM DIMM

Slots

1 x AGP(Accelerated Graphics Port) slot (AGP specification compliant; Support AGP 2.0 1x/2x/4x)

1 x CNR (Communication Network Riser) slot

6 x 32-bit Master PCI Bus slots (Supports 3.3v/5v PCI bus Interface)

On-Board IDE

An IDE controller on the VIA® 686B Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes

Can connect up to four IDE devices

Audio

VIA VT1611A Direct Sound AC´97 Audio Chip Integrated

LAN

NVIDIA® nForce™ 430 built-in Gigabit MAC with external Marvell® 88E1111 PHY supports NV Active Armor and NV Firewall

Interne Steckplätze

1 x JAUX1 AUX Line In connector

1 x JCD1 CD Audio In connector

1 x JPHONE Modem In connector

1 x J17 FSB Frequency Selector Jumper

1 x 3-pin CPU fan connector

1 x 3-pin System fan connector

1 x Floppy Disk Drive connector

1 x Primary IDE connector

1 x Secondary IDE connector

1 x JWOL1 Wake-Up on LAN connector

1 x JMDM1 Modem Wake Up connector

1 x USB connector for 2 additional USB ports

1 x 20-pin ATX power connector

1 x Front Panel connector

1 x Buzzer

1 x Clear CMOS Jumper

1 x JGL2 HDD LED connector

1 x JGS1 Power Saving Switch connector

1 x J2 IrDA Infrared Module connector

Externe Anschlüsse

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x Parallel port

2 x USB ports

2 x Serial ports (COM A + COM B)

1 x Joystick/Midi port

3 x Audio ports (Line-Out; Line-In; MIC)

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications

Dimension

ATX Form Factor; ca. 30.4cm x 23cm

Mounting

6 mounting holes

Lieferumfang

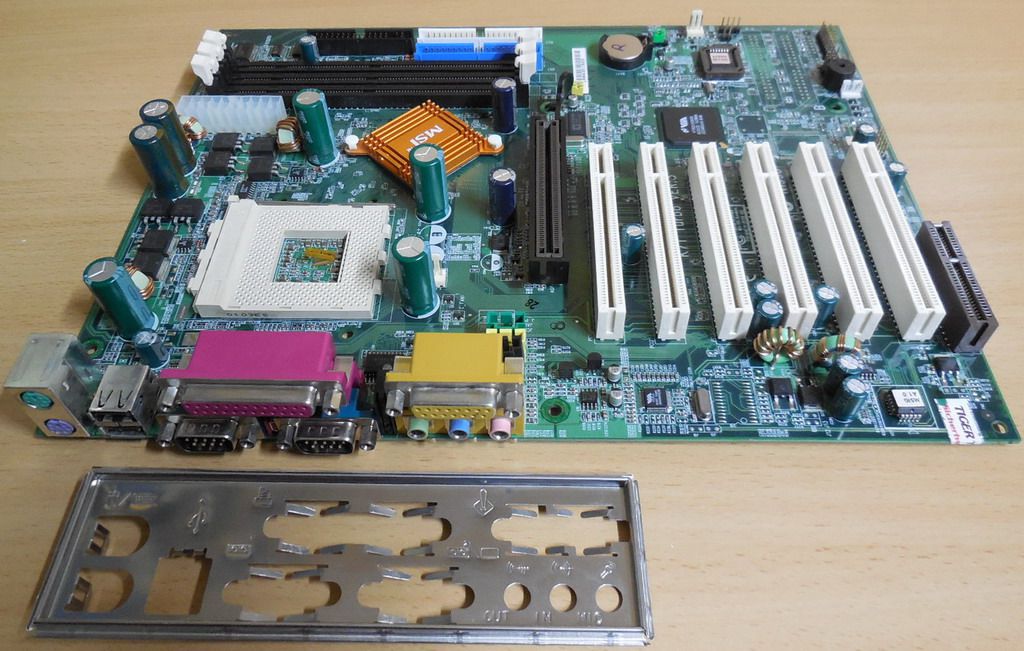

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
