Produktbeschreibung

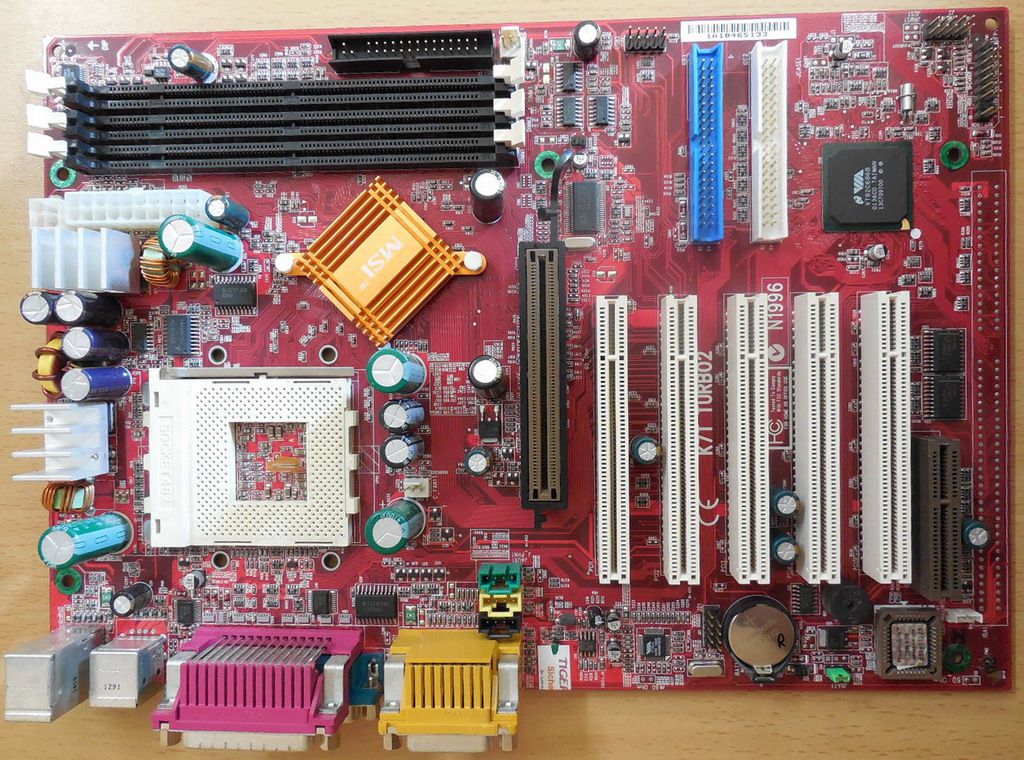

MSI MS-6330 K7T Turbo2 Mainboard +Blende Sockel A 462 SD-RAM AGP Audio
Technische Daten
CPU
Socket A for AMD® Athlon™ / Athlon XP / Duron™ processor
Supports 600MHz, 650MHz, 700MHz up to 1800+ MHz processor
Chipset
VIA® KT133A chipset (552 BGA)
- FSB @266MHz
- AGP 4x and PCI Advanced high performance memory controller
- Supports PC100/133 SDRAM
VIA® VT686B chipsets (352 BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)
- Dual bus Master IDE Ultra DMA 33/66/100 (686B)
- Integrated Hardware Soundblaster
- Direct Sound AC97 Audio
- ACPI
Clock Generator
133MHz clocks are supported (266MHz Internal System Bus)
Main Memory
Support six memory banks using three 168-pin unbuffered DIMM.
Support a maximum memory size of 1.5GB (32M x 8).
Support 3.3v SDRAM DIMM.
Slots
1 x AGP (Accelerated Graphics Port) slot; AGP specification compliant; Support AGP 2.0 1x/2x/4x
1 x CNR (Communication Network Riser) slot.
5 x 32-bit Master PCI bus slots; Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the VIA® VT686A/686B Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices.
On-Board Peripherals include
1 x floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
2 x serial ports (COMA + COM B)
1 x parallel port supports SPP/EPP/ECP mode
4 x USB ports
1 x IrDA connector for SIR/ASKIR/HPSIR.
1 x Audio/Game port
1 x D-Bracket™ pin header
Audio
Chip Integrated
Direct Sound AC97 Audio
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor 30.4cm x 21cm
Mounting
6 mounting holes
Lieferumfang

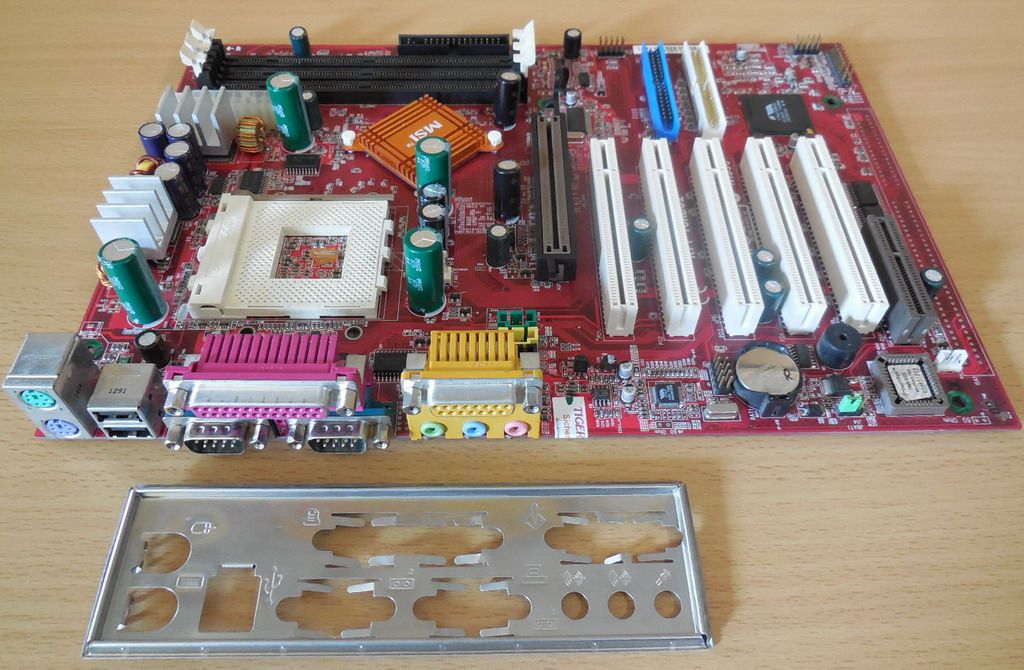

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
