Produktbeschreibung

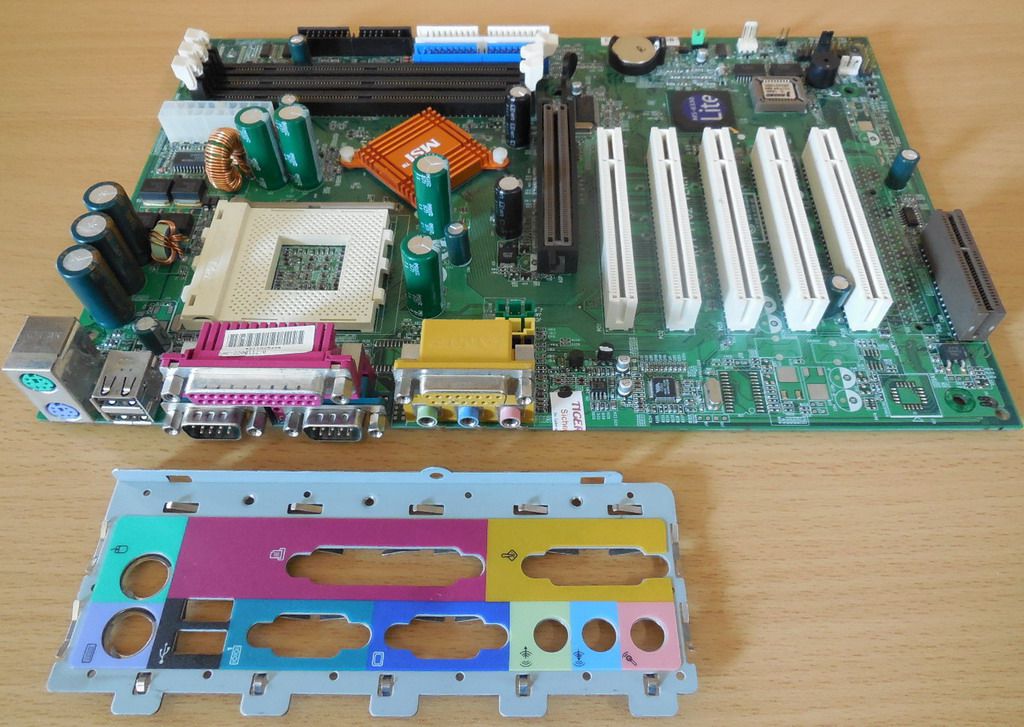

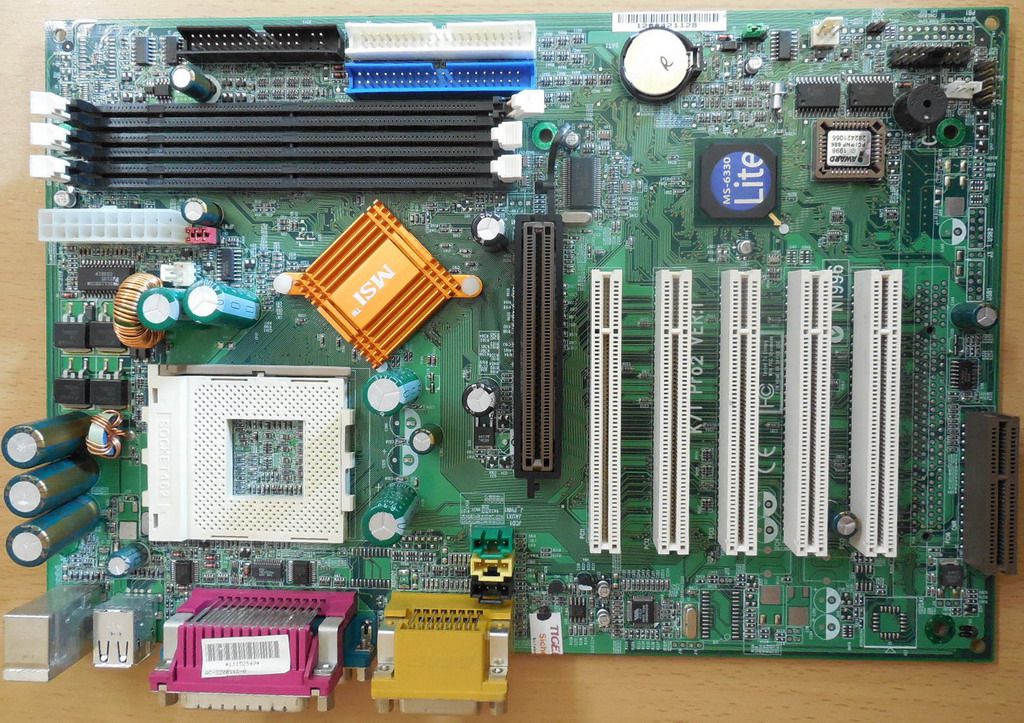

MSI MS-6330 Lite K7T Pro2 Ver1 Mainboard +Blende Sockel A 462 SD-RAM AGP
Technische Daten
CPU
Socket A for AMD® PGA Duron/Athlon processor
Support 500MHz, 550MHz, 600MHz, 650MHz up to 1.2GHz
Chipset
VIA® KT133
- FSB @200MHz
- AGP 4x and PCI Advanced high performance memory controller
- Support PC100/133 SDRAM
VIA® VT686A/686B chipset (352 BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)
- Dual bus Master IDE Ultra DMA33/66
- Dual bus Master IDE Ultra DMA100 (for VT686B only)
- Integrated Hardware Soundblaster
- Direct Sound AC97 Audio
- ACPI
Clock Generator
100MHz clocks are supported (200MHz Internal System Bus)
Main Memory
Support six memory banks using three 168-pin unbuffered DIMM.
Support a maximum memory size of 1.5GB (32M x 8).
Support 3.3v SDRAM DIMM.
Slots
1 x AGP (Accelerated Graphics Port) slot; AGP specification compliant; Support AGP 2.0 1x/2x/4x
1 x CNR (Communication Network Riser) slot.
5 x 32-bit Master PCI bus slots; Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the VIA® VT686A/686B Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes. (The optional VT686B can support up to Ultra DMA 33/66/100 modes.)
Can connect up to four IDE devices.
On-Board Peripherals include
1 x floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
2 x serial ports (COMA + COM B)
1 x parallel port supports SPP/EPP/ECP mode
2 x USB ports
1 x IrDA connector for SIR/ASKIR/HPSIR.
1 x Audio/Game port
Audio
Chip Integrated
Direct Sound AC97 Audio
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension
ATX Form Factor 30.4cm x 20.3cm
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
