Produktbeschreibung

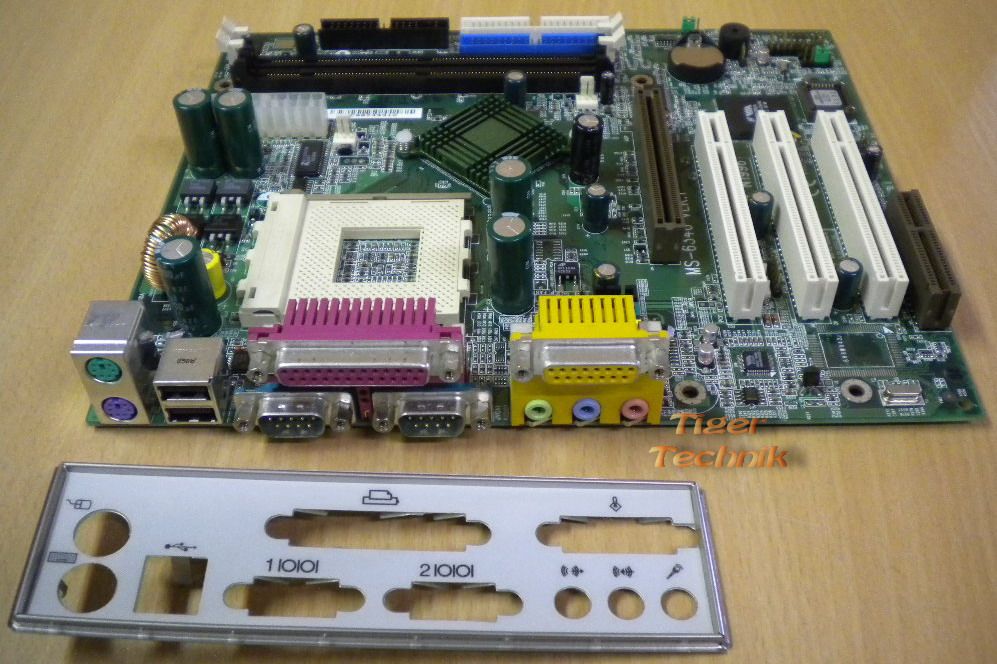

MSI MS-6340 Ver1 Mainboard+Blende
Sockel 462,A FSB200 PC133 AGP 4x
Ein günstiges Sockel 462/A Mini-Mainboard vom Premiumhersteller MSI.
Unter anderem in Hersteller PCs wie Fujitsu-Siemens Rechnern verbaut!
Technische Daten:
CPU
Socket A for AMD® PGA Duron/Athlon processor.
Support 550-1000MHz
Chipset
VIA® KT133 VT8363 chipset. (552 BGA)
- FSB @200MHz
- AGP 4x and PCI Advanced high performance memory controller
- Support PC100/133 SDRAM, & VCM technology
VIA® VT82C686A chipset. (352 BGA)
- Enhanced Power Management Features
- Integrated Super I/O (FDC, LPT, COM 1/2, and IR)
- Dual bus Master IDE Ultra DMA33/66/100
- Integrated Hardware Sound Blaster
- Direct Sound AC97 Audio
- ACPI
Clock Generator
100Mhz clocks are supported. (200MHz Internal System Bus)
Main Memory
Support four memory banks using two 168-pin unbuffered DIMM.
Support a maximum memory size of 1GB (32M x 8).
Support 3.3v SDRAM DIMM.
Slots
One AGP(Accelerated Graphics Port) slot.
- AGP specification compliant
- Support AGP 2.0 1x/2x/4x
One CNR(Communication Network Riser) slot.
Three 32-bit Master PCI Bus slots.
Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the VIA® VT82C686A Chipset provides IDE HDD/
CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.
Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDD with , 720K and 1.44M
- 2 serial ports (COMA + COM B) or 1 serial port with 1 VGA port.
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (2 Rear Connectors/USB Front Pin Header)
- 1 IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR.
- 1 Audio/Game port
Audio
Chip Integrated
-Direct Sound AC97 Audio.
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
Micro ATX Form Factor: 20.8cm x 24.3cm.
Mounting
6 mounting holes.
Lieferumfang
Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
