MSI MS-6367 Ver1.0 Mainboard+Blende+SPDIF Out Blende So 462, A* m05

MSI MS-6367 Ver1.0

Mainboard+Blende+SPDIF Out Blende So 462, A

Technische Daten:

CPU

- Supports Socket A for AMD® Duron™/Athlon™/Athlon XP processor

- Supports 650MHz, 700MHz, up to 1.5GHz or higher

Chipset

nVIDIA® nForce™ IGP 64/128 chipset

- AGP 4x (1.5V only)

- Supports 200/266 MHz FSB

- 64-bit / 128-bit DDR memory controller

- Integrated GeForce2 MX-class advanced Graphics Processing Unit

- LDT interface to MCP (800MB/sec max)

- Multiplex DVI / TV Interface with AGP Slot (MS-6952 option)

MCP / MCP-D (Media Communications Processor)

- Dual ATA100

- USB OHCI 1.0a up to 6 ports

- IEEE 802.3 compatible MAC (MII)

- Integrated Audio Processor Unit (MCP-D)

- AC ‘97 2.1 Compliant Interface

- Dolby Digital SPDIF OUT (MCP-D)

Main Memory

- Supports 2/3 DDR DIMM (IGP 64/128)

- Supports a maximum memory size of 1/1.5GB (IGP 64/128)

- Supports either 64- or 128-bit system memory (IGP 64/128)

Slots

- One AGP 2.0 4x 1.5V slot

- One CNR 1.0 slot

- Three 32-bit Master PCI 2.2 Slots

- Supports 3.3/5V PCI bus Interface

On-Board IDE

- An IDE controller on the MCP/MCP-D chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 100 operation modes.

- Can connect up to four IDE devices

Audio

- Chip integrated nVidia Audio

- APU integrated in MCP-D (Audio Processing Unit)

- Supports up to 256 hardware-processed voices or 64 hardware voices in 3D

- Dolby Digital output with S/P DIF interface

Video

- Integrated nVidia Geforce2 MX

- 256-bit 3D and 2D graphics accelerator

- 2nd generation T&L engine, NVIDIA Shading Rasterizer - NSR

- Multiplex DVI / TV interface with the AGP slot (MS-6952 option)

Network (Optional)

- Chip Integrated

- 10/100 BaseT Ethernet/Fast Ethernet

On-Board Peripherals

- On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

- 1 serial port (COMA)

- 1 parallel port supports SPP/EPP/ECP mode

- 6 USB ports (2 rear connectors and 2 USB front pin headers- 4 ports)

- 1 IrDA connector

- 1 Audio/Game Port

- 1 VGA Port

- 1 SPDIF Connector (MCP-D)

BIOS

- The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

- The mainboard provides a Desktop Management Interface (DMI) func-tion which records your mainboard specifications.

Dimension

- 9.6 inch x 9.6 inch

Mounting

- 6 mounting holes

Hier gehts zum Handbuch ---> http://217.110.237.70/Manuals/6367-englv1.0.pdf

Lieferumfang

Das Mainboard inkl. Blende & SPDIF Out Blende * ohne weiteres Zubehör * gebraucht *

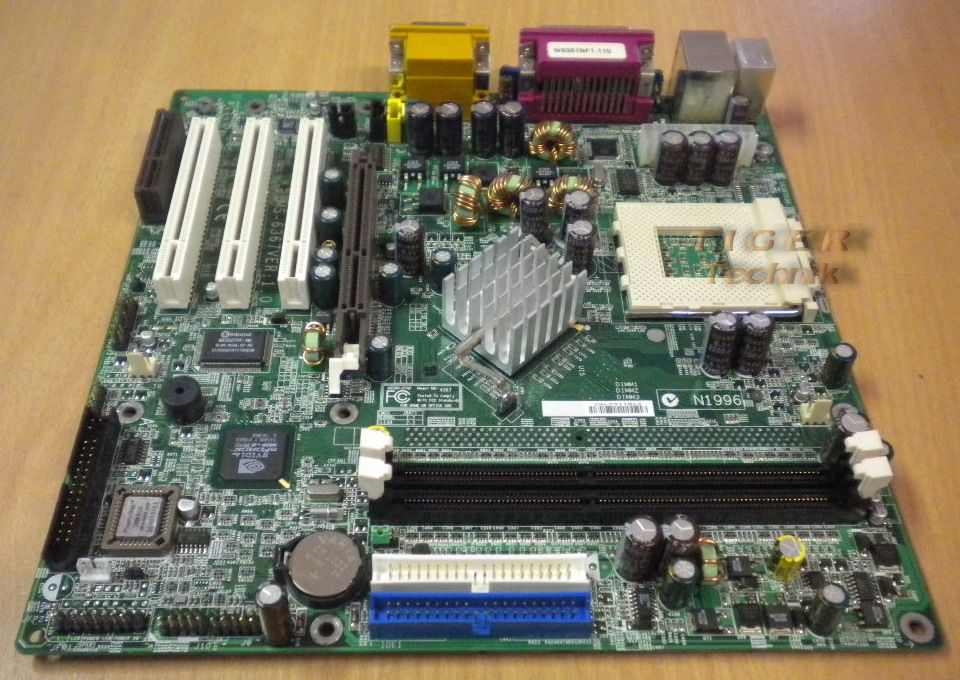

Abbildung ähnlich
