Produktbeschreibung

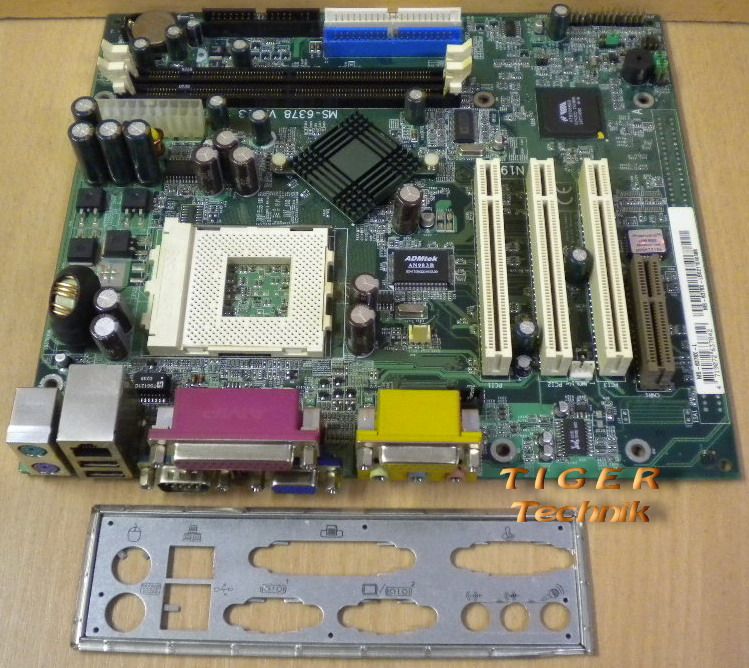

MSI MS-6378 Ver 3 Mainboard + Blende Sockel A 462 VGA Audio LAN PCI CNR
Technische Daten
CPU
Supports Socket A (Socket 462) for AMD® Duron™/ Athlon™/Athlon XP™ Processors.
Supports Athlon XP (Palomino™) 2000+ Processor
Supports Athlon (Thunderbird, Socket A) to 1.4GHz
Supports Duron (Socket A) to 950MHz
FSB
200/266MHz FSB.
Chipset
VIA® KLE133 VT8361A chipset (North-Bridge 510 BGA).
200/266MHz FSB.
Integrated Trident Blade 2D/3D video accelerator.
PCI Advanced high performance memory controller.
Supports PC100/133 SDRAM, VCM & ESDRAM technology.
VIA® 686B chipset. (South-Bridge 352 BGA)
Enhanced Power Management Features.
Integrated Super I/O (FDC/LPT/COM 1&2/IR).
Dual bus Master IDE Ultra DMA 33/66/100.
Integrated hardware SoundBlaster.
DirectSound AC97 Audio, ACPI.
Main Memory
Two 168-pin unbuffered DIMM using four memory banks.
Maximum memory size of 1GB.
Supports 3.3v SDRAM DIMM.
Slots
One CNR (Communication Network Riser) slot.
Three 32-bit Master PCI bus slots.
Supports 3.3v/5v PCI bus interface.
On-Board IDE
An IDE controller on the VIA 686B chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes. Can connect up to four IDE devices.
On-Board Peripherals
1 x Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
1 x Serial port (COM 1); 1 x Parallel port supports SPP/EPP/ECP mode.
4 x USB ports (2 x Rear connectors / 2 via Front pin header).
1 x IrDA connector for SIR/CIR/FIR/ASKIR/HPSIR.
1 x Audio/Game port.
1 x VGA port.
1 x LAN RJ-45 port.
Audio
Audio controller integrated in 686B chipset.
Software audio Codec ALC100.
Onboard Front Audio Pin Header.
Video
Integrated Trident Blade 2D/3D video accelerator.
AGP 2X ensures rich 3D graphics and video performance.
Shared with External Memory up to 8MB.
Network
ADMTek AN983B 10/100 BaseT Ethernet.
BIOS
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
Dimension
Micro ATX Form Factor: 24.3cm(L) x 21.5cm(W)
Mounting
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
