Produktbeschreibung
MSI MS-7061 Ver: 1.0 Mainboard + Blende
Technische Daten
CPU
Supports AMD ® AthlonTM/AthlonTM XP/DuronTM (Socket 462) processor.
Supports from 1100MHz up to 3000+ or above @ 266/333 MHz.
(For the latest information about CPU, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )
Chipset
VIA ® KM266 Pro chipset
- FSB @ 266/333 MHz
- Supports AGP 4X
VIA ® VT8237 chipset
- Integrated Direct Sound AC97 audio.
- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller.
- ACPI & PC2001 compliant enhanced power management.
- Integrated USB2.0 controller, 8237 supporting 8 ports.
Main Memory
Supports four memory banks using two 184-pin DDR DIMMS.
Supports maximum memory size up to 2GB for single channel mode.
(For the updated supporting memory modules, please visit http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )
Slots
One AGP (Accelerated Graphics Port) 1.5V 4X
Three PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
On-Board IDE
Dual channel master mode IDE controller on the VIA ® VT8237 Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes. Can connect up to four IDE devices.
On-Board Peripherals
On-Board Peripherals includes:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1 serial port and 1 VGA port.
- 1 parallel port supports SPP/EPP/ECP mode.
- 8 USB 2.0 ports (Rear * 4/ Front * 4).
- 3 audio (Line-In/Line-Out/Mic) ports.
- COM2 on board with pin header (Intel pin-define).
Audio
- VIA1617A codec.
- 5.1 channel AC.97 software Audio.
LAN
- VIA VT8237 integrated MAC + VIA 6103 PHY.
- 1 RJ45 LAN Jack.
BIOS
The mainboard BIOS provides .Plug & Play. BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function that records your mainboard specifications.
Dimension
Micro-ATX Form Factor: 245 mm x 192mm.
Mounting
6 mounting holes.
Others
Supports PS2 Keyboard/Mouse.
VRAM size maximum is up to 64MB. (Optional).
Hardware monitor is to monitor CPU.s temperature/voltage.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

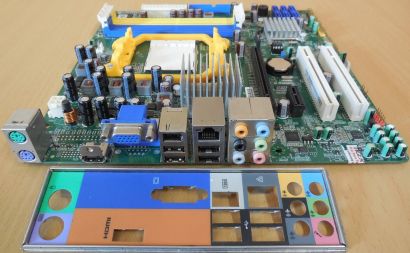

Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
