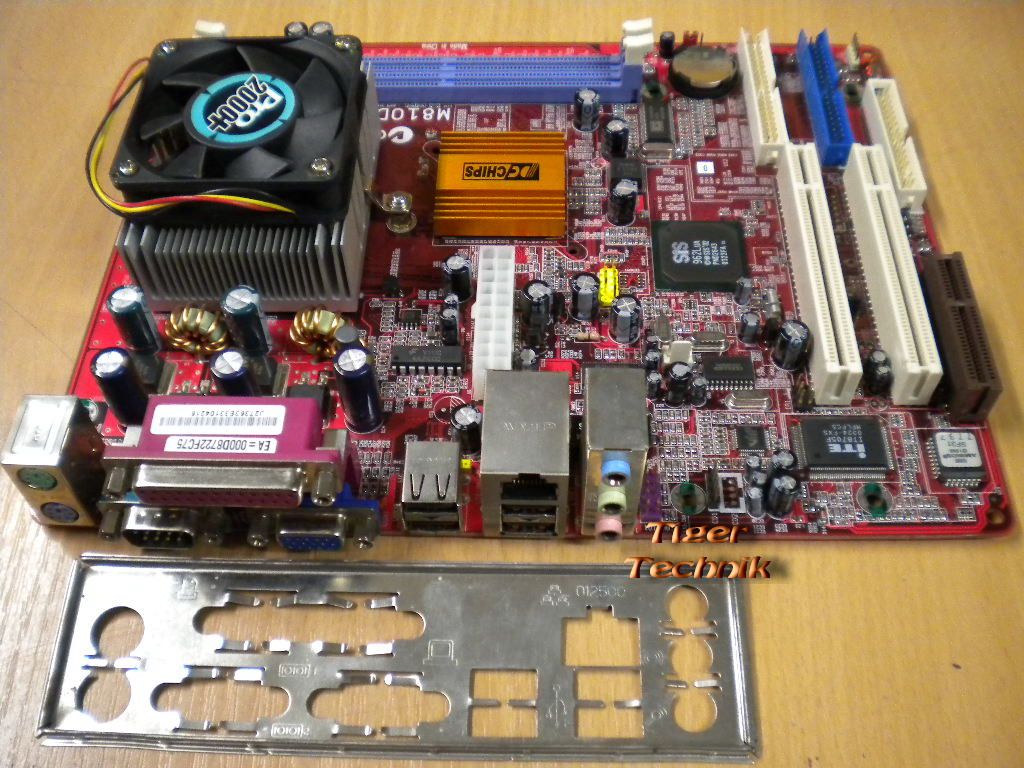

PC Chips M810D V7.5C mit Blende + CPU AMD Pro 2000+ OnBoard VGA LAN Audio* m311

PC Chips M810D V7.5C mit Blende + CPU AMD Pro 2000+

OnBoard VGA LAN Audio

Technische Daten

Hersteller: PC Chips

Model: M810D V7.5C

CPU: AMD Pro 2000+

FSB: 266/200MHz

Chipset: SiS 740/962L

VGA: Embedded Real256 3D Graphics with 64MB share memory

Memory: 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR266/200); max. 1GB

Expansion Slots: 2 x PCI; 1 x CNR

LAN: VIA VT6103 10/100Mbps Fast Ethernet PHY

Audio: C-Media CMI9738 4-channel audio Codec; Compliant with AC97 2.2 specification

IDE: 2 x UltraDMA 133/100/66

Back Panel I/O Ports:

1 x PS/2 keyboard

1 x PS/2 mouse

1 x Parallel Port

1 x Serial Port

1 x VGA port

4 x USB 2.0 Ports

1 x RJ 45 Port

1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors & Headers

20-pin ATX power supply connector

1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120

1 x IrDA for SIR header

1 x USB header support additional 2 USB2.0 ports

1 x Front panel switch/LED header

1 x Speaker header

CPU / SYS FAN headers

1 x CD in header

1 x Front panel audio header

1 x USB card reader header

System BIOS: AMI 2Mb Flash ROM; Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Full support for ACPI revision 1.0 specification

Form Factor: Micro-ATX Form Factor, 244*190mm

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
