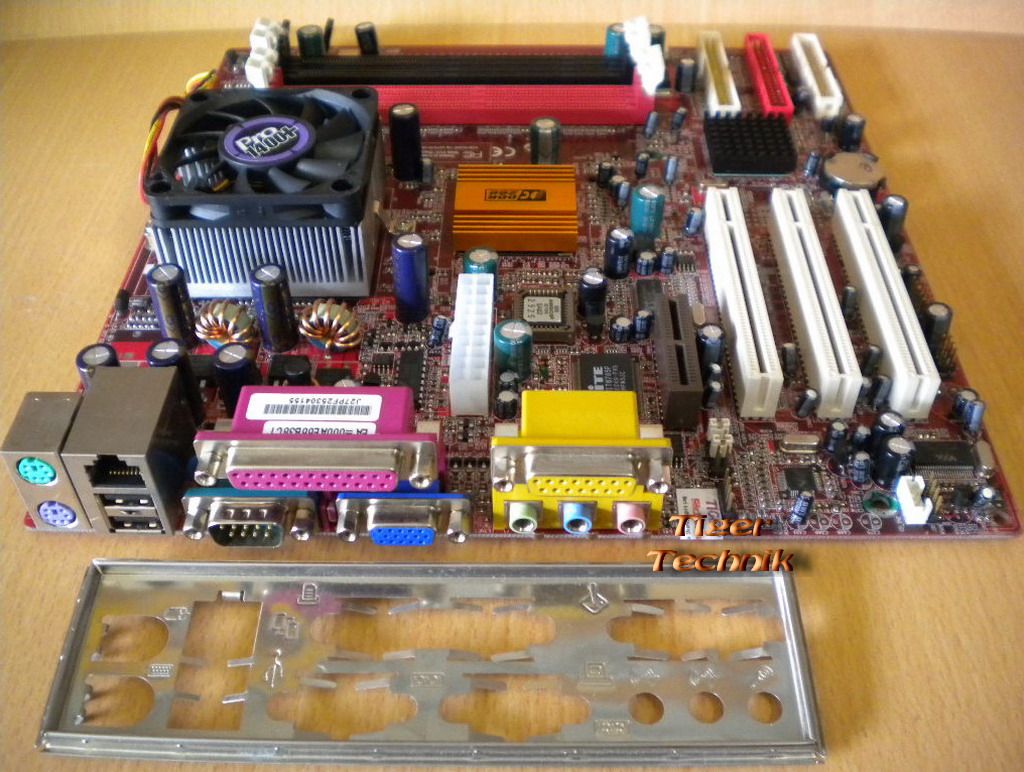

PC Chips M825CLU V5.2C mit Blende + CPU AMD Pro 1400+ OnBoard VGA LAN Audio*m632

PC Chips M825CLU V5.2C + Blende + CPU AMD Pro 1400+

OnBoard VGA LAN Audio

Technische Daten

Model: PC Chips M825CLU V 5.2

Processor: Onboard AMD Duron 1400+ processor

Chipset: VIA KM266 (NB) & VT8235 (SB)

Memory:

Two 184-pin DDR DIMM sockets for 2.5V DDR SDRAM (DDR266/200) and -Two DIMM sockets (PC133/PC100)

Maximum: 1GB (Unbuffered Memory)

Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!

Expansion Slots: 3 PCI slots, 1 CNR slot

IDE Controllers: Ultra DMA 66/100/133

Audio: AC '97 Audio Codec; Compliant with AC97 2.1 specification

Video: Integrated Savage 4 2D/3D Video Accelerator, 32MB shared memory

LAN: LAN - MAC integrated in VT8235 & PHY onboard

Rear Panel I/O Ports:

Support Plug and play function

PS/2 keyboard and mouse connectors

Four USB Ports and a LAN connector

One EPP/ECP mode parallel port

One 16550 high-speed serial I/O port

One VGA connector

Audio ports (Mic-in, Line-in, Line-out, CD-in)

Internal I/O Interface:

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 66/100/133)

Supports 360K~2.88M Byte, 3 Mode FDDs or LS120

ATX Power Supply Connector

Ports, headers and others

IrDA header

Extra USB Ports (USB3) (v1.1),USB5 (USB2.0) optional

Front Panel MIC/Line-Out Header

COM2 Header

HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers

CPU and Case Fan headers

Lan Card Wake Up/Wake Up Headers

Form Factor:

microATX (244mm*244mm), 4 Layers

BIOS:

AMI 2Mb Flash EEPROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Support ACPI revision 1.0 specification

Miscellaneous:

KM266 V-Link Host system controller and VT8235 V-Link Client to PCI/LPC bridge

KM266 V-Link Host system controller and VT8235 V-Link Client to PCI/LPC bridge

VIA VT8235 USB2.0 Host Controller

PC I/O - IT8705F

VT8233 includeded 256 byte of CMOS

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

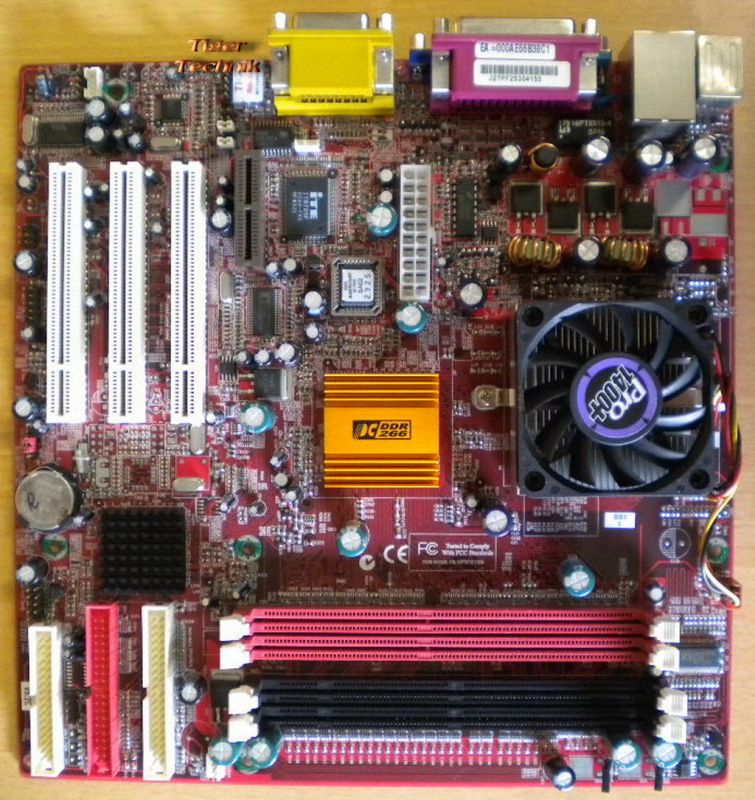

Abbildung ähnlich
