Produktbeschreibung

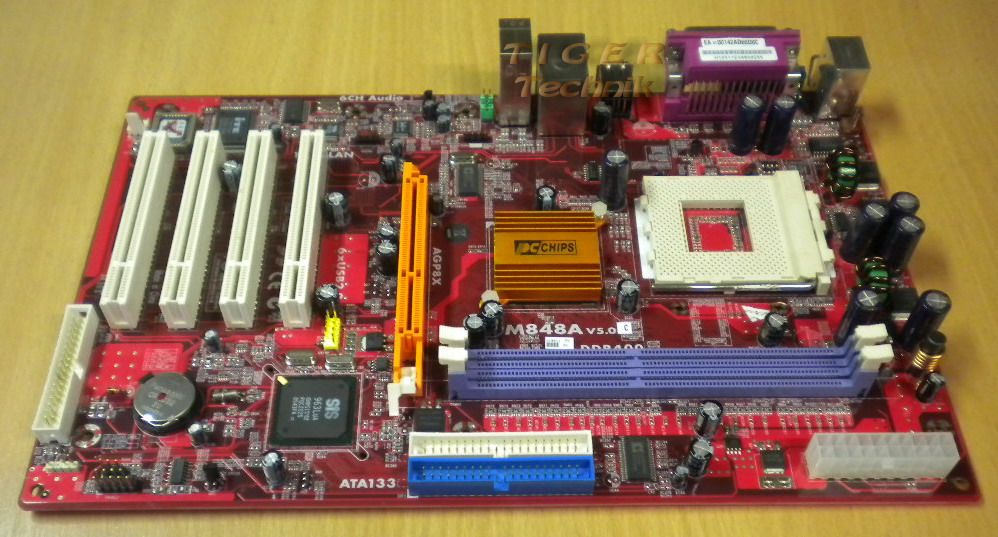

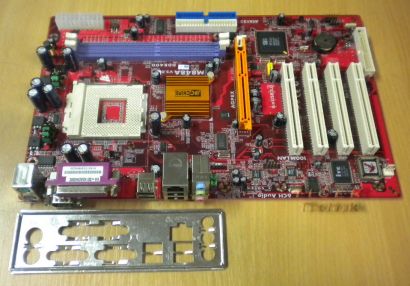

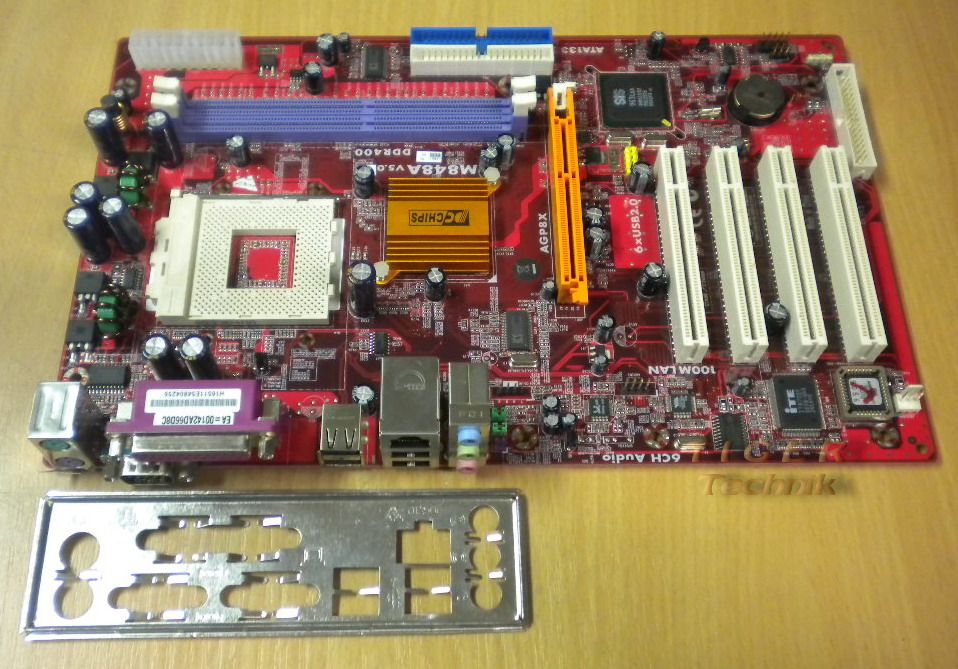

PC Chips M848A V5.0 Mainboard mit Blende
Technische Daten:
Brand
PC CHIPS
Model
M848A (V5.0)
Supported CPU
CPU Socket Type
Socket 462(A)
CPU Type
Athlon XP / Athlon / Duron / Sempron
FSB
400(OC)/333/266MHz
Chipsets
The SiS746FX features an AGP 8X bridge and a DDR400 Memory controller supporting AMD Athlon XP processors up to 333 MHz FSB (400MHz FSB max support). The SiS963L Southbridge contains an EHCI compliant USB 2.0 host controller, 2 OHCI compliant USB 1.1 host controllers, the ATA-133 dual IDE controller and AC'97 V2.2 compliant audio controller for great compatibility and connectivity.
Memory
Number of Memory Slots
2×184pin DDR
Memory Standard
DDR 400
Maximum Memory Supported
2GB
Expansion Slots
AGP Slots
The SiS746FX features a highly flexible and scalable architecture with an external AGP 8X port for optional graphics card upgrades. Providing double the bandwidth of AGP 4X, the AGP 8X video card slot produces smoother video streaming and faster, seamless gameplay.
PCI Slots
4 x PCI Slots
Storage Devices
PATA
2 x ATA100 4 Dev. Max
Onboard Audio
Audio Chipset
Realtek ALC655
Audio Channels
6 Channels
Onboard LAN
The M848A provides an VIA VT6103L onboard 10/100Mbps solution for your network or broadband connection without having to buy an extra LAN card.
Rear Panel Ports
2x PS/2
1x COM
1x LPT
4x USB 1.1/2.0
3x Audio Ports
Internal I/O Connectors
Onboard USB
2 x USB 2.0
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 7.5"
Power Pin
20 Pin
Lieferumfang
Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
