Produktbeschreibung

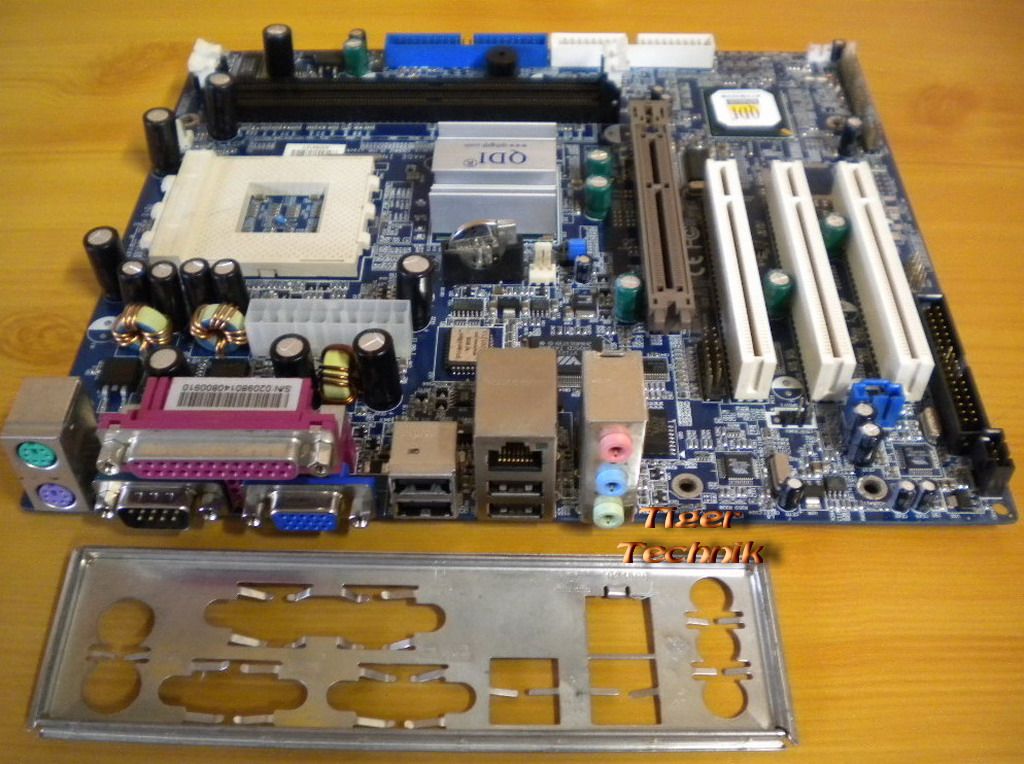

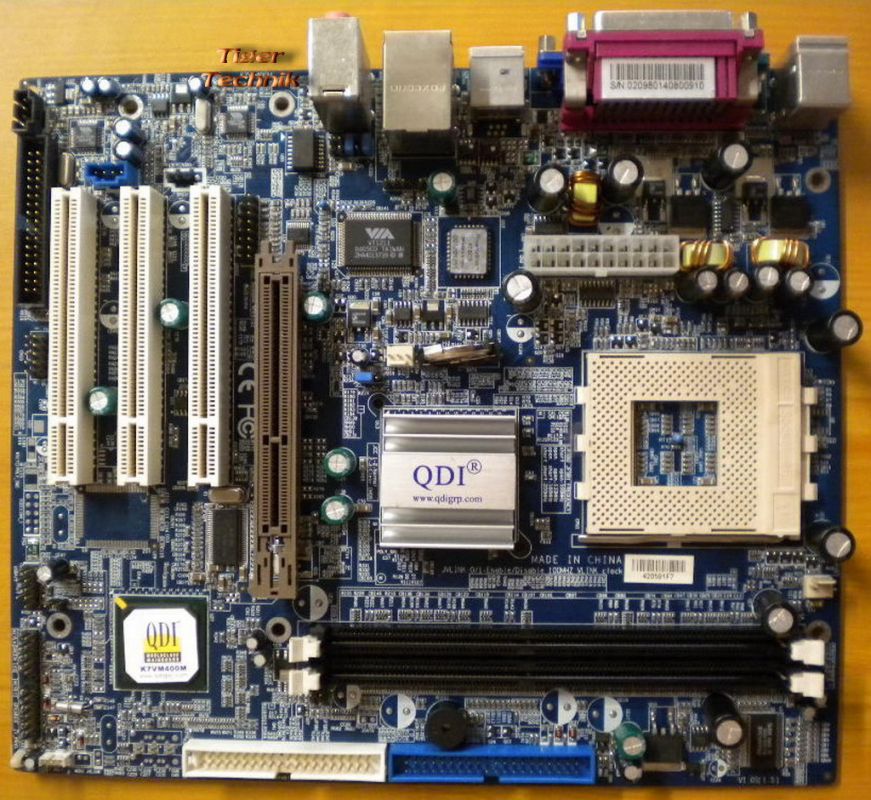

QDI K7VM400M V1.0S(1.5) Mainboard + Blende
Sockel A 462 VGA LAN Audio AGP
Technische Daten
CPU Support
Supports AMD Athlon/Athlon XP/Duron socket A processors of 200/266/333MHz host bus speed
Supports 200/266/333MHz host bus speed
Chipset
VIA KM400 + VIA 8235 or 8237
Memory
Supports DDR200/266/333 SDRAM
Supports 64/128/256/512Mb technology up to 2GB
Provides two 184-pin DDR SDRAM interfaces
Expansion Slots
3x PCI slots
1x AGP slot ( Universal AGP 8x)
IDE Storage system
Supports Independent timing of up to 4 drives
Supports Ultra ATA 33/66/100/133, PIO mode
Two fast IDE interfaces supporting four IDE devices including IDE hard disks and CD ROM drives
Onboard Audio AC’97 by VIA
Onboard I/O
One floppy port supporting up to two 3.5″ or 5.25″ floppy drives with 360K/720K/1.2M/1.44M/2.88M format
Two high speed 16550 compatible COMs with 16 byte send/receive FIFO
One parallel port supports SPP/EPP/ECP mode
Supports PS/2 mouse and PS/2 keyboard
Provides one IrDA connector
All I/O ports can be enabled/disabled in the BIOS setup
AGP Interface
Provides one standard VGA connector and integrated AGP unit
AGP connector supports AGP 3.0 including AGP 8X data transfers
Advanced features
PCI 2.2 Specification Compliant
Provides Trend ChipAwayVirus On Guard
Supports Windows 98/2000/ME/XP soft-off
Supports Wake-on-LAN and Wake-on-Modem(optional)
Supports Keyboard Password Power-on function
Universal Serial Bus
USB 2.0 compliant, operates at 480Mbps, about 40X times faster than USB 1.1 which currently works at a snails pace of just 12Mbps
Provides 6 USB 2.0 ports
Onboard LAN by VIA
10/100 Mbit/sec Ethernet support
10/100M LAN interface built-in on board
Dimensions
- mATX form factor
- 24.4 cm X 21 cm (W x L)
BIOS
Licensed advanced AWARD(Phoenix) BIOS, supports flash ROM, plug and play ready
Supports IDE CDROM/SCSI/USB boot up.
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
Herstellerangabe / Produktsicherheit
Alle unsere hier angebotenen Produkte sind erstmalig vor dem 13.12.2024 in der EU in Verkehr gebracht worden und entsprechen den aktuellen Sicherheitsstandards.
Sie unterliegen nicht den neuen Anforderungen der GPSR.
