Produktbeschreibung

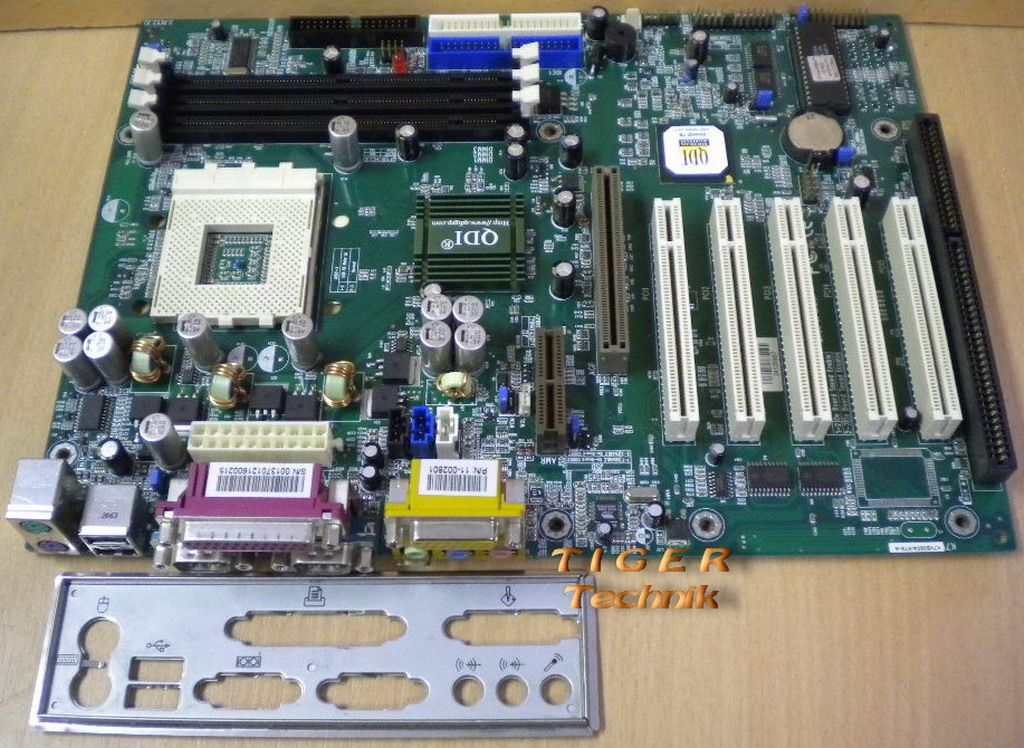

Legend QDI Kinetiz 7E Rev 2.0(S2.3) Mainboard + Blende
Sockel A/462 1x ISA 5x PCI AGP Audio
Technische Daten
CPU Support
Socket A AMD Athlon and Duron Processors
AMD Athlon Processors at 750/800/850/900/950MHz,1.1GHz and future 266MHZ FSB Athlon processor
AMD Duron Processors at 600/650/700/750/800MHz and future
Chipset (K7V8363A/K7E-A)
North bridge:VIA KT-133A
South bridge:VIA VT82C686B
FSB
Bus Speed 200/266MHz FSB
Memory
Three 168 pin 3.3V PC133 DIMM sockets
Supports up to 1.5G SDRAM
Supports 66/100/133 MHz Synchronous DRAM and VCM SDRAM And 66MHz EDO DRAM
Expansion Slots
5x PCI slots
1x AMR slot
1x AGP slot ( Universal AGP 4x)
1x ISA slot
IDE Storage system
Two PCI Master IDE ports support up to 4 IDE devices. Supports ATA 100.
Onboard AC'97 Audio AC'97 2.1 Compliant, 16-bit Stereo Codec
4 Channel Speaker out
3D Surrounding Audio
I/O
- Supports one multi-mode Parallel Port.
(1) Standard & Bidirection Parallel Port
(2) Enhanced Parallel Port (EPP).
(3) Extended Capabilities Port (ECP).
- Supports two High Speed serial ports, 16550 FAST UART.
- Supports one IrDA port support up to 115.2Kb/s transfer rate
- Supports PS/2 mouse and PS/2 keyboard.
- Supports 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy disk drivers.
- Supports LS-120 floppy disk drive and ZIP drive
Universal Serial Bus
4x USB ports (2 for I/O panel and 2 for front panel)
USB 1.1 specification compliant
Hardware Monitor Function
CPU temperature, System temperature, CPU fan speed, Chassis fan speed, 5 System Voltages
Dimensions
- ATX form factor
- 23 cm X 30.5 cm (W x L)
BIOS
BIOS 2 Mbit Flash ROM
Licensed Phoenix BIOS
Supports Plug and Play
Supports ACPI and OS directed power management
Sonstiges
Power Management ACPI V1.0 and APM compliant
Supports S0, S1, S3, S4, S5 ACPI power status
Auto adjust FAN speed in the different power status
Advanced Feature Wake up on LAN
Wake up on Modem
Trend ChipAwayVirus on Guard
QDI Innovative Technology BootEasy, RecoveryEasy, BIOS-ProtectEasy, ManageEasy, LogoEasy
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
