Produktbeschreibung

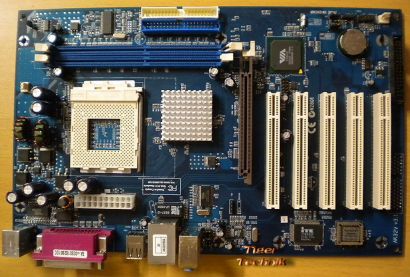

Shuttle AK32V v3.1 Mainboard + Blende
Technische Daten
Processor
AMD Athlon XP / Athlon / Duron in the 462 pin package with 200/266 MHz FSB
Chipsets
VIA KT266A+VT8235
Support AMD Athlon XP/Athlon/Duron System bus
Support DDR200/266 DDR SDRAM interface
USB2.0
Onboard EHCI high-speed USB 2.0 controller built in VIA 8235 to support 6 functional USB 2.0 ports
Memory
2x 184 pin DDR SDRAM DIMM slots
Support PC1600/2100 compliant DDR SDRAM, up to 2GB capacity
AGP slot
Support AGP 1.0/2.0, 3.3V/1.5V, 2X/4X mode slot
PCI slot
5x 32bit/33MHz PCI slots
Fast Ethernet
On board VIA VT6103 PHY supports 10/100 Mb/s operation
Audio
Onboard AC97 two channel audio
I/O Interface
2x UltraDMA/133 Bus Master IDE Ports from VT8235
1x FDD port
1x PS/2 Keyboard Port
1x PS/2 Mouse Port
6x USB2.0 Ports (4 ports are in back panel)
1x Serial Port
1x Parallel Port (SPP, EPP, ECP)
1x Line in, 1x Line out, 1x Mic
Front panel Line-out/Mic-in header
1x Lan port
BIOS
Award PnP BIOS
Stored in 2 Mb flash memory
Bootable from Floppy, ATAPI device, USB device, SCSI device
Form Factor
ATX (305x190mm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
