ASRock K10N78FullHD-hSLI Rev 3.12 Mainboard+Blende Sockel AM2+ VGA DVI PCIe*m795

ASRock K10N78FullHD-hSLI Rev 3.12 Mainboard + Blende Sockel AM2+ VGA DVI GBLAN PCIe

Technische Daten

CPU

Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor

AMD LIVE!™ Ready

Supports AMD's Cool 'n' Quiet Technology

FSB 2600 MHz (5.2 GT/s)

Supports Untied Overclocking Technology

Supports Hyper-Transport 3.0 (HT 3.0) Technology

AM3 CPU Ready (Achtung! Vorher Bios-Update ab Version P1.60 nötig!)

Chipset

NVIDIA® GeForce 8200

Memory

Dual Channel DDR2 memory technology

4 x DDR2 DIMM slots

Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory

Max. capacity of system memory: 16GB**

*Support with AM3 / AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS

4Mb AMI BIOS

AMI Legal BIOS

Supports "Plug and Play"

ACPI 1.1 Compliance Wake Up Events

Supports Jumperfree

SMBIOS 2.3.1 Support

Graphics

Integrated NVIDIA® GeForce8 Series

DX10 VGA, Pixel Shader 4.0

Max. shared memory 512MB

Two graphics output options: Support DVI-D and D-Sub ports by independent display controllers

Supports DVI with max. resolution up to 1920x1200 @ 75Hz

Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz

Supports HDCP function with DVI-D port

Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port

NVIDIA® PureVideo™ HD Ready

Audio

5.1 CH Windows® Vista™ Premium Level HD Audio (Realtek ALC662 Audio Codec)

Chipset embedded HDMI Audio

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY RTL8211B

Supports Wake-On-LAN

Supports PXE

Slots

1 x PCI Express 2.0 x16 slot (green @ x16 mode)

1 x PCI Express x1 slot

2 x PCI slots

Supports NVIDIA® Hybrid SLI™

Connector

6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, AHCI and Hot Plug functions

1 x ATA133 IDE connector (supports 2 x IDE devices)

1 x Floppy connector

1 x DeskExpress Hot Plug Detection header

1 x COM port header

1 x HDMI_SPDIF header

CPU/Chassis FAN connector

24 pin ATX power connector

4 pin 12V power connector

CD in header

Front panel audio connector

2 x USB 2.0 headers (support 4 USB 2.0 ports)

1 x WiFi/E header

Rear Panel I/O

ASRock 6CH_DVI I/O Plus

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x VGA/D-Sub Port

1 x VGA/DVI-D Port

6 x Ready-to-Use USB 2.0 Ports

1 x RJ-45 Port

HD Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

ASRock OC Tuner

Intelligent Energy Saver (Support with Phenom CPU)

Instant Boot

Hybrid Booster:

CPU Frequency Stepless Control

ASRock U-COP

Boot Failure Guard (B.F.G.)

ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%

Hardware Monitor

CPU Temperature Sensing

Chassis Temperature Sensing

CPU Fan Tachometer

Chassis Fan Tachometer

CPU Quiet Fan

Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant

Certifications

FCC, CE

Lieferumfang

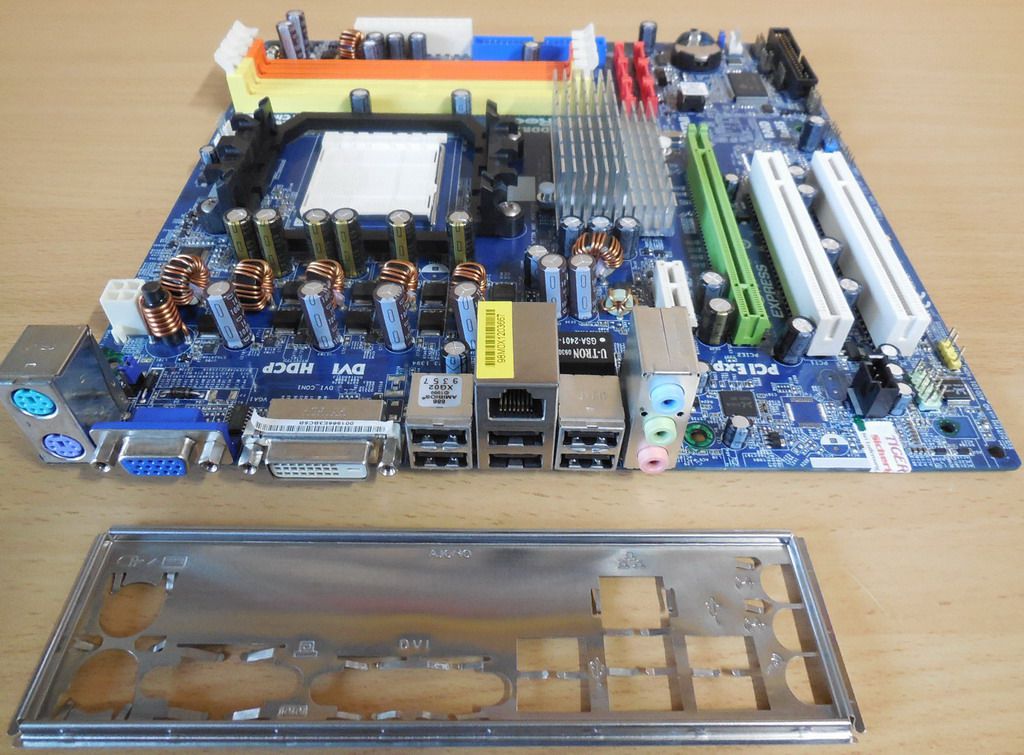

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
