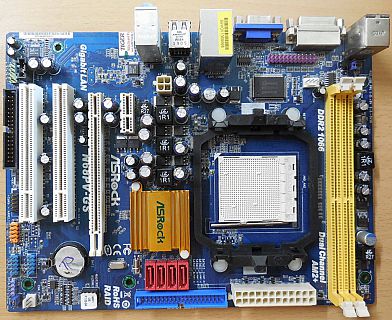

ASRock N68PV-GS Rev1.02 Mainboard +Blende Sockel AM2+ AM2 VGA DVI DDR2 1066*m932

ASRock N68PV-GS Rev 1.02 Mainboard + Blende Sockel AM2+ AM2 VGA DVI DDR2 1066

Technische Daten

CPU

Support up to 95W Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor

Supports AMD's Cool 'n' Quiet Technology

FSB 1000MHz (2.0 GT/s)

Supports Untied Overclocking Technology

Supports Hyper-Transport Technology

AM3 CPU Ready*

*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.

For more information, please refer to the "CPU Support List"

Chipset

NVIDIA® GeForce 7050 / nForce 630A MCP

Memory

Dual Channel DDR2 memory technology

2 x DDR2 DIMM slots

Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory

Max. capacity of system memory: 8GB

*Support with AM3 / AM2+ CPU.

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

4Mb AMI Legal BIOS

Supports "Plug and Play", jumperfree, Smart BIOS

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

Graphics

Integrated NVIDIA® GeForce7 Series (NV44)

DX9.0 VGA, Pixel Shader 3.0

Max. shared memory 256MB

Two graphics output options: Support DVI-D and D-Sub ports by independent display controllers

Supports DVI with max. resolution up to 1920x1200 @ 75Hz

Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz

Supports HDCP function with DVI-D port

Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port

NVIDIA® PureVideo™ Ready

Audio

5.1 CH Windows® Vista™ Premium Level HD Audio (ALC662 Audio Codec)

Chipset embedded HDMI Audio

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Realtek RTL8211CL

Supports Wake-On-LAN, PXE

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Connector

4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ, AHCI and Hot Plug functions (does not support RAID with HDDs of 3TB and above)

1 x ATA133 IDE connector (supports 2 x IDE devices)

1 x Floppy connector

1 x COM port header

1 x LPT1 Print port header

1 x CPU (4-pin) connector

1 x Chassis FAN (3-pin) connector

1 x CD in header

1 x Front Audio Panel connector

1 x Front System Panel connector

1 x Internal Speaker connector

2 x USB 2.0 headers (support 4 USB 2.0 ports)

1 x 24 pin ATX power connector

1 x 4 pin 12V power connector

Rear Panel I/O

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x VGA/D-Sub Port

1 x VGA/DVI-D Port

4 x Ready-to-Use USB 2.0 Ports

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

ASRock OC Tuner, Intelligent Energy Saver, Instant Boot

Hybrid Booster:

CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.), ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%

Hardware Monitor

CPU Temperature Sensing, Chassis Temperature Sensing, CPU Fan Tachometer, Chassis Fan Tachometer, CPU Quiet Fan, Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro-ATX   9.6-in x 7.2-in   (24.4 cm x 18.3 cm)

OS

Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit / 2000 compliant

Certifications

FCC, CE

Lieferumfang

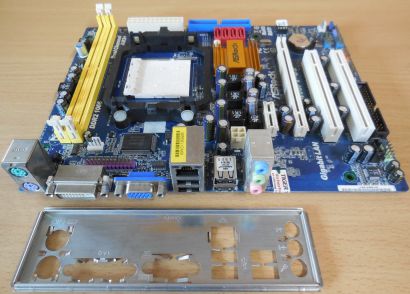

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
